FRAME

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

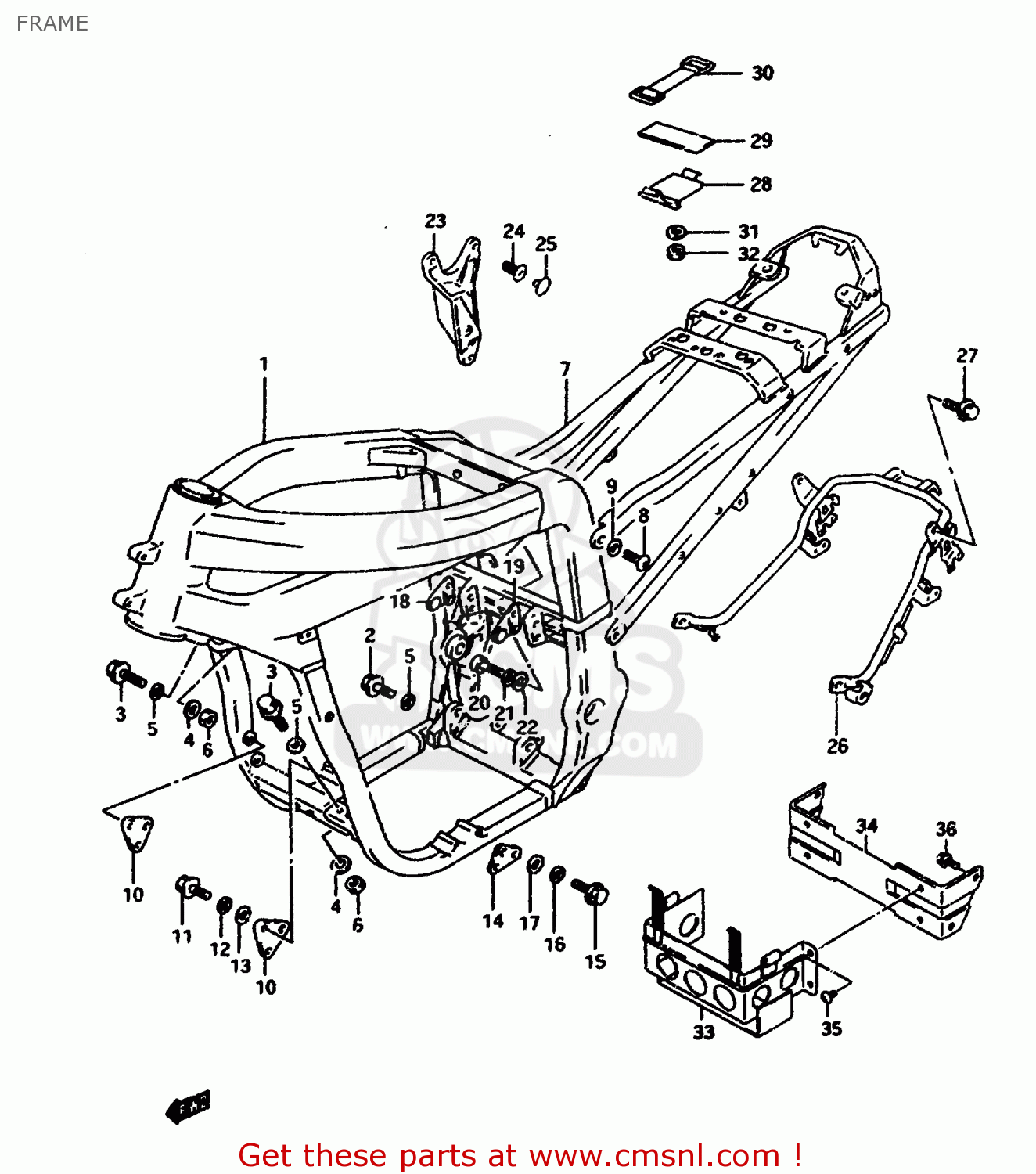

Frame diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRAME GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FRAME GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FRAME GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
4110046820
ref: 1-1
MODEL P
FRAME SET
€ 5,551.00
1-2
4110046830
ref: 1-2
MODEL P E18, MODEL R
FRAME SET
€ 5,551.00
1-3
4110046840
ref: 1-3
MODEL S/T/V
FRAME SET
4110046840
€ 3,499.50
2-1
0151710308
ref: 2-1
MODEL P/R
BOLT
0151710308
€ 3.50
2-2
0155010307
ref: 2-2
MODEL S/T/V
BOLT
0155010307
€ 3.50
3-1
0910310284
ref: 3-1
MODEL P/R
BOLT(10X45)
0910310284
€ 5.00
3-2
0155010453
ref: 3-2
MODEL S/T/V
BOLT
0155010453
€ 3.00
4
0916010013
ref: 4
WASHER (10.1X21X2.3)
0916010013
€ 2.00
5
0916410005
ref: 5
MODEL P/R
WASHER
0916410005
€ 6.50
6
0915910027
ref: 6
NUT
0915910027
€ 3.00
7-1
4120046E00
ref: 7-1
MODEL P/R
RAIL,SEAT
€ 1,346.50
7-2
4120046E20
ref: 7-2
MODEL S/T/V
RAIL,SEAT
€ 1,065.50
8
4352917D00
ref: 8
BOLT,FOOTREST BRACKET
4352917D00
€ 5.50
9-1
0916410010
ref: 9-1
MODEL P/R/S
WASHER
0916410010
€ 6.50
9-2
0916410005
ref: 9-2
MODEL T
WASHER
0916410005
€ 6.50
9-3
0916410010
ref: 9-3
MODEL V
WASHER
0916410010
€ 6.50
10
4191117E00
ref: 10
PLATE,ENG MTG NO.1
€ 27.00
11
0910308255
ref: 11
BOLT
€ 2.50
12-1
0832101087
ref: 12-1
MODEL P/R
WASHER,LOCK
0832101087
€ 2.00
12-2
0832101083
ref: 12-2
MODEL S/T/V
LOCK WASHER
0832101083
€ 2.50
13
0916008010
ref: 13
WASHER (8.2X20X1.6)
0916008010
€ 1.50
14-1
4192117E00
ref: 14-1
PLATE,ENGINE MOUNTING
€ 8.50
14-2
4193117E00
ref: 14-2
PLATE,ENG MTG NO.2,R
4193117E00
€ 8.00
15
0910308255
ref: 15
BOLT
€ 2.50
16-1
0832101087
ref: 16-1
MODEL P/R
WASHER,LOCK
0832101087
€ 2.00
16-2
0832101083
ref: 16-2
MODEL S/T/V
LOCK WASHER
0832101083
€ 2.50
17
0916008010
ref: 17
WASHER (8.2X20X1.6)
0916008010
€ 1.50
18
4194017E00
ref: 18
PLATE,ENGINE MOUNTING NO.3
4194017E00
€ 14.50
19
4195017E00
ref: 19
PLATE,ENG MTG NO.3,L
4195017E00
€ 16.00
20
0910608005
ref: 20
BOLT(8X22)
0910608005
€ 2.00
21-1
0832101087
ref: 21-1
MODEL P/R
WASHER,LOCK
0832101087
€ 2.00
21-2
0832101083
ref: 21-2
MODEL S/T/V
LOCK WASHER
0832101083
€ 2.50
22
0916008010
ref: 22
WASHER (8.2X20X1.6)
0916008010
€ 1.50
23-1
4196146E20
ref: 23-1
MODEL S/T/V
PLATE,ENGINE MOUNTING,UPPER,RIGHT
4196146E20
€ 104.00
23-2
4197146E20
ref: 23-2
MODEL S/T/V
PLATE,ENG MTG UPR,L
4197146E20
€ 520.00
24
0910608129
ref: 24
MODEL S/T/V
BOLT(8X25)
0910608129
€ 5.00
25
0925005009
ref: 25
MODLE S/T/V
CAP(OD:10)
0925005009
€ 2.50
26-1
4398046E00
ref: 26-1
MODEL P/R
GRIP COMP,REAR
€ 146.50
26-2
4398046E01
ref: 26-2
MODEL S/T/V
GRIP,RR
€ 146.50
26-3
4398046E10
ref: 26-3
E39,MODEL P/R
GRIP,REAR
€ 0.00
26-4
4398046E11
ref: 26-4
E39,MODEL S/T/V
GRIP,RR
€ 0.00
27-1
0155008207
ref: 27-1
MODEL P/R
BOLT
0155008207
€ 3.00
27-2
0155008203
ref: 27-2
MODEL S/T/V
BOLT
0155008203
€ 3.00
28-1
4155049200
ref: 28-1
MODEL P/R/S
HOLDER,TOOL
€ 10.00
28-2
4155049201
ref: 28-2
MODEL T/V
HOLDER,TOOL
4155049201
€ 10.00
29
3692002200
ref: 29
COVER,HARNESS
3692002200
€ 3.00
30
0946200034
ref: 30
BAND
0946200034
€ 4.50
31
0916006006
ref: 31
WASHER
0916006006
€ 2.00
32-1
0831931063
ref: 32-1
MODEL P/R
NUT
0831931063
€ 2.50
32-2
0915906058
ref: 32-2
MODEL S
NUT
€ 2.50
32-3
0915906078
ref: 32-3
MODEL T/V
NUT
€ 2.50
33-1
4154017E10
ref: 33-1
MODEL P/R
HOLDER COMP,BATTERY
€ 69.50
33-2
4154017E50
ref: 33-2
MODEL S
HOLDER,BATTERY
€ 65.00
33-3
4154017E61
ref: 33-3
MODEL T/V
HOLDER,BATTERY
€ 65.00
34-1
4156017E00
ref: 34-1
MODEL P/R
BRACKET,BATTERY HOLDER
€ 39.00
34-2
4156017E50
ref: 34-2
MODEL S/T/V
BRACKET COMP,BATTERY HOLDER
€ 32.50
35-1
0214206127
ref: 35-1
MODEL P/R
SCREW 6X12
0214206127
€ 1.50
35-2
0214206123
ref: 35-2
MODEL S/T/V
SCREW 6X12
0214206123
€ 2.00
36-1
0155006167
ref: 36-1
MODEL P/R
BOLT
0155006167
€ 1.50
36-2
0155006163
ref: 36-2
MODEL S/T/V
BOLT
0155006163
€ 2.50
