CLUTCH (MODEL (S/T/V)

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

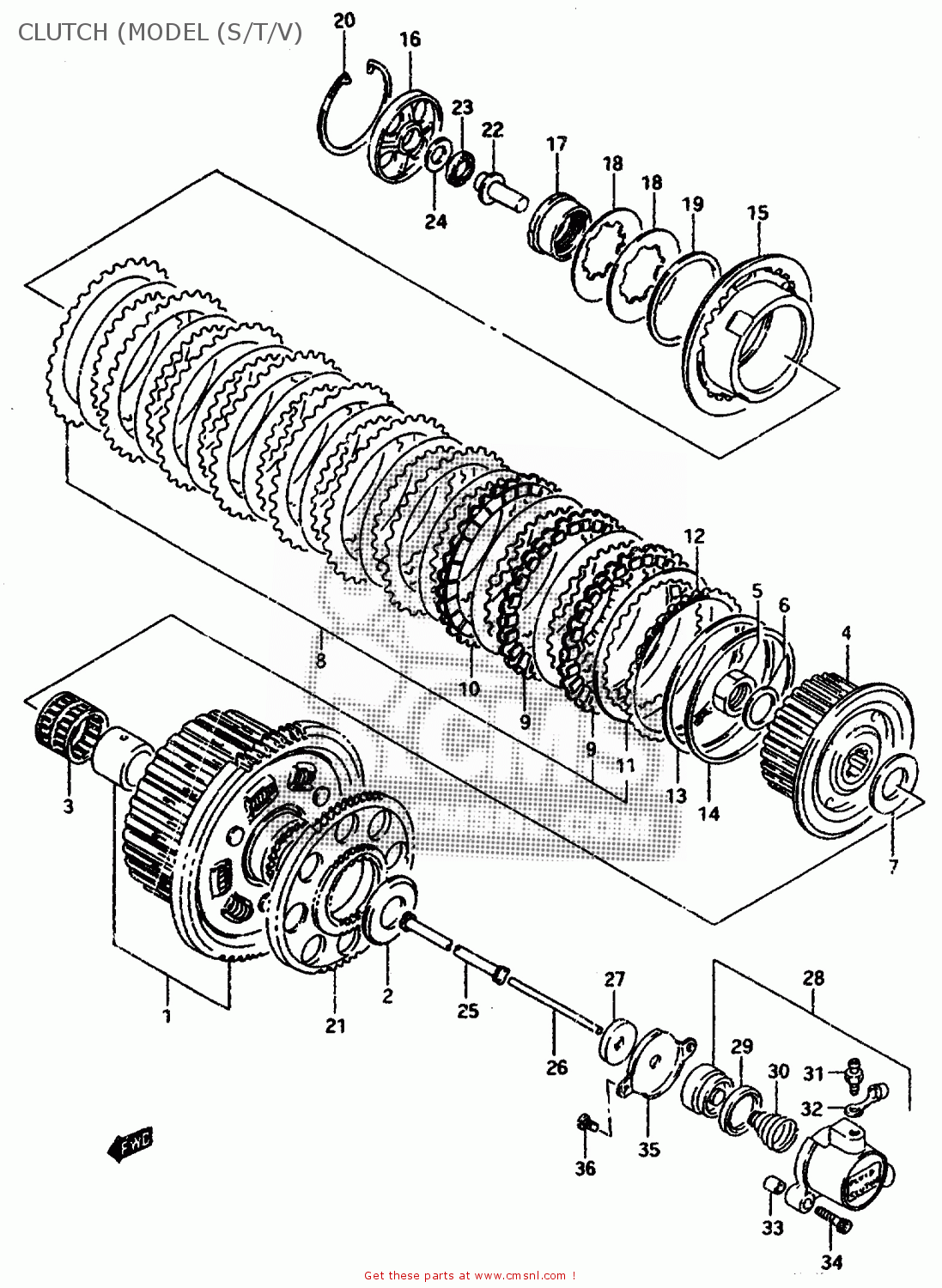

Clutch (model (s/t/v) diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CLUTCH (MODEL (S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CLUTCH (MODEL (S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CLUTCH (MODEL (S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
2120040840
ref: 1
GEAR SET,PRIMARY DRIVE
€ 317.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141046E00
ref: 4
HUB,CLUTCH SLEEVE
2141046E00
€ 173.00
5
0915924008
ref: 5
NUT
0915924008
€ 10.50
6
0916424006
ref: 6
WASHER
0916424006
€ 4.00
7
0916025056
ref: 7
WASHER(25X50X2.5)
0916025056
€ 9.50
8
2140040C01
ref: 8
PLATE ASSY,CLUTCH
2140040C01
€ 222.50
9
2144148B10
ref: 9
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144148B10
€ 15.50
10
2144148B00
ref: 10
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144148B00
€ 18.00
11
2145148B00
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
2145148B00
€ 10.50
12
2144246E00
ref: 12
PLATE,CLUTCH DRIVE NO.2
2144246E00
€ 17.50
13
0916400007
ref: 13
WASHER
0916400007
€ 13.00
14
2147140C01
ref: 14
SEAT,CL SLEEVE HUB WAVE WASHER
2147140C01
€ 15.00
15
2146240C02
ref: 15
DISC,CLUTCH PRESSURE
2146240C02
€ 134.50
16
2146340C01
ref: 16
LIFTER,CLUTCH PRESSURE DISC
2146340C01
€ 33.00
17
2161140C01
ref: 17
HOLDER,CLUTCH SPRING
2161140C01
€ 162.00
18
0916447001
ref: 18
WASHER
0916447001
€ 9.00
19
2162340C00
ref: 19
SEAT,CLUTCH SPRING
2162340C00
€ 9.00
20
0938184002
ref: 20
CIRCLIP
0938184002
€ 10.50
21
2272121E01
ref: 21
GEAR,GENERATOR DRIVE
€ 192.50
22
2312107A00
ref: 22
PIECE,CLUTCH PUSH
2312107A00
€ 18.50
23
0926315003
ref: 23
BEARING(15X28X2)
0926315003
€ 7.00
24
0916015045
ref: 24
WASHER(15.5X28X1)
0916015045
€ 4.00
25
2311027A00
ref: 25
ROD,CLUTCH
2311027A00
€ 17.00
26
2311124A01
ref: 26
ROD,CLUTCH PUSH,L
2311124A01
€ 15.00
27
0928506015
ref: 27
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
28
2316006B02
ref: 28
CYLINDER,CLUTCH RELEASE
2316006B02
€ 122.50
29
2316306B00
ref: 29
CUP
2316306B00
€ 5.50
30
2316405A00
ref: 30
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
31
5912101A00
ref: 31
BLEEDER
5912101A00
€ 8.50
32
5912201A00
ref: 32
CAP,BLEEDER
5912201A00
€ 4.50
33
0421109129
ref: 33
PIN
0421109129
€ 2.00
34
0713006253
ref: 34
BOLT,CL.COVER
0713006253
€ 3.00
35
2311746E00
ref: 35
COVER,CLUTCH RELEASE CYLINDER
2311746E00
€ 6.50
36
0211206103
ref: 36
SCREW
0211206103
€ 1.50
33-1
0713006255
ref: 33-1
MODEL P
BOLT
0713006255
€ 3.00
33-2
0713006253
ref: 33-2
MODEL R
BOLT,CL.COVER
0713006253
€ 3.00
34
2311746E00
ref: 34
COVER,CLUTCH RELEASE CYLINDER
2311746E00
€ 6.50
35
0211206103
ref: 35
SCREW
0211206103
€ 1.50
