COWLING BODY (MODEL V)

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

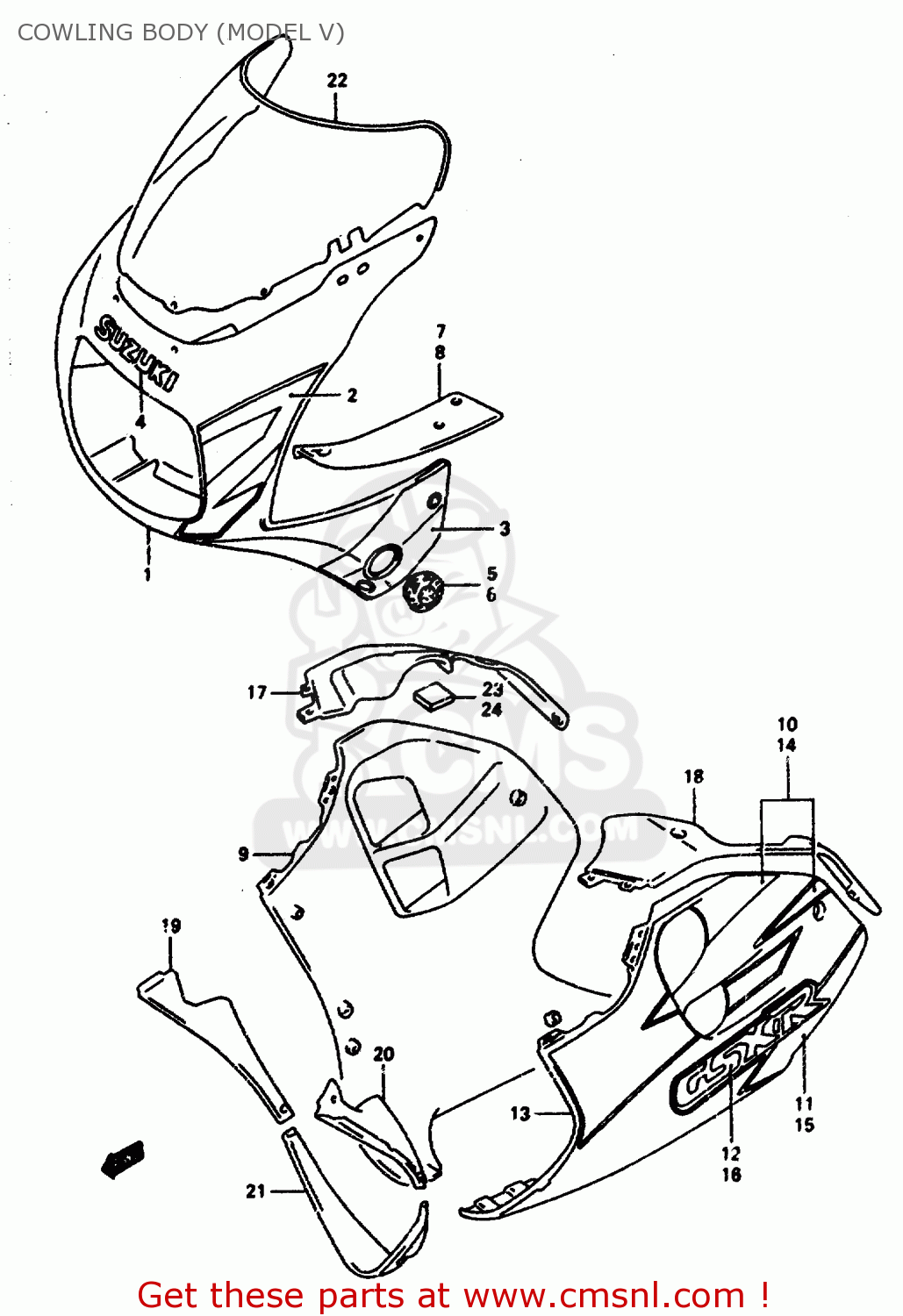

Cowling body (model v) diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (MODEL V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
COWLING BODY (MODEL V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
COWLING BODY (MODEL V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
9440046E700JW
ref: 1-1
FOR G4V
COWLING ASSY,BODY
€ 534.50
1-2
9440046E7033J
ref: 1-2
FOR G2P
COWLING ASSY,BODY
€ 0.00
2-1
6827046E30G6T
ref: 2-1
FOR 0JW
TAPE SET,BODY COWL FR
€ 0.00
2-2
6827046E30G6U
ref: 2-2
FOR 33J
TAPE SET,BODY COWLING,FRONT
€ 0.00
3-1
6828046E30G6V
ref: 3-1
FOR 0JW
TAPE SET,BODY COWLING SIDE
€ 0.00
3-2
6828046E30G6W
ref: 3-2
FOR 33J
TAPE SET,BODY COWLING SIDE
€ 0.00
4-1
6818505C1020G
ref: 4-1
FOR 0JW
EMBLEM,COWLING BODY(GRAY)
6818505C1020G
€ 9.50
4-2
6818505C100AT
ref: 4-2
FOR 33J
EMBLEM,BODY COWL
€ 0.00
5
9441617E21
ref: 5
PLATE,TURN SIGNAL,RIGHT
€ 12.50
6
9441717E21
ref: 6
PLATE,TURNSIGNAL LAMP,L
9441717E21
€ 12.50
7
9441517E21
ref: 7
PANEL,COWLING UPR,R
9441517E21
€ 16.00
8
9442517E21
ref: 8
PANEL,COWLING UPR,L
9442517E21
€ 16.00
9-1
9440746E70Y0P
ref: 9-1
FOR G4V
COWLING ASSY,UNDER,R
€ 645.00
9-2
9440746E7022U
ref: 9-2
FOR G2P
COWLING ASSY,UNDER,R
€ 690.50
10-1
6818546E20G4V
ref: 10-1
FOR Y0P
TAPE,COWL UNDER,R
€ 0.00
10-2
6818546E20G2P
ref: 10-2
FOR 22U
TAPE,COWL UNDER,R
€ 0.00
11-1
6818046E70G6T
ref: 11-1
FOR Y0P
TAPE SET,COWL UNDER,R
€ 0.00
11-2
6818046E70G6U
ref: 11-2
FOR 22U
TAPE SET,COWL UNDER,R
€ 0.00
12-1
6818146E30G6R
ref: 12-1
FOR Y0P
EMBLEM,COWLING UNDER
€ 36.00
12-2
6818146E30G6S
ref: 12-2
FOR 22U
EMBLEM,COWLING UNDER
€ 0.00
13-1
9440846E70Y0P
ref: 13-1
FOR G4V
COWLING ASSEMBLY,UNDER,LEFT
€ 0.00
13-2
9440846E7022U
ref: 13-2
FOR G2P
COWLING ASSY,UNDER,L
€ 0.00
14-1
6819546E20G4V
ref: 14-1
FOR Y0P
TAPE,COWL UNDER,L
€ 0.00
14-2
6819546E20G2P
ref: 14-2
FOR 22U
TAPE,COWL UNDER,L
€ 0.00
15-1
6819046E70G6T
ref: 15-1
FOR Y0P
TAPE SET,COWL UNDER,L
€ 0.00
15-2
6819046E70G6U
ref: 15-2
FOR 22U
TAPE SET,COWL UNDER,L
€ 0.00
16-1
6818146E30G6R
ref: 16-1
FOR Y0P
EMBLEM,COWLING UNDER
€ 36.00
16-2
6818146E30G6S
ref: 16-2
FOR 22U
EMBLEM,COWLING UNDER
€ 0.00
17
9441646E20
ref: 17
PANEL,LWR,R
9441646E20
€ 43.50
18
9442646E20
ref: 18
PANEL,LWR,L
9442646E20
€ 40.50
19
9446146E00019
ref: 19
COWLING,UNDER INNER,R
9446146E00019
€ 19.50
20
9446246E00019
ref: 20
COWLING,UNDER INNER,L
9446246E00019
€ 19.50
21
9449846E00019
ref: 21
COWLING,UNDER CTR
9449846E00019
€ 50.50
22
9461046E20
ref: 22
SCREEN SET,WINDOW
€ 212.50
23
9447548B10
ref: 23
60X60
CUSHION,UNDER COWLING
9447548B10
€ 6.50
24
6137408010
ref: 24
CUT 50X23
CUSHION,CHAIN CASE
€ 4.00
23-1
9447548B10
ref: 23-1
60X60
CUSHION,UNDER COWLING
9447548B10
€ 6.50
23-2
6137408010
ref: 23-2
CUT 50X23
CUSHION,CHAIN CASE
€ 4.00
20-2
6137408010
ref: 20-2
REAR CAT 30X25
CUSHION,CHAIN CASE
€ 4.00
