Buy Suzuki GSXR Parts Online


CRANKCASE COVER

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

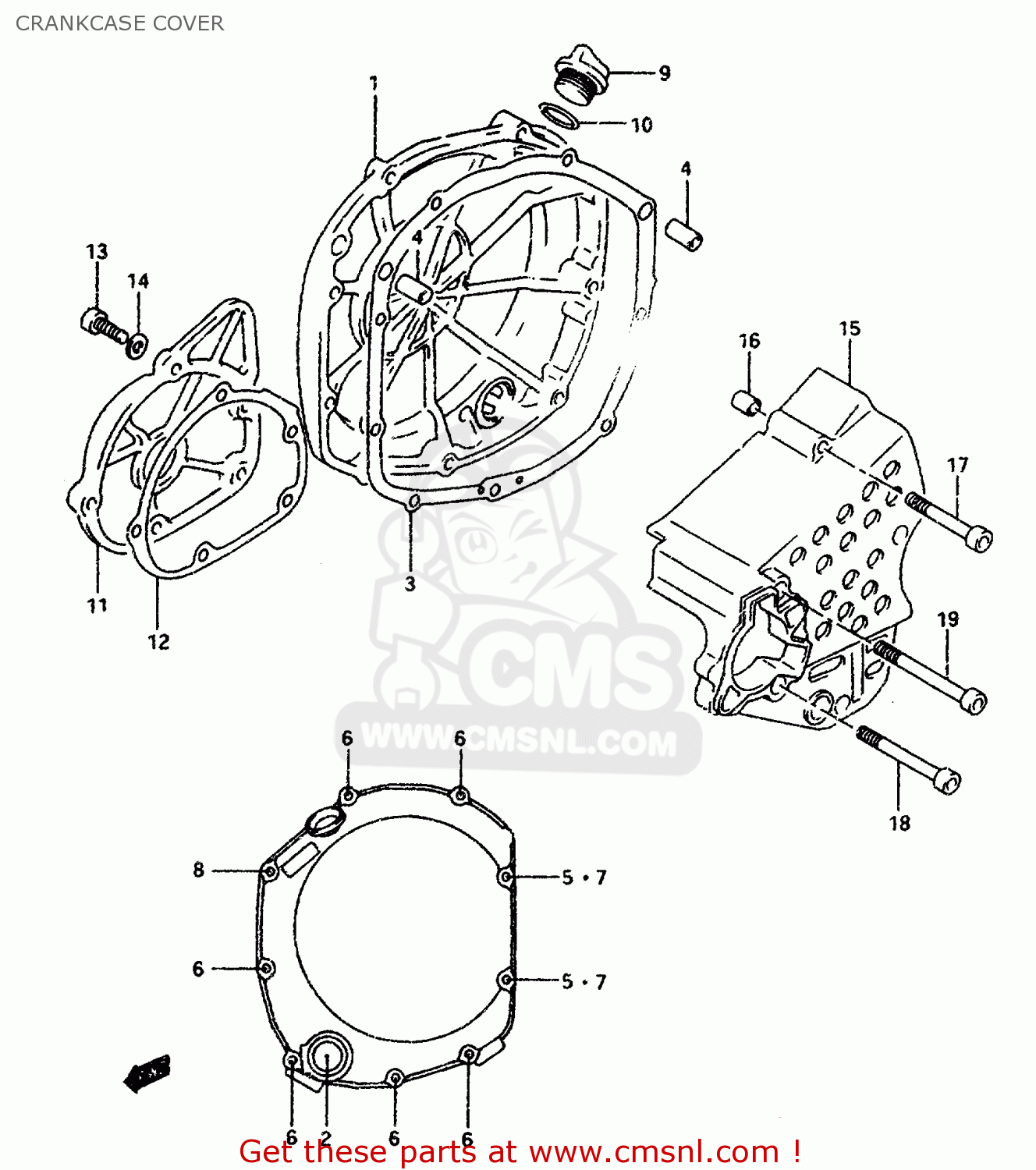

Crankcase cover diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKCASE COVER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKCASE COVER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKCASE COVER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1134046E00
ref: 1-1
MODEL P/R
COVER,CLUTCH
€ 151.50
1-2
1134031E01
ref: 1-2
MODEL S/T/V
COVER,CLUTCH
1134031E01
€ 151.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148217E00
ref: 3
GASKET,CL COVER (NAS)
1148217E00
€ 33.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6-1
0713006255
ref: 6-1
MODEL P
BOLT
0713006255
€ 3.00
6-2
0713006253
ref: 6-2
MODEL R/S/T/V
BOLT,CL.COVER
0713006253
€ 3.00
7-1
0711006305
ref: 7-1
MODEL P
BOLT
0711006305
€ 3.00
7-2
0713006303
ref: 7-2
MODEL R/S/T/V
BOLT
0713006303
€ 3.00
8-1
0713006355
ref: 8-1
MODEL P
BOLT
€ 3.50
8-2
0713006353
ref: 8-2
MODEL R/S/T/V
BOLT
€ 3.50
9-1
0925920012
ref: 9-1
~E.NO.111149
PLUG
0925920012
€ 6.50
9-2
0925920008
ref: 9-2
E.NO.111150~
PLUG
0925920008
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11-1
1138117E00
ref: 11-1
MODEL P
CAP
1138117E00
€ 80.50
11-2
1138131E00
ref: 11-2
MODEL R/S/T/V
COVER,SIGNAL GENERATOR
1138131E00
€ 80.50
12
1149117E01
ref: 12
GASKET,SIGNAL GEN COVER
1149117E01
€ 20.50
13-1
0910606059
ref: 13-1
MODEL P
BOLT
0910606059
€ 3.00
13-2
0910606082
ref: 13-2
MODEL R/S/T/V
BOLT(6X22)
0910606082
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15-1
1136146E00
ref: 15-1
MODEL P/R
COVER,ENGINE SPROCKET
1136146E00
€ 158.00
15-2
1136146E10
ref: 15-2
MODEL S/T/V
COVER,ENGINE SPROCKET
1136146E10
€ 124.00
16
0421109129
ref: 16
PIN
0421109129
€ 2.00
17-1
0711006555
ref: 17-1
MODEL P
BOLT
€ 2.50
17-2
0713006553
ref: 17-2
MODEL R/S/T/V
BOLT
0713006553
€ 2.50
18-1
0711006705
ref: 18-1
MODEL P
BOLT
€ 4.00
18-2
0713006703
ref: 18-2
MODEL R
BOLT
0713006703
€ 4.00
18-3
0713006703
ref: 18-3
MODEL S/T/V
BOLT
0713006703
€ 4.00
19-1
0711006805
ref: 19-1
MODEL P
BOLT
€ 3.00
19-2
0713006803
ref: 19-2
MODEL R/S/T/V
BOLT
0713006803
€ 3.00
