CLUTCH

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

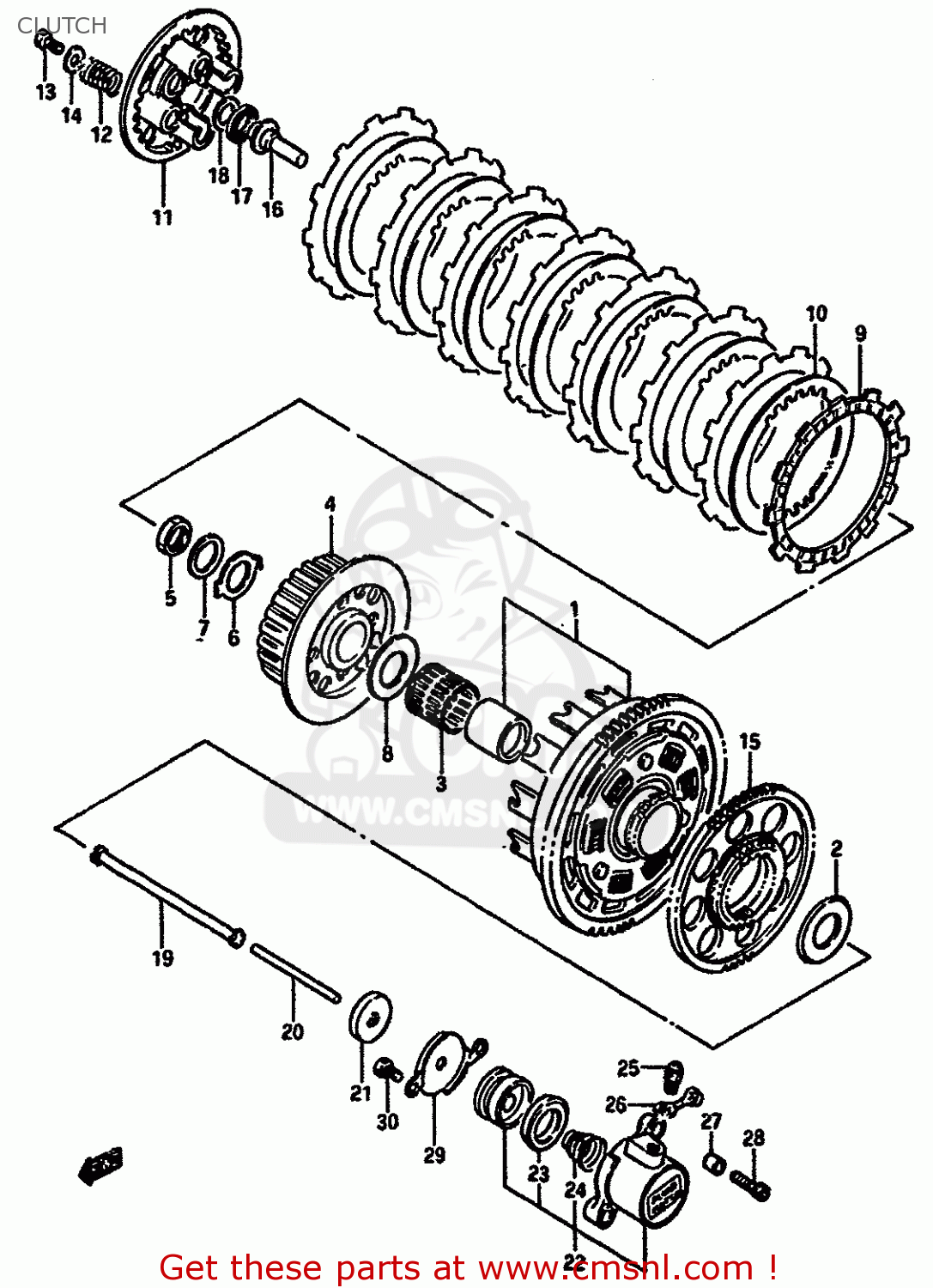

Clutch diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CLUTCH GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CLUTCH GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
2120027821
ref: 1-1
~E.NO.114829
GEAR,PRIMARY DRIVEN (NT:75)
2120027821
€ 281.00
1-2
2120027822
ref: 1-2
E.NO.114830~
GEAR ASSEMBLY,PRIMARY DRIVE
2120027822
€ 281.00
2
0916025062
ref: 2
WASHER
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141027A02
ref: 4
HUB,CLUTCH SLEEVE
2141027A02
€ 134.50
5
0914022008
ref: 5
NUT
0914022008
€ 4.50
6
0916922005
ref: 6
WASHER
0916922005
€ 3.00
7
0916422006
ref: 7
WASHER
0916422006
€ 5.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
0916025056
€ 9.50
9
2144137400
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144137400
€ 20.50
10
2145105A00
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 9.00
11
2146227A00
ref: 11
DISC,CLUTCH PRESSURE
2146227A00
€ 37.00
12
0944020010
ref: 12
SPRING
0944020010
€ 5.00
13
0110706166
ref: 13
BOLT
€ 2.00
14
0916006020
ref: 14
WASHER
0916006020
€ 2.00
15
2272127A01
ref: 15
GEAR,GENERATOR DRIVE
2272127A01
€ 230.00
16
2312127A00
ref: 16
PIECE,CLUTCH PUSH
2312127A00
€ 21.50
17
0926315003
ref: 17
BEARING(15X28X2)
0926315003
€ 7.00
18
0916015015
ref: 18
WASHER
€ 4.00
19
2311027A00
ref: 19
ROD,CLUTCH
2311027A00
€ 17.00
20
2311115501
ref: 20
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
21
0928506015
ref: 21
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
22
2316008A01
ref: 22
CYLINDER,CLUTCH RELEASE
€ 129.00
23
2316305A00
ref: 23
CUP,CLUTCH CYLINDER
2316305A00
€ 7.50
24
2316405A00
ref: 24
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
25
5912101A00
ref: 25
BLEEDER
5912101A00
€ 8.50
26
5912201A00
ref: 26
CAP,BLEEDER
5912201A00
€ 4.50
27
0421109129
ref: 27
PIN
0421109129
€ 2.00
28
0711006255
ref: 28
BOLT
0711006255
€ 3.00
29
2311727A02
ref: 29
PLATE,CLUTCH PUSH ROD
€ 6.50
30
0211206106
ref: 30
SCREW
€ 1.50
