SEAT (MODEL G)

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

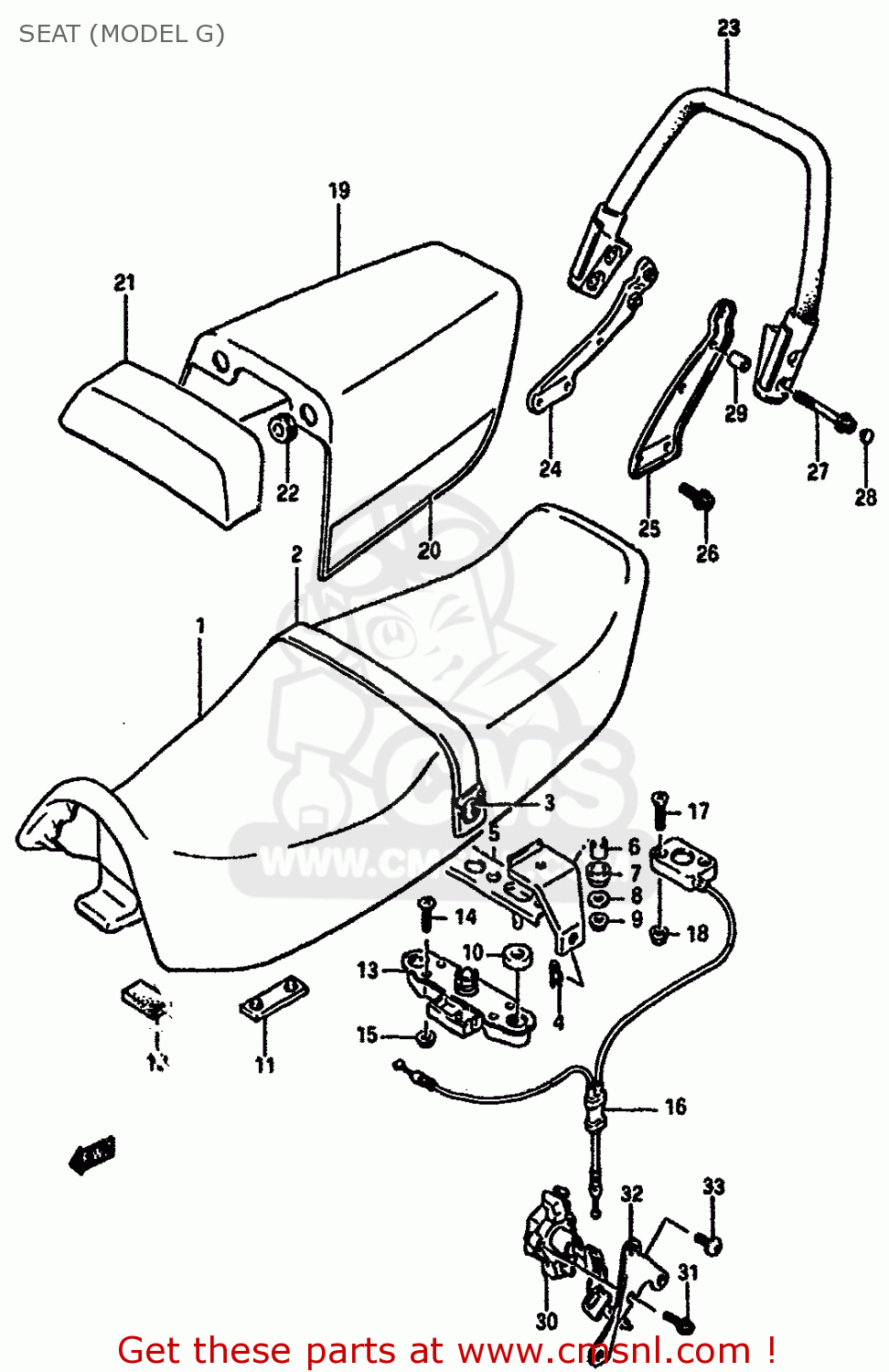

Seat (model g) diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510006B1058D
ref: 1-1
FOR 7GF
SEAT ASSEMBLY
€ 385.00
1-2
4510006B1058E
ref: 1-2
FOR 7JK
SEAT ASSEMBLY
4510006B1058E
€ 385.00
1-3
4510006B0058D
ref: 1-3
E39,FOR 7GF
SEAT ASSY (BLUE)
€ 385.00
1-4
4510006B0058E
ref: 1-4
E39,FOR 7JK
SEAT ASSY (RED)
€ 385.00
2-1
4518006B0058D
ref: 2-1
E39,FOR 7GF
BAND,SEAT GRIP (BLUE)
€ 16.00
2-2
4518006B0058E
ref: 2-2
E39,FOR 7JK
BAND,SEAT GRIP (RED)
4518006B0058E
€ 16.00
3
4518606B00
ref: 3
E39
BOLT
4518606B00
€ 5.00
4
0938506001
ref: 4
E39
CLIP
0938506001
€ 11.00
5
4521006B00
ref: 5
STRIKER,SEAT LOCK
€ 23.00
6
4521506B00
ref: 6
CUSHION
€ 4.50
7
4521606B00
ref: 7
SPACER
4521606B00
€ 2.50
8
0916006020
ref: 8
WASHER
0916006020
€ 2.00
9
0831616066
ref: 9
NUT
€ 2.50
10
4521331300
ref: 10
CUSHION
4521331300
€ 1.50
11
0932108009
ref: 11
CUSHION
0932108009
€ 4.00
12
4525527A00
ref: 12
CUSHION
€ 0.00
13
4522013601
ref: 13
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
14
0211206305
ref: 14
SCREW
0211206305
€ 2.50
15
0831626065
ref: 15
NUT
0831626065
€ 2.00
16
4522006B00
ref: 16
BRACKET,SEAT SUPPORT RR
4522006B00
€ 72.50
17
0212206255
ref: 17
SCREW
€ 2.00
18
0831626065
ref: 18
NUT
0831626065
€ 2.00
19-1
455500684014L
ref: 19-1
FOR 58D,GSX-R750XG:O
BOX,SEAT TAIL
€ 387.50
19-2
4555006840019
ref: 19-2
FOR 58E,GSX-R750XG:O
BOX,SEAT TAIL
€ 288.50
20-1
6865027A2008L
ref: 20-1
FOR 14L,GSX-R750XG:O
TAPE SET,SEAT TAIL BOX
€ 17.00
20-2
6865027A20064
ref: 20-2
FOR 019,GSX-R750XG:O
TAPE SET,SEAT TAIL BOX
€ 0.00
21-1
4622027A0058D
ref: 21-1
FOR 14L,GSX-R750XG:O
BACKREST,SEAT
€ 61.00
21-2
4622027A0058E
ref: 21-2
FOR 019,GSX-R750XG:O
BACKREST,SEAT
€ 61.00
22
0932012031
ref: 22
GSX-R750XG:OPT
CUSHION
0932012031
€ 3.00
23
4621027A01
ref: 23
HANDLE,PILLION RIDER
4621027A01
€ 99.50
24
4624027A00
ref: 24
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
25
4625027A00
ref: 25
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
26
0712006168
ref: 26
BOLT
€ 2.50
27
0910608061
ref: 27
BOLT
€ 4.50
28
0925006008
ref: 28
CAP(OD:10)
0925006008
€ 3.00
29
0918008125
ref: 29
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
30
9570027A00KEY
ref: 30
LOCK SET
9570027A00KEY
€ 65.50
31
0712006205
ref: 31
PLUG ,6X20
0712006205
€ 3.50
32
4528527A00
ref: 32
BRACKET,SEAT LOCK
4528527A00
€ 3.50
33
0214206125
ref: 33
SCREW 6X12
0214206125
€ 2.00
