GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

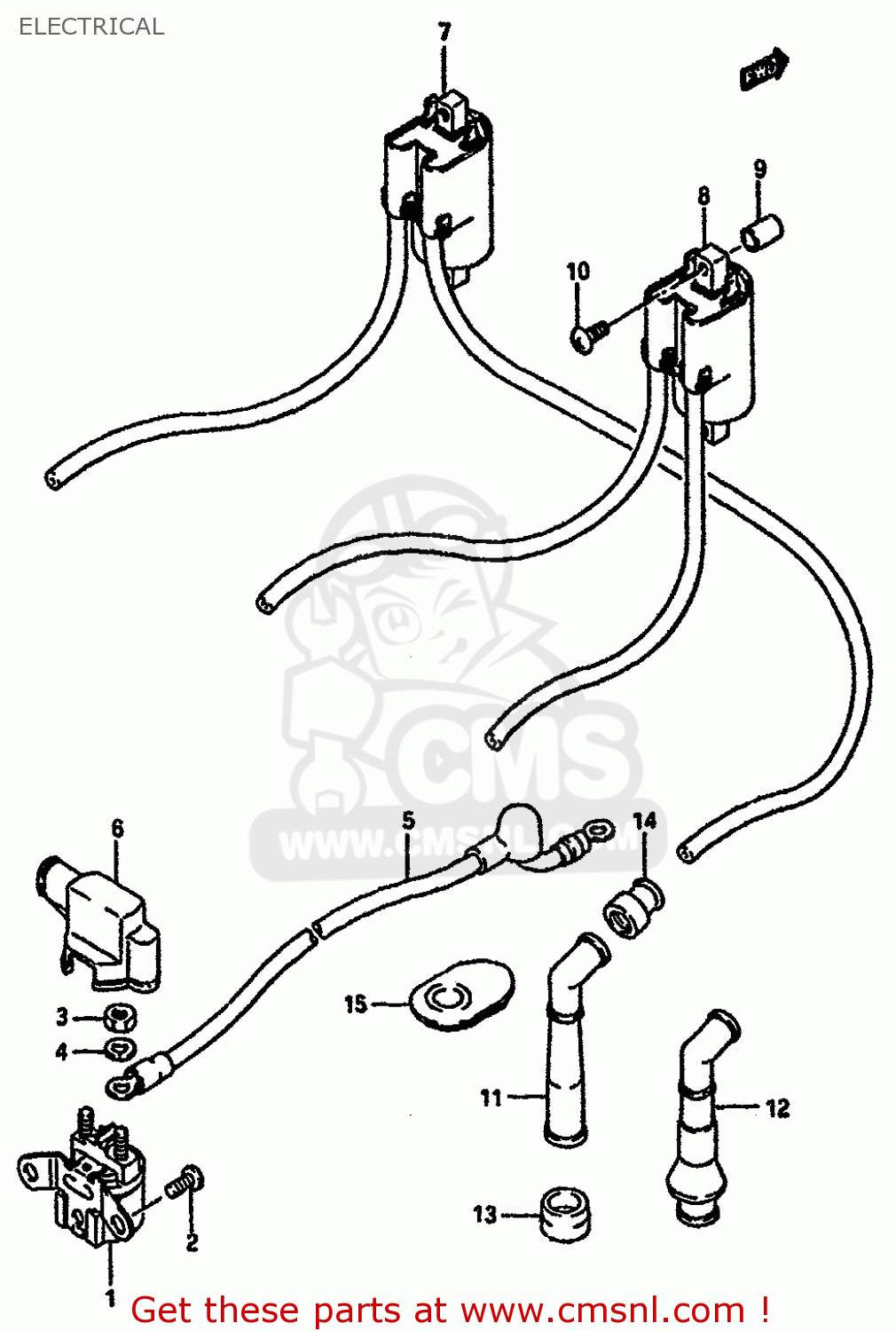

Electrical diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

ELECTRICAL GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
ELECTRICAL GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
ELECTRICAL GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0211206106
ref: 2
SCREW
€ 1.50
3
0831011066
ref: 3
NUT
€ 2.00
4
0832121066
ref: 4
WASHER,LOCK
0832121066
€ 2.00
5
3385027A01
ref: 5
WIRE,STARTER MOTOR LEAD
3385027A01
€ 30.00
6
3186144500
ref: 6
CAP,STARTER RELAY
3186144500
€ 6.50
7
3341027A00
ref: 7
COIL ASSEMBLY,IGNITION
3341027A00
€ 182.00
8
3342027A00
ref: 8
COIL ASSEMBLY,IGNITION
3342027A00
€ 182.00
9
0918006061
ref: 9
SPACER
0918006061
€ 2.50
10
0211206356
ref: 10
SCREW
€ 2.50
11
3351027A11
ref: 11
CAP,SPARK PLUG
€ 29.50
12
3351027A60
ref: 12
E16
CAP, SPARK PLUG
3351027A60
€ 27.50
13
3354127A22
ref: 13
SEAL,SPARK PLUG
3354127A22
€ 7.00
14
3354298000
ref: 14
SEAL,SPARK PLU
3354298000
€ 4.50
15
3354327A21
ref: 15
COVER,SPARK PLUG CAP
€ 12.50
