CLUTCH HOSE

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

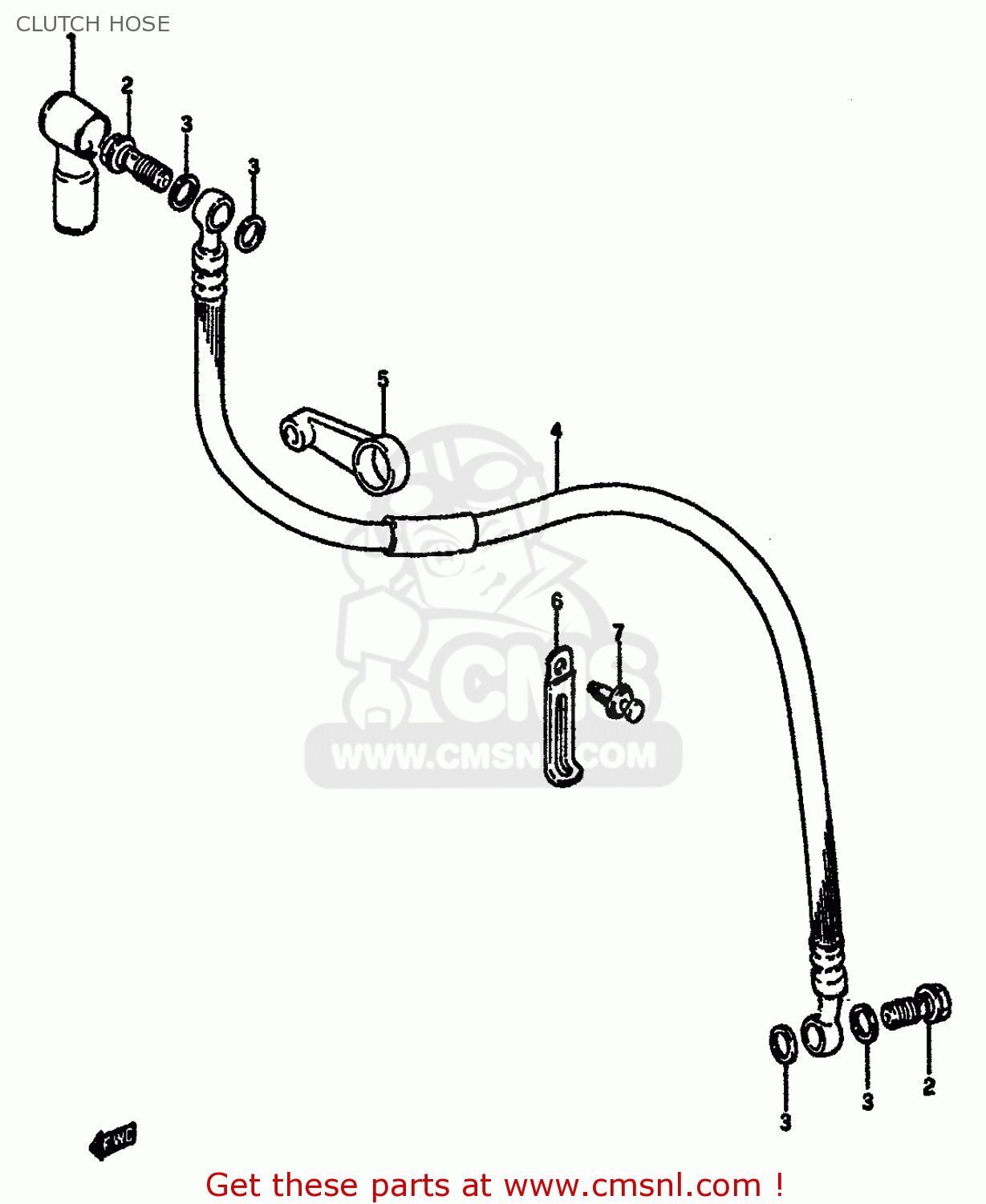

Clutch hose diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5991027A03
ref: 4

HOSE,CLUTCH

€ 196.50

5

5991527A10
ref: 5

CLAMP,CLUTCH HOSE NO.2

€ 7.50

6

0940406415
ref: 6

CLAMP

€ 3.00

7

0940907305
ref: 7

CLIP

€ 1.50
