COWLING (MODEL G)

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

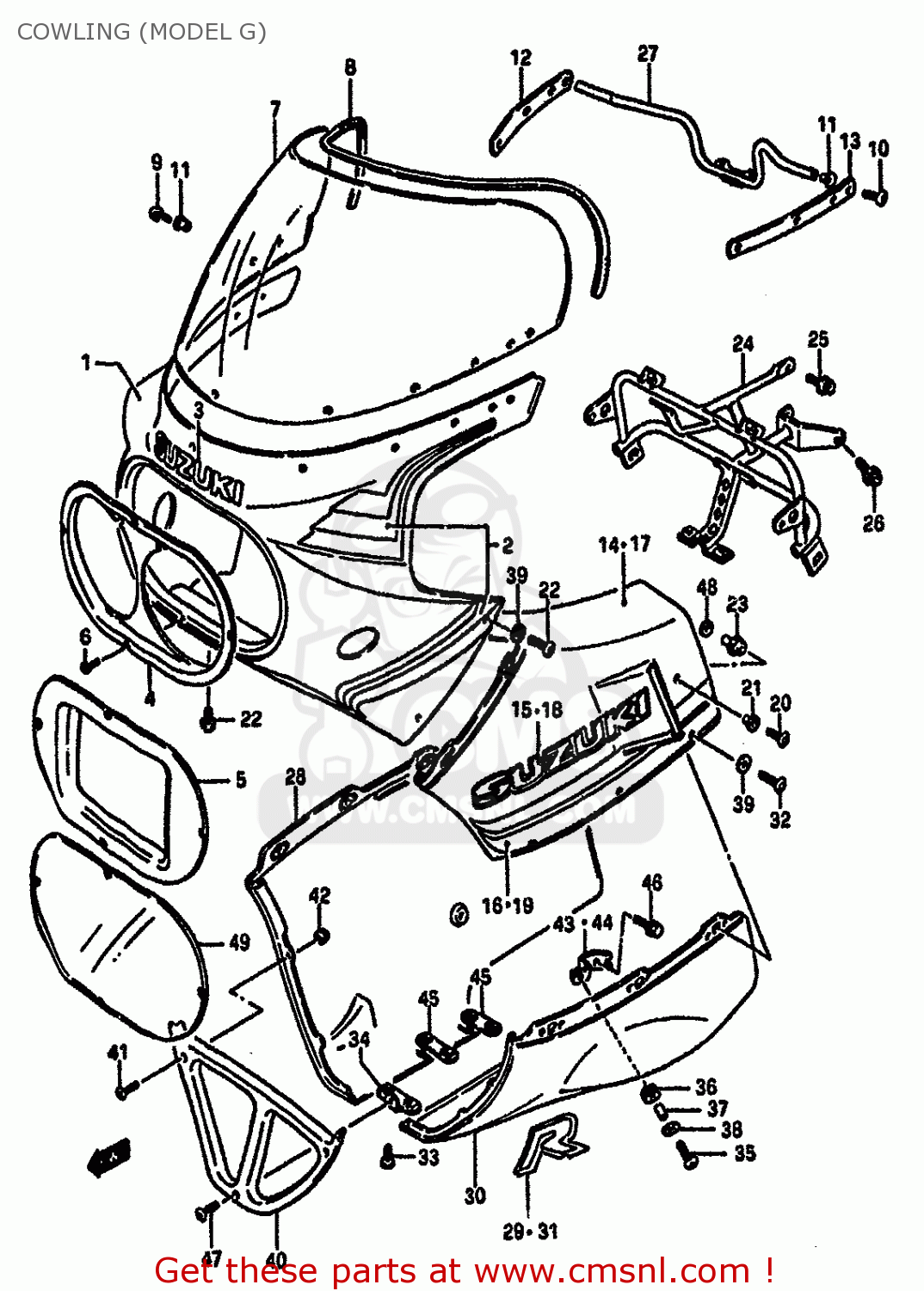

Cowling (model g) diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440027A417GF
ref: 1-1
TO 94400-27820-7GF
COWLING SET
€ 881.50
1-2
9440027A417JK
ref: 1-2
TO 94400-27820-7JK
COWLING SET
€ 881.50
1-3
9440027A517GF
ref: 1-3
E18,E34,TO 94400-278
BODY ASSY,COWLING (WHITE/BLUE)
€ 881.50
1-4
9440027A517JK
ref: 1-4
E18,E34,TO 94400-278
BODY ASSY,COWLING (BLACK/RED)
€ 881.50
2-1
6819027A117UC
ref: 2-1
FOR 7GF
TAPE SET,COWLING
6819027A117UC
€ 100.50
2-2
6819027A117VE
ref: 2-2
FOR 7JK
TAPE SET,COWLING
€ 69.00
3
6827104A00742
ref: 3
EMBLEM,LEG SHIELD
6827104A00742
€ 13.50
4
9443527A00291
ref: 4
COVER,COWLING FR
9443527A00291
€ 35.00
5-1
9443527A2019F
ref: 5-1
E18,E34,FOR 7GF
COVER,FRONT (BLUE)
€ 42.00
5-2
9443527A2022P
ref: 5-2
E18,E34,FOR 7JK
COVER,FRONT (RED)
9443527A2022P
€ 42.00
6
0354104125
ref: 6
SCREW
0354104125
€ 1.50
7
9461106B01
ref: 7
WINDSCREEN
€ 457.50
8-1
9463127A00
ref: 8-1
MOLDING,SCREEN
9463127A00
€ 15.00
8-2
9463127A10
ref: 8-2
E17
MOLDING
€ 14.00
9
0913905025
ref: 9
SCREW(5X14)
0913905025
€ 2.00
10
0913905032
ref: 10
SCREW(5X18)
0913905032
€ 2.50
11
9461927A00
ref: 11
NUT,COWLING SCREEN
9461927A00
€ 6.50
12
9452927A00
ref: 12
PLATE,RR VIEW MIRROR,R
9452927A00
€ 6.00
13
9453927A00
ref: 13
PLATE,RR VIEW MIRROR,L
9453927A00
€ 4.50
14-1
9443027A4014L
ref: 14-1
FOR 7GF
COVER ASSEMBLY,COWLING
9443027A4014L
€ 304.00
14-2
9443027A40019
ref: 14-2
FOR 7JK
COVER ASSEMBLY,COWLING
9443027A40019
€ 304.00
14-3
9443027A5014L
ref: 14-3
E39,FOR 7GF
COVER ASSEMBLY,COWLING
€ 304.00
14-4
9443027A50019
ref: 14-4
E39,FOR 7JK
COVER ASSEMBLY,COWLING
€ 304.00
15
681113130066P
ref: 15
EMBLEM
681113130066P
€ 24.00
16-1
6868027A2181F
ref: 16-1
FOR 14L
TAPE SET,COWLING SIDE,RIGHT
6868027A2181F
€ 23.50
16-2
6868027A2165G
ref: 16-2
FOR 019
TAPE SET,COWL SIDE RH
€ 18.00
17-1
9444027A4014L
ref: 17-1
FOR 7GF
COVER,COWLING SIDE,LEFT
9444027A4014L
€ 264.00
17-2
9444027A40019
ref: 17-2
FOR 7JK
COVER,COWLING SIDE,LEFT
€ 264.00
17-3
9444027A5014L
ref: 17-3
E39,FOR 7GF
COVER,COWLING SIDE,LEFT
€ 264.00
17-4
9444027A50019
ref: 17-4
E39,FOR 7JK
COVER,COWLING SIDE,LEFT
€ 264.00
18
681113130066P
ref: 18
EMBLEM
681113130066P
€ 24.00
19-1
6869027A2181F
ref: 19-1
FOR 14L
TAPE SET,COWLING SIDE,LEFT
€ 50.00
19-2
6869027A2165G
ref: 19-2
FOR 019
TAPE SET,COWL SIDE LH
6869027A2165G
€ 27.00
20
0913906027
ref: 20
SCREW(6X12)
0913906027
€ 3.00
21
0916906033
ref: 21
WASHER
0916906033
€ 1.50
22
0913906030
ref: 22
SCREW(6X16)
0913906030
€ 3.50
23
9457004A00
ref: 23
CUSHION,COWLING
9457004A00
€ 12.50
24
9451027A40
ref: 24
BRACE,COWLING
9451027A40
€ 132.00
25
0712006165
ref: 25
BOLT
€ 2.50
26
0712008165
ref: 26
BOLT
€ 3.00
27
9453027A10
ref: 27
BRACE,COWLING BODY RR
9453027A10
€ 38.00
28-1
9447027A417TG
ref: 28-1
FOR 7GF
COVER,COWLING,LOWER,RIGHT
€ 626.00
28-2
9447027A417JK
ref: 28-2
FOR 7JK
COVER,COWLING,LOWER,RIGHT
9447027A417JK
€ 626.00
29-1
6826127A0073H
ref: 29-1
FOR 7TG
EMBLEM
6826127A0073H
€ 27.00
29-2
6826127A0060D
ref: 29-2
FOR 7JK
EMBLEM
6826127A0060D
€ 22.50
30-1
9448027A407TG
ref: 30-1
FOR 7GF
COVER,COWLING,LOWER,LEFT
9448027A407TG
€ 626.00
30-2
9448027A407JK
ref: 30-2
FOR 7JK
COVER,COWLING,LOWER,LEFT
9448027A407JK
€ 626.00
31-1
6826127A1073H
ref: 31-1
FOR 7TG
EMBLEM
€ 27.00
31-2
6826127A1060D
ref: 31-2
FOR 7JK
EMBLEM
€ 22.50
32
0913906030
ref: 32
SCREW(6X16)
0913906030
€ 3.50
33
0913906039
ref: 33
SCREW(6X16)
0913906039
€ 2.50
34
9449006B00
ref: 34
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
35
0913906028
ref: 35
SCREW(6X20)
0913906028
€ 3.50
36
0932009016
ref: 36
CUSHION
0932009016
€ 2.50
37
0918006152
ref: 37
SPACER
0918006152
€ 3.00
38
0916006056
ref: 38
WASHER(6.5X18X1)
0916006056
€ 2.00
39
0916107005
ref: 39
WASHER
0916107005
€ 3.00
40-1
9447506B0114L
ref: 40-1
FOR 7GF
COVER,COWLING,LOWER,FRONT
€ 121.50
40-2
9447506B01019
ref: 40-2
FOR 7JK
COVER,COWLING,LOWER,FRONT
9447506B01019
€ 121.50
41
0913905025
ref: 41
SCREW(5X14)
0913905025
€ 2.00
42
0831626055
ref: 42
NUT
0831626055
€ 2.00
43
9458027A00
ref: 43
BRACE,COWLING LWR,R
9458027A00
€ 10.00
44
9459027A00
ref: 44
BRACE,COWLING LWR,L
9459027A00
€ 6.50
45
9449306B00
ref: 45
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
46
0151706128
ref: 46
BOLT
€ 2.50
47
0913906030
ref: 47
SCREW(6X16)
0913906030
€ 3.50
48
0832131064
ref: 48
WASHER
0832131064
€ 2.00
49
9441927A00
ref: 49
OPT
COVER,HEADLAMP
9441927A00
€ 131.50
