OIL COOLER

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

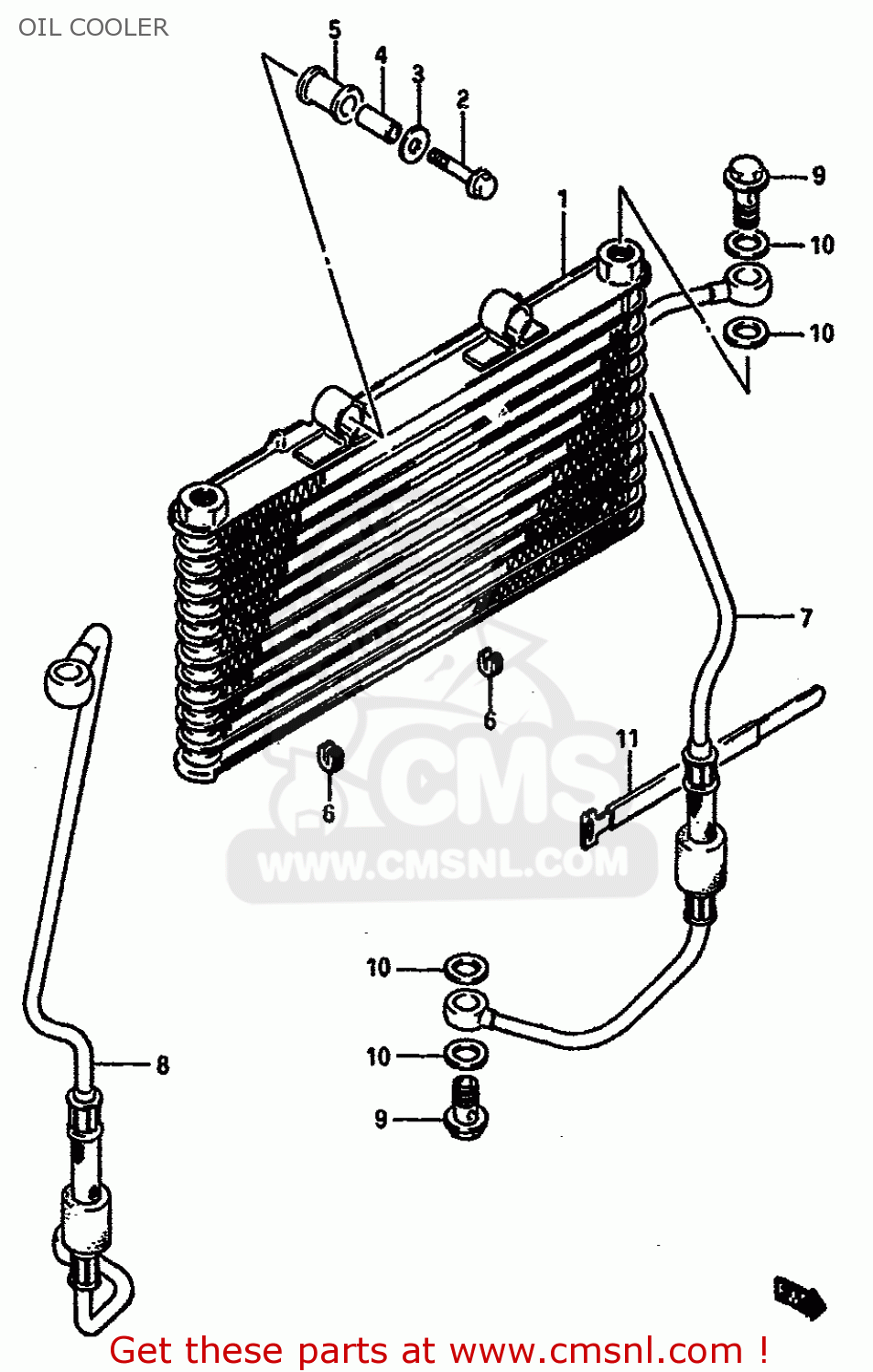

Oil cooler diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1660027A01
ref: 1

COOLER ASSEMBLY,OIL

€ 813.00

0151708405
ref: 2

BOLT 8X40

€ 3.50

0916008047
ref: 3

WASHER(8.5X23X1.2)

€ 2.00

0918008124
ref: 4

SPACER (8.8X12X24.5)

€ 7.00

1662927A01
ref: 5

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 6

CUSHION,OIL COOLER NO.2

€ 3.00

1646027A00
ref: 7

HOSE,OIL

€ 156.50

1647027A00
ref: 8

HOSE,OIL

€ 152.00

0936016001
ref: 9

BOLT,UNION

€ 12.00

0916816003
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

0940718301
ref: 11

CLAMP

€ 6.00
