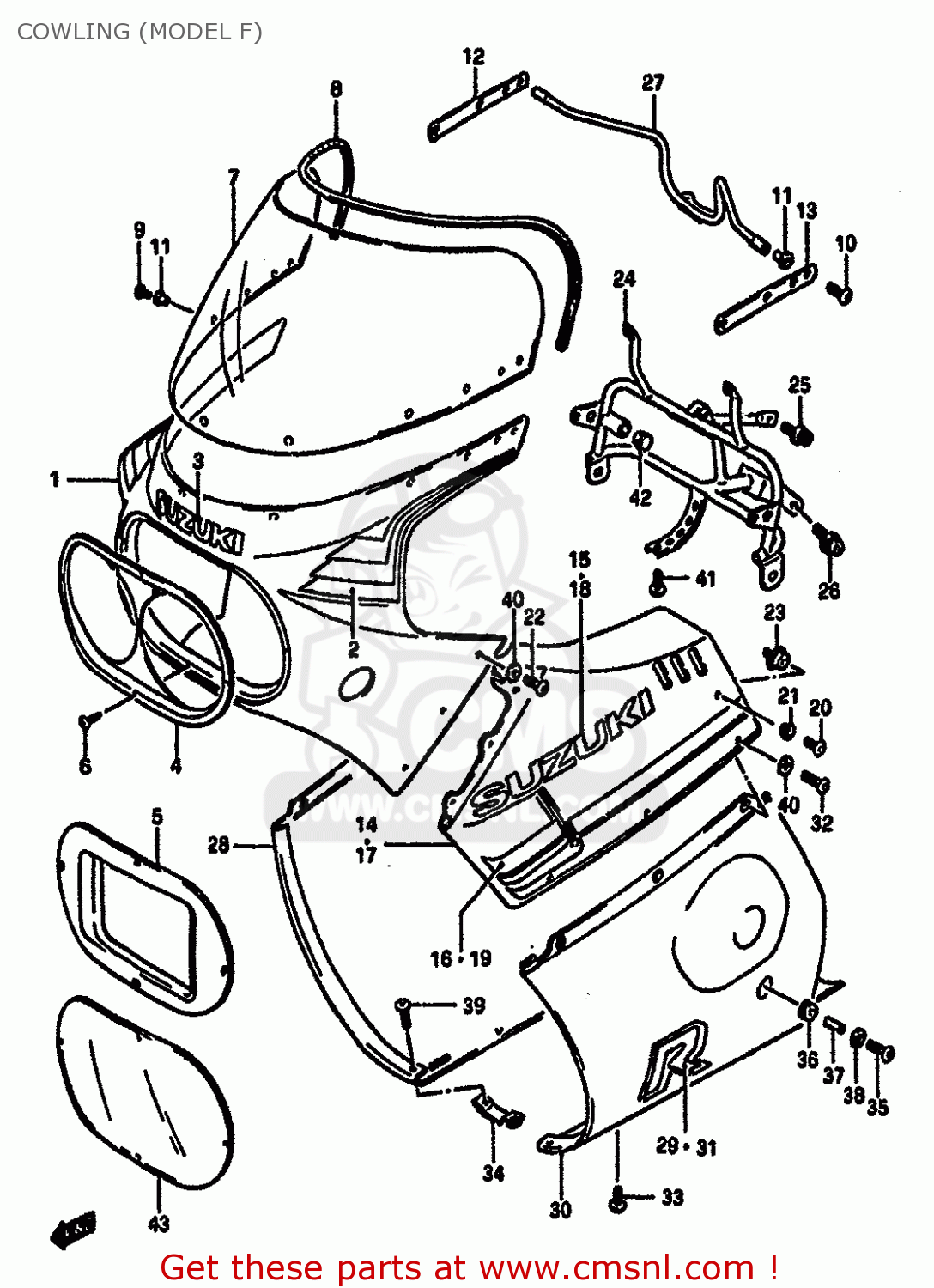

COWLING (MODEL F)

ref

part #

description

quantity

1-1

9440027A017GF
ref: 1-1
TO 94400-27810-7GF

BODY ASSY,COWLING (WHITE/BLUE)

€ 881.50

1-2

9440027A017JK
ref: 1-2
TO 94400-27810-7JK

BODY ASSY,COWLING (BLACK/RED)

€ 881.50

1-3

9440027A127GF
ref: 1-3
E18,E34,TO 94400-278

BODY ASSY,COWLING (WHITE/BLUE)

€ 881.50

1-4

9440027A127JK
ref: 1-4
E18,E34,TO 94400-278

BODY ASSY,COWLING (BLACK/RED)

€ 881.50

2-1

6819027A117UC
ref: 2-1
FOR 7GF

TAPE SET,COWLING

€ 100.50

2-2

6819027A117VE
ref: 2-2
FOR 7JK

TAPE SET,COWLING

€ 69.00

3

6827104A00742
ref: 3

EMBLEM,LEG SHIELD

€ 13.50

4

9443527A00291
ref: 4

COVER,COWLING FR

€ 35.00

5-1

9443527A2019F
ref: 5-1
E18,E34,FOR 7GF

COVER,FRONT (BLUE)

€ 42.00

5-2

9443527A2022P
ref: 5-2
E18,E34,FOR 7JK

COVER,FRONT (RED)

€ 42.00

6

0354104125
ref: 6

SCREW

€ 1.50

7

9461127A01
ref: 7

WINDOW,COWLING

€ 457.50

8-1

9463127A00
ref: 8-1

MOLDING,SCREEN

€ 15.00

8-2

9463127A10
ref: 8-2
E17

MOLDING

€ 14.00

9

0913905025
ref: 9

SCREW(5X14)

€ 2.00

10

0913905032
ref: 10

SCREW(5X18)

€ 2.50

11

9461927A00
ref: 11

NUT,COWLING SCREEN

€ 6.50

12

9452927A00
ref: 12

PLATE,RR VIEW MIRROR,R

€ 6.00

13

9453927A00
ref: 13

PLATE,RR VIEW MIRROR,L

€ 4.50

14-1

9443027A0014L
ref: 14-1
FOR 7GF

COVER,SIDE RH (WHITE)

€ 263.50

14-2

9443027A00019
ref: 14-2
FOR 7JK

COVER,SIDE RH (BLACK)

€ 263.50

14-3

9443027A2014L
ref: 14-3
E39,FOR 7GF

COVER,SIDE RH (WHITE)

€ 263.50

14-4

9443027A20019
ref: 14-4
E39,FOR 7JK

COVER,SIDE RH (BLACK)

€ 263.50

15-1

681113320007G
ref: 15-1
FOR 14L

EMBLEM

€ 14.00

15-2

6811133200064
ref: 15-2
FOR 019

EMBLEM(WHITE)

€ 13.00

16-1

6868027A1081F
ref: 16-1
FOR 14L

TAPE SET,RH

€ 30.50

16-2

6868027A1065G
ref: 16-2
FOR 019

TAPE SET,RH

€ 30.50

17-1

9444027A0014L
ref: 17-1
FOR 7GF

COVER,SIDE LH (WHITE)

€ 306.50

17-2

9444027A00019
ref: 17-2
FOR 7JK

COVER,SIDE LH (BLACK)

€ 306.50

17-3

9444027A2014L
ref: 17-3
E39,FOR 7GF

COVER,SIDE LH (WHITE)

€ 306.50

17-4

9444027A20019
ref: 17-4
E39,FOR 7JK

COVER,SIDE LH (BLACK)

€ 306.50

18-1

681113320007G
ref: 18-1
FOR 14L

EMBLEM

€ 14.00

18-2

6811133200064
ref: 18-2
FOR 019

EMBLEM(WHITE)

€ 13.00

19-1

6869027A1081F
ref: 19-1
FOR 14L

TAPE SET,LH

€ 50.00

19-2

6869027A1065G
ref: 19-2
FOR 019

TAPE SET,LH

€ 28.50

20

0913906027
ref: 20

SCREW(6X12)

€ 3.00

21

0916906033
ref: 21

WASHER

€ 1.50

22

0913906030
ref: 22

SCREW(6X16)

€ 3.50

23

9457004A00
ref: 23

CUSHION,COWLING

€ 12.50

24-1

9451027A00
ref: 24-1

BRACE,FRONT

€ 92.50

24-2

9451027A20
ref: 24-2
E25

BRACE,FRONT

€ 0.00

25

0712006165
ref: 25

BOLT

€ 2.50

26

0712008165
ref: 26

BOLT

€ 3.00

27

9453027A01
ref: 27

BRACE,COWLING BODY RR

€ 39.50

28-1

9447027A007TG
ref: 28-1
FOR 7GF

COWLING,LOWER

€ 507.00

28-2

9447027A007JK
ref: 28-2
FOR 7JK

COVER,LOWER RH (BLACK/RED)

€ 507.00

29-1

6826127A0073H
ref: 29-1
FOR 7TG

EMBLEM

€ 27.00

29-2

6826127A0060D
ref: 29-2
FOR 7JK

EMBLEM

€ 22.50

30-1

9448027A007TG
ref: 30-1
FOR 7GF

COVER,COWL LH

€ 537.00

30-2

9448027A007JK
ref: 30-2
FOR 7JK

COVER,COWL LH

€ 537.00

31-1

6826127A0073H
ref: 31-1
FOR 7TG

EMBLEM

€ 27.00

31-2

6826127A0060D
ref: 31-2
FOR 7JK

EMBLEM

€ 22.50

32

0913906030
ref: 32

SCREW(6X16)

€ 3.50

33

0913906039
ref: 33

SCREW(6X16)

€ 2.50

34

9449027A00
ref: 34

PLATE,LOWER COVER

€ 5.50

35

0913906028
ref: 35

SCREW(6X20)

€ 3.50

36

0932009016
ref: 36

CUSHION

€ 2.50

37

0918006152
ref: 37

SPACER

€ 3.00

38

0916006056
ref: 38

WASHER(6.5X18X1)

€ 2.00

39

0913906027
ref: 39

SCREW(6X12)

€ 3.00

40

0916006094
ref: 40

WASHER(6.5X15X1.0)

€ 1.50

41

0913906030
ref: 41

SCREW(6X16)

€ 3.50

42

0925018003
ref: 42
E25

PLUG(OD:22)

€ 2.00

43

9441927A00
ref: 43
OPT

COVER,HEADLAMP

€ 131.50
