STARTER CLUTCH

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

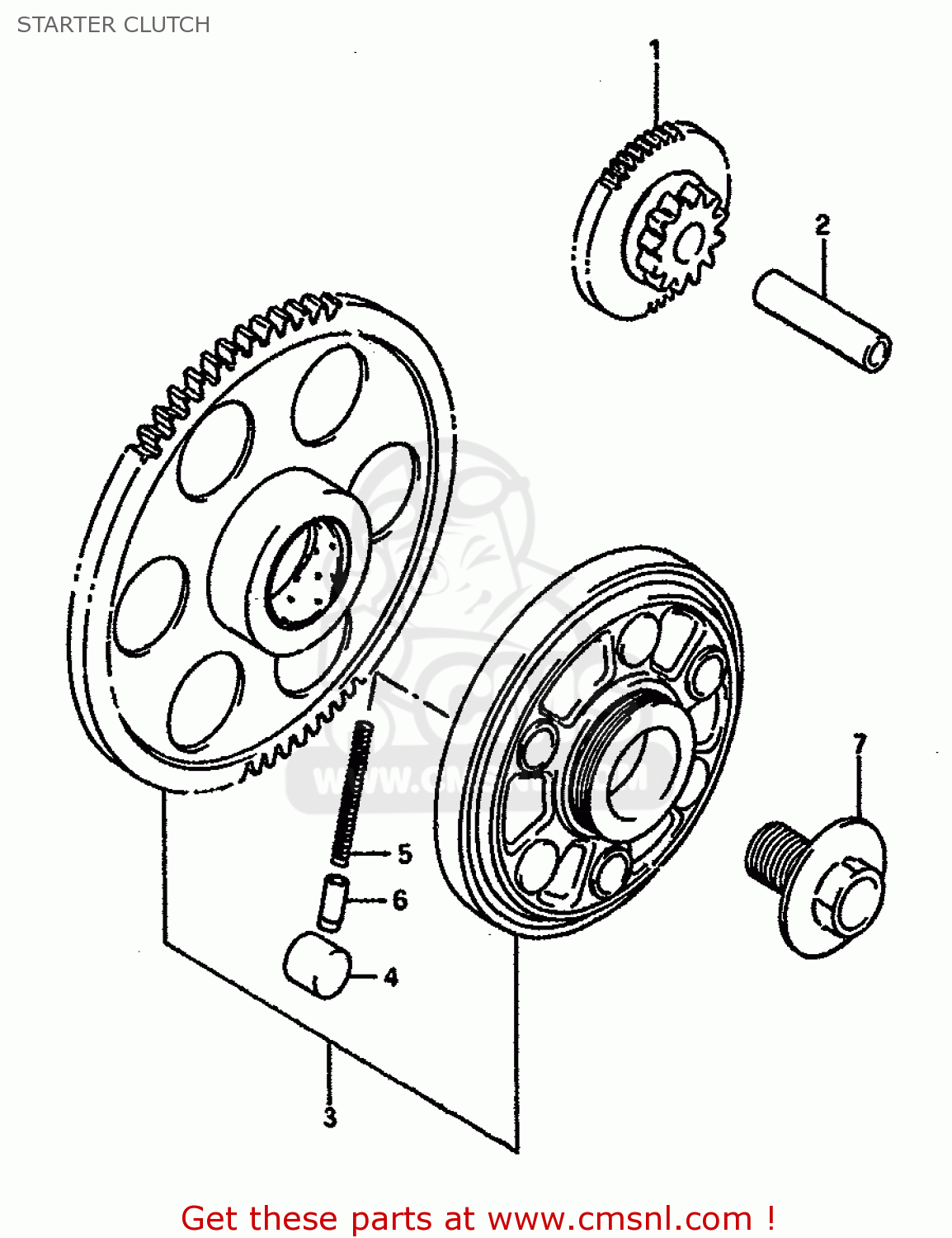

Starter clutch diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

0920611014
ref: 2
FROM 09206-11010

PIN(7X11X42)

€ 8.00

3-1

1260027821
ref: 3-1
MODEL F/G TO 12600-2

CLUTCH SET,STARTER

€ 205.00

3-2

1260027822
ref: 3-2
MODEL H

CLUTCH SET,STARTER

€ 205.00

0926114001
ref: 4

PIN(14X13)

€ 5.00

0944004015
ref: 5

SPRING

€ 2.50

1263331000
ref: 6

PIECE,PUSH

€ 9.00

0910314005
ref: 7

BOLT(14X21)

€ 17.00
