CYLINDER

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

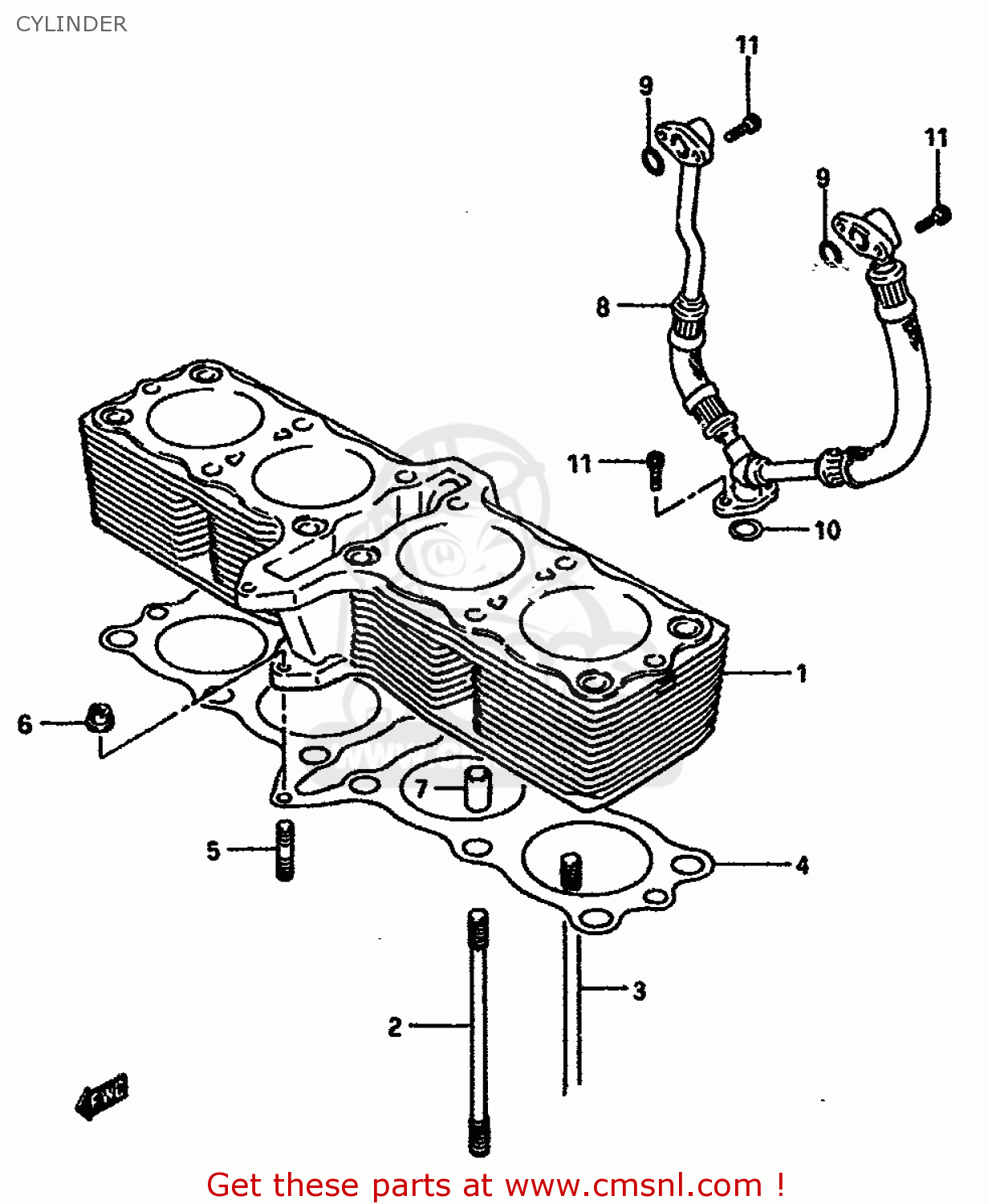

Cylinder diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1121027A04
ref: 1
FROM 11210-27A03

CYLINDER

€ 896.00

0910810074
ref: 2

STUD

€ 11.00

0910810073
ref: 3

BOLT,STUD

€ 9.50

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

0831616064
ref: 6

NUT 6MM

€ 2.50

0920613006
ref: 7

PIN

€ 9.00

1132827A01
ref: 8

HOSE

€ 241.00

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

0711006165
ref: 11

BOLT

€ 3.00
