SEAT (MODEL H)

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

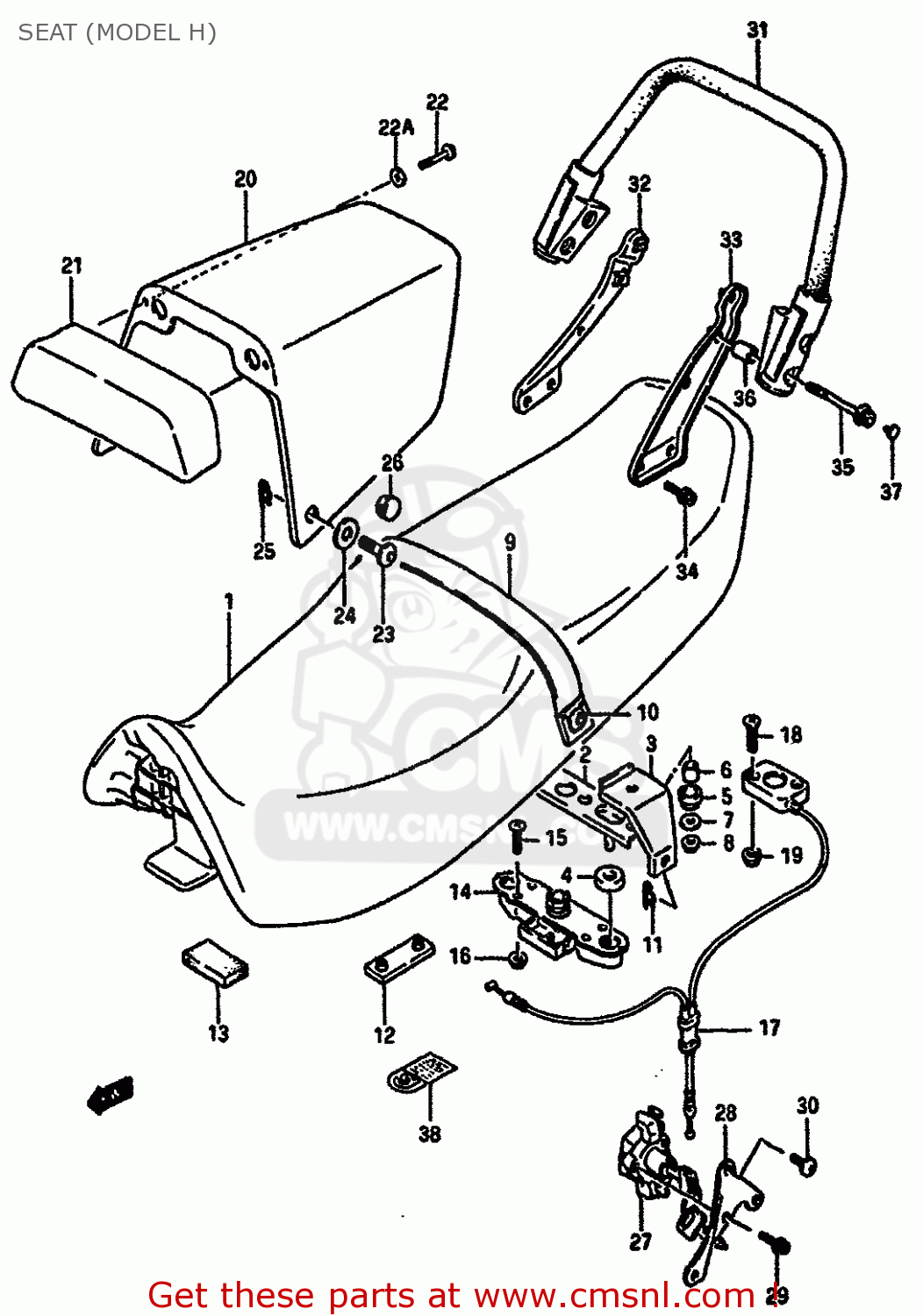

Seat (model h) diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL H) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL H) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL H) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510006B1058R
ref: 1-1
FOR 7JK
SEAT ASSEMBLY
€ 385.00
1-2
4510006B1049T
ref: 1-2
FOR 9HE
SEAT ASSEMBLY
€ 385.00
1-3
4510006B0058R
ref: 1-3
E39 FOR 7JK GSX-R750
SEAT ASSY (BLACK)
€ 385.00
1-4
4510006B0049T
ref: 1-4
E39 FOR 9HE GSX-R750
SEAT ASSY (BLUE)
€ 385.00
2
4521006B00
ref: 2
STRIKER,SEAT LOCK
€ 23.00
3
4523006B00
ref: 3
PLATE,SEAT GRIP BAND
€ 8.50
4
4521331300
ref: 4
CUSHION
4521331300
€ 1.50
5
4521506B00
ref: 5
CUSHION
€ 4.50
6
4521606B00
ref: 6
SPACER
4521606B00
€ 2.50
7
0916006020
ref: 7
WASHER
0916006020
€ 2.00
8
0831616066
ref: 8
NUT
€ 2.50
9-1
4518006B0058R
ref: 9-1
E39 FOR 7JK GSX-R750
BAND COMP,SEAT GRIP
€ 16.00
9-2
4518006B0049T
ref: 9-2
E39 FOR 9HE GSX-R750
BAND,SEAT
€ 16.00
10
4518606B00
ref: 10
E39,GSX-R750XH E2,E4
BOLT
4518606B00
€ 5.00
11
0938506001
ref: 11
E39,GSX-R750XH E2,E4
CLIP
0938506001
€ 11.00
12
0932108009
ref: 12
CUSHION
0932108009
€ 4.00
13
4525527A00
ref: 13
CUSHION
€ 0.00
14
4522013601
ref: 14
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
15
0211206305
ref: 15
SCREW
0211206305
€ 2.50
16
0831626065
ref: 16
NUT
0831626065
€ 2.00
17
4522006B00
ref: 17
BRACKET,SEAT SUPPORT RR
4522006B00
€ 72.50
18
0211206255
ref: 18
SCREW
€ 1.50
19
0831626065
ref: 19
NUT
0831626065
€ 2.00
20-1
4555006862019
ref: 20-1
FOR 7JK,GSX-R750XH O
BOX SET,SEAT TAIL
€ 385.00
20-2
455500686230H
ref: 20-2
FOR 9HE,GSX-R750XH O
BOX SET,SEAT TAIL
€ 385.00
21-1
4622027A0158R
ref: 21-1
FOR 019,GSX-R750XH O
BACKREST,SEAT
4622027A0158R
€ 61.00
21-2
4622027A0149T
ref: 21-2
FOR 30H,GSX-R750XH O
BACKREST,SEAT
€ 61.00
22
0214206205
ref: 22
GSX-R750XH OPT
SCREW, CENTER
0214206205
€ 2.00
22A
0916006039
ref: 22A
GSX-R750XH OPT
WASHER (6.5X18X1.6)
0916006039
€ 2.00
23
4518606B00
ref: 23
GSX-R750XH OPT
BOLT
4518606B00
€ 5.00
24
0916110010
ref: 24
GSX-R750XH OPT
WASHER(10X25X3.2)
0916110010
€ 9.00
25
0938506001
ref: 25
GSX-R750XH OPT
CLIP
0938506001
€ 11.00
26
4558127A00
ref: 26
GSX-R750XH OPT
CAP,SEAT TAIL COVER
4558127A00
€ 13.50
27
9570027A00KEY
ref: 27
LOCK SET
9570027A00KEY
€ 65.50
28
4528527A00
ref: 28
BRACKET,SEAT LOCK
4528527A00
€ 3.50
29
0214206125
ref: 29
SCREW 6X12
0214206125
€ 2.00
30
0712006205
ref: 30
PLUG ,6X20
0712006205
€ 3.50
31
4621027A01
ref: 31
HANDLE,PILLION RIDER
4621027A01
€ 99.50
32
4624027A00
ref: 32
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
33
4625027A00
ref: 33
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
34
0712006168
ref: 34
BOLT
€ 2.50
35
0910608061
ref: 35
BOLT
€ 4.50
36
0918008125
ref: 36
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
37
0925006008
ref: 37
CAP(OD:10)
0925006008
€ 3.00
38
1196782000
ref: 38
E2
LABEL,ASBESTOS WARNING
€ 2.00
