FRAME COVER (MODEL F/G)

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

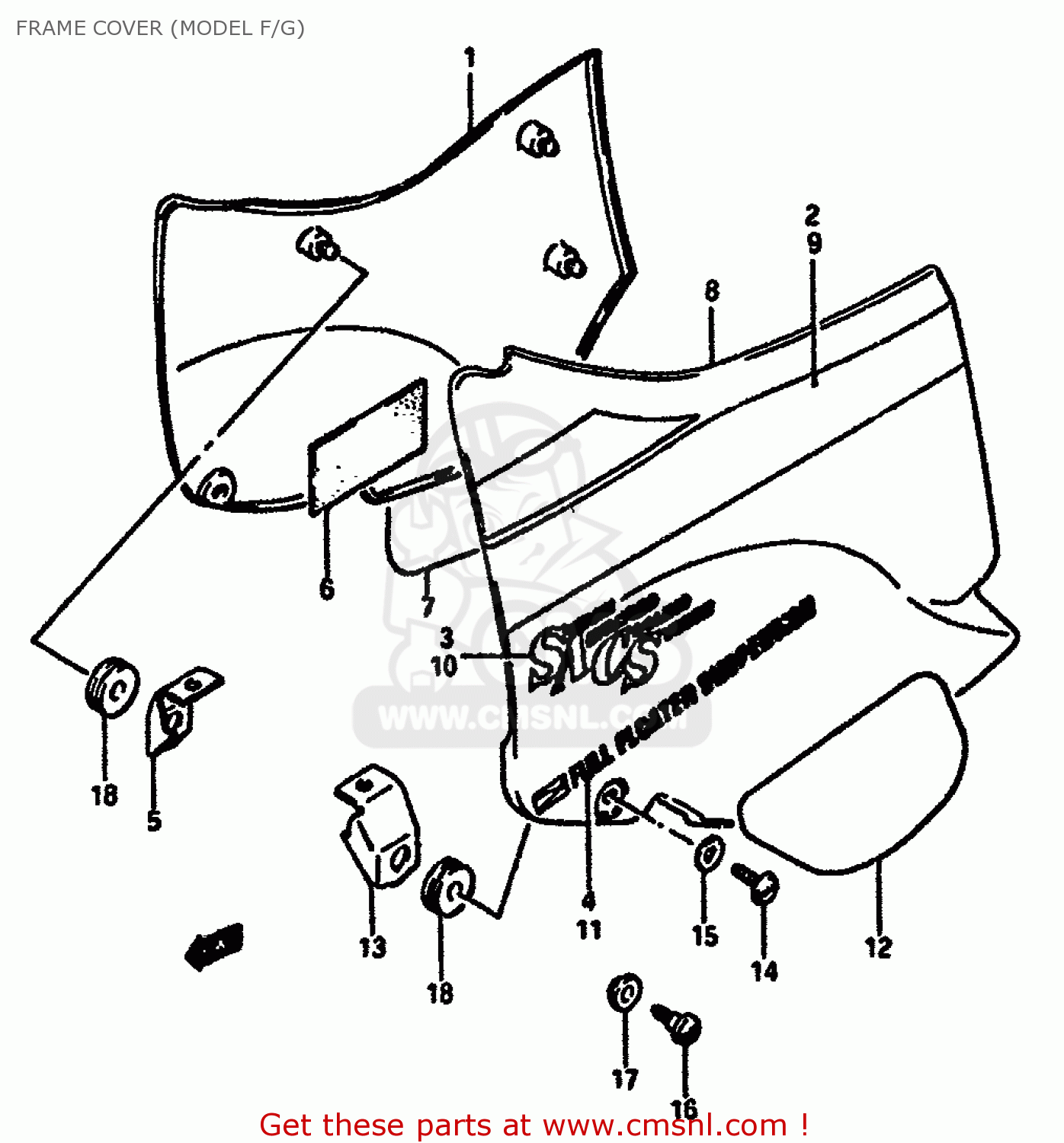

Frame cover (model f/g) diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

FRAME COVER (MODEL F/G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL F/G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL F/G) GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4711027A007TG
ref: 1-1
MODEL F
COVER,FRAME RH
€ 160.50
1-2
4711027A307TG
ref: 1-2
MODEL G
COVER,FRAME,RIGHT
€ 160.50
1-3
4711027A007JK
ref: 1-3
MODEL F
COVER,FRAME RH
4711027A007JK
€ 160.50
1-4
4711027A307JK
ref: 1-4
MODEL G
COVER,FRAME,RIGHT
4711027A307JK
€ 160.50
2-1
6813027A1081F
ref: 2-1
MODEL F,FOR 7TG
TAPE SET,RH
€ 41.50
2-2
6813027A1181F
ref: 2-2
MODEL G,FOR 7TG
TAPE SET,FRAME COVER
€ 41.50
2-3
6813027A1065G
ref: 2-3
MODEL F,FOR 7JK
TAPE SET,RH
€ 0.00
2-4
6813027A1165G
ref: 2-4
MODEL G,FOR 7JK
TAPE SET,FRAME COVER,RIGHT
€ 0.00
3-1
6813127A007VR
ref: 3-1
FOR 7TG
EMBLEM
6813127A007VR
€ 13.00
3-2
6813127A007JL
ref: 3-2
FOR 7JK
EMBLEM
€ 9.00
4-1
682353130087W
ref: 4-1
MODEL F,FOR 7TG
EMBLEM
682353130087W
€ 4.50
4-2
682353130091R
ref: 4-2
MODEL F,FOR 7JK
EMBLEM
€ 12.00
5-1
4717127A00
ref: 5-1
MODEL F
HOLDER,FRAME COVER RH
4717127A00
€ 3.50
5-2
4717127A01
ref: 5-2
MODEL G
HOLDER,FRAME COVER,RIGHT
€ 3.50
6
4716127A00
ref: 6
RUBBER,FRAME COVER,RIGHT
€ 8.00
7
4726106B00
ref: 7
MODEL G
PROTECTOR,FRAME COVER
€ 19.00
8-1
4721027A007TG
ref: 8-1
MODEL F
COVER,FRAME LH
4721027A007TG
€ 160.50
8-2
4721027A307TG
ref: 8-2
MODEL G
COVER,FRAME,LEFT
€ 160.50
8-3
4721027A007JK
ref: 8-3
MODEL F
COVER,FRAME LH
4721027A007JK
€ 160.50
8-4
4721027A307JK
ref: 8-4
MODEL G
COVER,FRAME,LEFT
4721027A307JK
€ 160.50
9-1
6814027A1081F
ref: 9-1
MODEL F,FOR 7TG
TAPE SET,LH
€ 20.00
9-2
6814027A1181F
ref: 9-2
MODEL G,FOR 7TG
TAPE SET,FRAME COVER,LEFT
€ 20.00
9-3
6814027A1065G
ref: 9-3
MODEL F,FOR 7JK
TAPE SET,LH
€ 0.00
9-4
6814027A1165G
ref: 9-4
MODEL G,FOR 7JK
TAPE SET,FRAME COVER,LEFT
€ 0.00
10-1
6813127A007VR
ref: 10-1
FOR 7TG
EMBLEM
6813127A007VR
€ 13.00
10-2
6813127A007JL
ref: 10-2
FOR 7JK
EMBLEM
€ 9.00
11-1
682353130087W
ref: 11-1
MODEL F,FOR 7TG
EMBLEM
682353130087W
€ 4.50
11-2
682353130091R
ref: 11-2
MODEL F,FOR 7JK
EMBLEM
€ 12.00
12
4726127A00
ref: 12
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
13-1
4714127A00
ref: 13-1
MODEL F
HOLDER,FRAME COVER LH
4714127A00
€ 4.50
13-2
4714127A01
ref: 13-2
MODEL G
HOLDER,FRAME COVER,LEFT
€ 4.50
14
0912506052
ref: 14
MODEL F
SCREW(6X16)
0912506052
€ 2.00
15
0916006019
ref: 15
MODEL F
WASHER(6.5X16X1.2)
0916006019
€ 1.50
16
0913906044
ref: 16
MODEL G
SCREW(6X23)
0913906044
€ 7.00
17
0932008043
ref: 17
MODEL G
CUSHION
0932008043
€ 5.50
18
0932008018
ref: 18
CUSHION
0932008018
€ 4.00
