FRONT MASTER CYLINDER

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

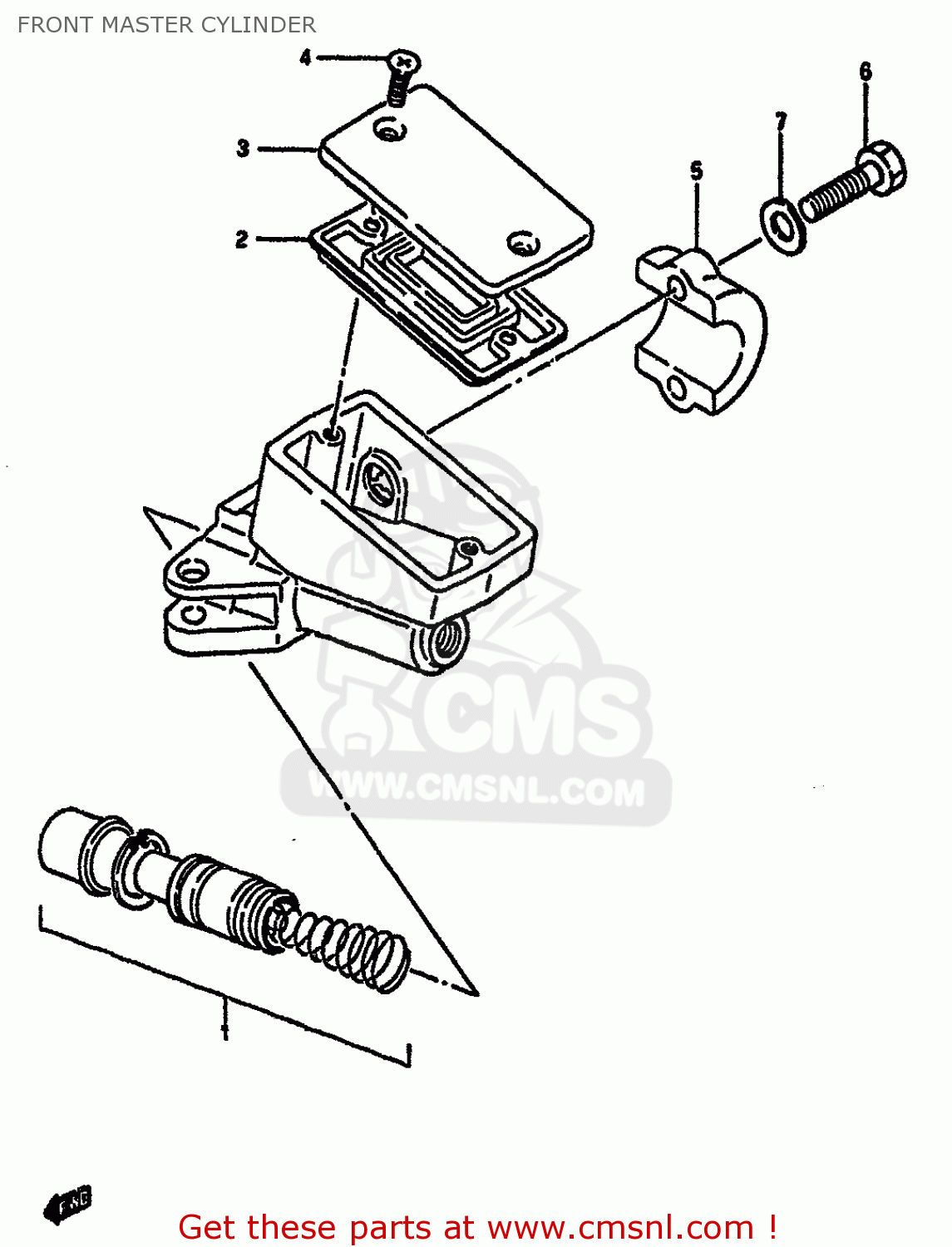

Front master cylinder diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

FRONT MASTER CYLINDER GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

FRONT MASTER CYLINDER GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

0

5960008A30
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 304.50

1

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

2

5966749460
ref: 2

5966749460

3

5966904A10
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967116700
ref: 5

HOLDER,MASTER CYLINDER

€ 18.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
