FRAME

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

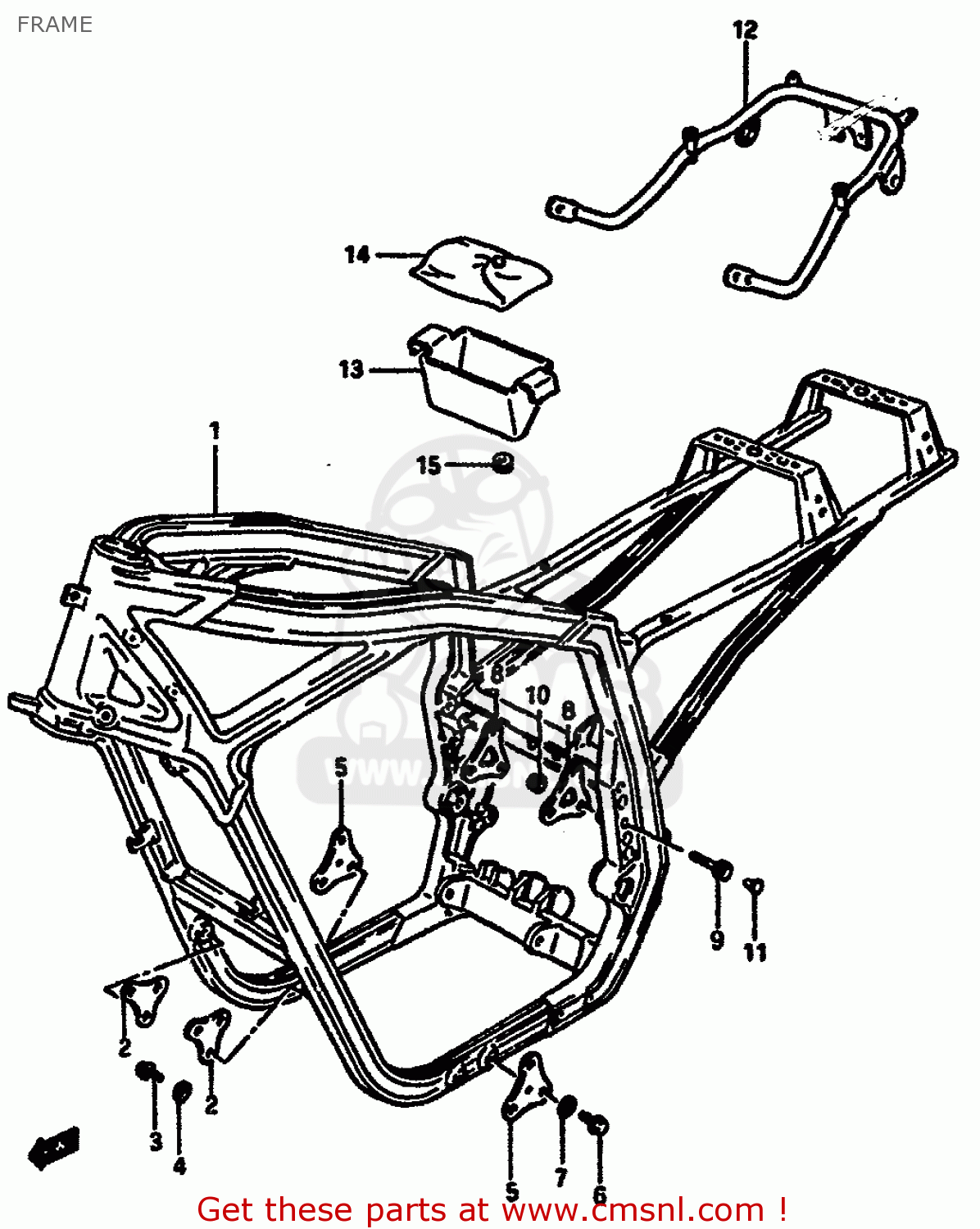

Frame diagram GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

FRAME GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4110027A01
ref: 1-1
MODEL F
FRAME
€ 2,859.50
1-2
4110027A02
ref: 1-2
MODEL G
FRAME
€ 2,859.50
1-3
4110027A04
ref: 1-3
MODEL H
FRAME
€ 2,859.50
1-4
4110027A21
ref: 1-4
MODEL F E15,E17,E22
FRAME
€ 2,859.50
1-5
4110027A22
ref: 1-5
MODEL G E15,E17,E22
FRAME
€ 2,859.50
1-6
4110027A24
ref: 1-6
MODEL H E15,E17,E22
FRAME
4110027A24
€ 2,859.50
2
4191127A00
ref: 2
PLATE,ENGINE MOUNTING NO
€ 11.50
3
0151708258
ref: 3
BOLT
0151708258
€ 2.50
4
0916008010
ref: 4
WASHER (8.2X20X1.6)
0916008010
€ 1.50
5
4192127A00
ref: 5
PLATE,ENGINE MOUNTING NO.1
4192127A00
€ 19.00
6
0711008408
ref: 6
BOLT
€ 3.50
7
0916008010
ref: 7
WASHER (8.2X20X1.6)
0916008010
€ 1.50
8
4193127A00
ref: 8
PLATE,ENGINE MOUNTING NO
4193127A00
€ 20.00
9
0711008458
ref: 9
BOLT, RH
€ 3.00
10
0831931087
ref: 10
NUT
0831931087
€ 2.50
11
4157504A00
ref: 11
CAP,ENGINE MOUNTING
4157504A00
€ 2.00
12-1
4398027A00
ref: 12-1
TO 43980-27A01 WITH
GRIP,REAR
€ 73.50
12-2
4398027A01
ref: 12-2
F.NO.103095~
GRIP,REAR
€ 73.50
12-3
4398006B00
ref: 12-3
MODEL G
GRIP COMP,REAR
€ 81.00
12-4
4398006B01
ref: 12-4
MODEL H
GRIP COMP,REAR
4398006B01
€ 81.00
13
4743127A01
ref: 13
HOLDER,TOOL
4743127A01
€ 35.50
14-1
0980000295
ref: 14-1
MODEL F/G
TOOL ASSY
€ 50.00
14-2
0980000344
ref: 14-2
MODEL H
TOOL ASSY
€ 50.00
15
0932005008
ref: 15
MODEL F
CUSHION
0932005008
€ 5.00
