AIR CLEANER

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

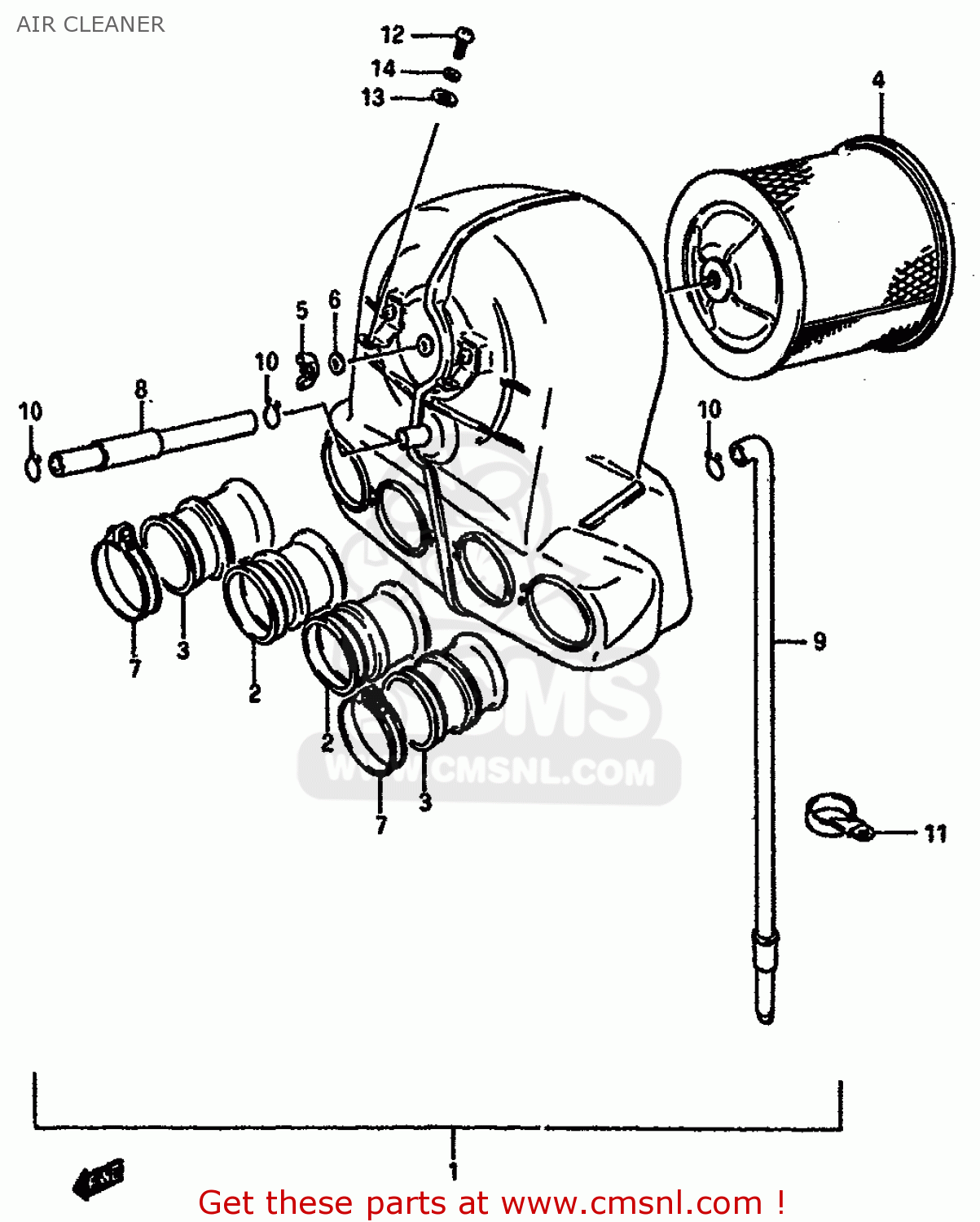

Air cleaner diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

AIR CLEANER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
AIR CLEANER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
AIR CLEANER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
1370027A01
ref: 1-1
CLEANER ASSEMBLY,AIR
€ 206.50
1-2
1370027A11
ref: 1-2
MODEL H E18
CLEANER ASSY,AIR
1370027A11
€ 320.00
2
1388127A00
ref: 2
TUBE,OUTLET NO.1
1388127A00
€ 16.00
3
1388227A00
ref: 3
TUBE,OUTLET NO.2
1388227A00
€ 17.50
4-1
1378027A00
ref: 4-1
FILTER ASSY
1378027A00
€ 46.00
4-2
1378027A10
ref: 4-2
MODEL H E18
FILTER ASSY,AIR
1378027A10
€ 46.00
5
0831712058
ref: 5
NUT, WING
€ 2.00
6
0832211058
ref: 6
WASHER 5MM
0832211058
€ 2.50
7
0940256207
ref: 7
CLAMP
€ 3.50
8
1385027A00
ref: 8
TUBE,BREATHER
€ 6.00
9
1387021447
ref: 9
DRAIN TUBE
€ 23.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
1387927A01
ref: 11
CLAMP,AIR CLEANER DRAIN TUBE
€ 4.50
12
0211206208
ref: 12
SCREW
€ 2.00
13
0916006019
ref: 13
WASHER(6.5X16X1.2)
0916006019
€ 1.50
14
0832191067
ref: 14
LOCK WASHER
€ 0.00
