SPEEDOMETER

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

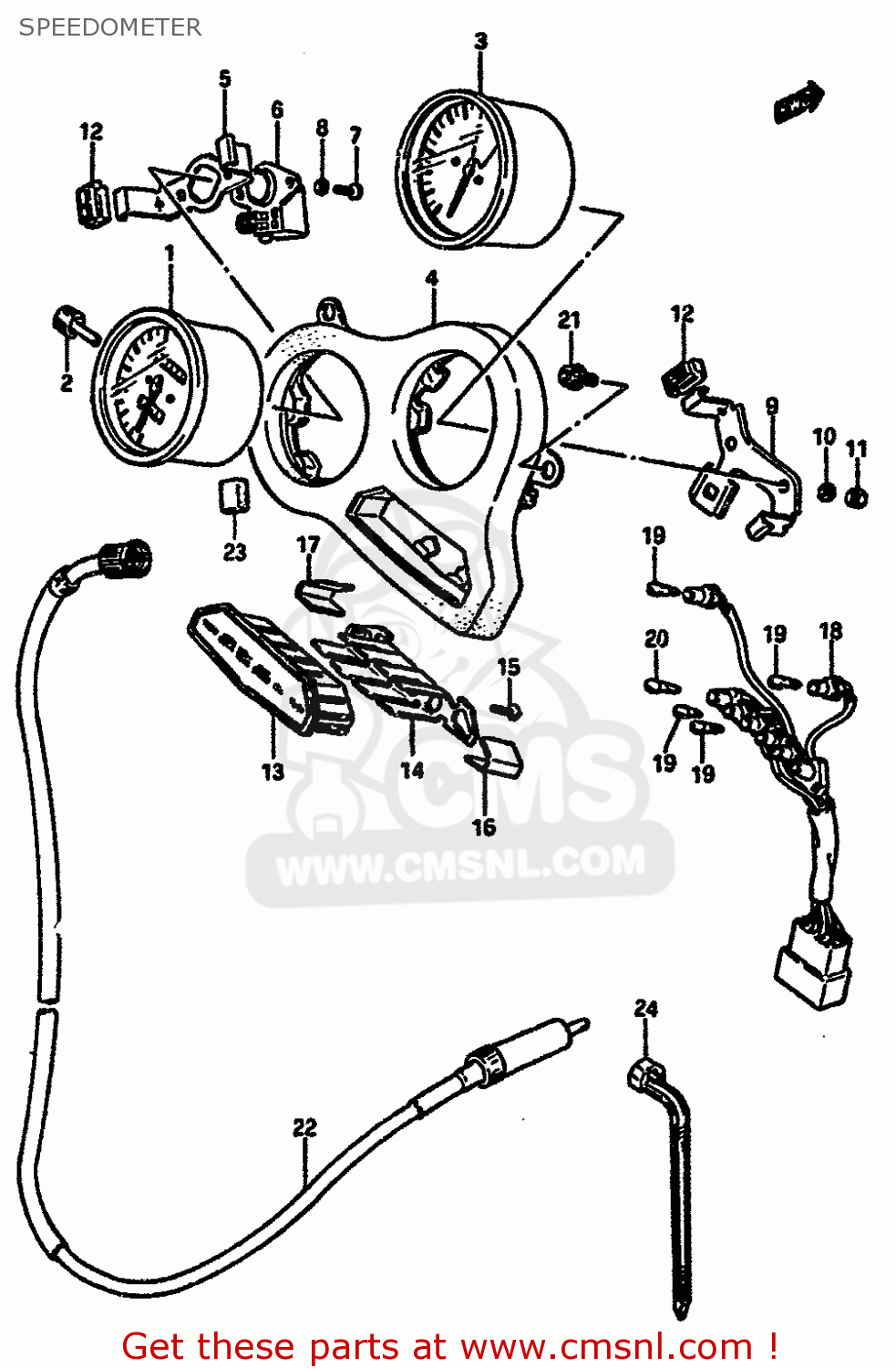

Speedometer diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

SPEEDOMETER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
SPEEDOMETER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
SPEEDOMETER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
3411027A10
ref: 1-1
SPEEDOMETER (KILO)
3411027A10
€ 361.50
1-2
3411027A20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 360.00
2
3412427A00
ref: 2
KNOB,TRIP
3412427A00
€ 7.50
3-1
3421027A00
ref: 3-1
TACHOMETER
3421027A00
€ 458.50
3-2
3421027A60
ref: 3-2
MODEL G/H E18
TACHOMETER (R/MIN)
€ 458.50
3-2
3421027A80
ref: 3-2
E24
TACHMETER (RPM)
€ 458.50
4-1
3495027A10
ref: 4-1
MODEL F
BRACKET,METER SUB ASSEMBLY
3495027A10
€ 66.00
4-2
3495027A11
ref: 4-2
MODEL G/H
BRACKET, METER
3495027A11
€ 61.50
5
3411127A00
ref: 5
PLATE,SPEEDOMETER
3411127A00
€ 19.00
6
3413127A00
ref: 6
BOX,METER GEAR
3413127A00
€ 116.50
7
0211204105
ref: 7
SCREW
€ 2.00
8
0832121045
ref: 8
LOCK WASHER
€ 2.00
9
3421127A00
ref: 9
PLATE,TACHOMETER
3421127A00
€ 24.50
10
3418127A00
ref: 10
WASHER
€ 2.00
11
0831021035
ref: 11
NUT
0831021035
€ 1.50
12
3418927A00
ref: 12
CUSHION
3418927A00
€ 6.00
13-1
3638127A10
ref: 13-1
CASE,PILOT LAMP
€ 45.00
13-2
3638127A40
ref: 13-2
E15,E16,E18,E22 MODE
CASE, PILOT LAMP
€ 45.00
13-3
3638127A70
ref: 13-3
E17
CASE, PILOT LAMP
€ 0.00
14
3638227A00
ref: 14
PLATE,PILOT LAMP
3638227A00
€ 18.50
15
3638727A00
ref: 15
SCREW
€ 2.00
16
3638327A00
ref: 16
PLATE,TURN,R
3638327A00
€ 14.50
17
3638427A00
ref: 17
PLATE,TURN,L
3638427A00
€ 9.50
18-1
3417027A10
ref: 18-1
SOCKET
€ 92.50
18-2
3417027A40
ref: 18-2
E15,E16,E18,E22 MODE
SOCKET, METER
3417027A40
€ 92.50
19-1
0947112085
ref: 19-1
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
19-2
0947112085
ref: 19-2
E15,E16,E18,E22 MODE
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
20
0947112100
ref: 20
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
21
0712006125
ref: 21
BOLT
€ 3.50
22
3491027A01
ref: 22
CABLE ASSEMBLY,SPEEDOMETER
3491027A01
€ 25.50
23
3419127A00
ref: 23
CUSHION,METER
€ 2.00
24
0940711401
ref: 24
CLAMP(L:95)
0940711401
€ 2.50
