REAR SHOCK ABSORBER

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

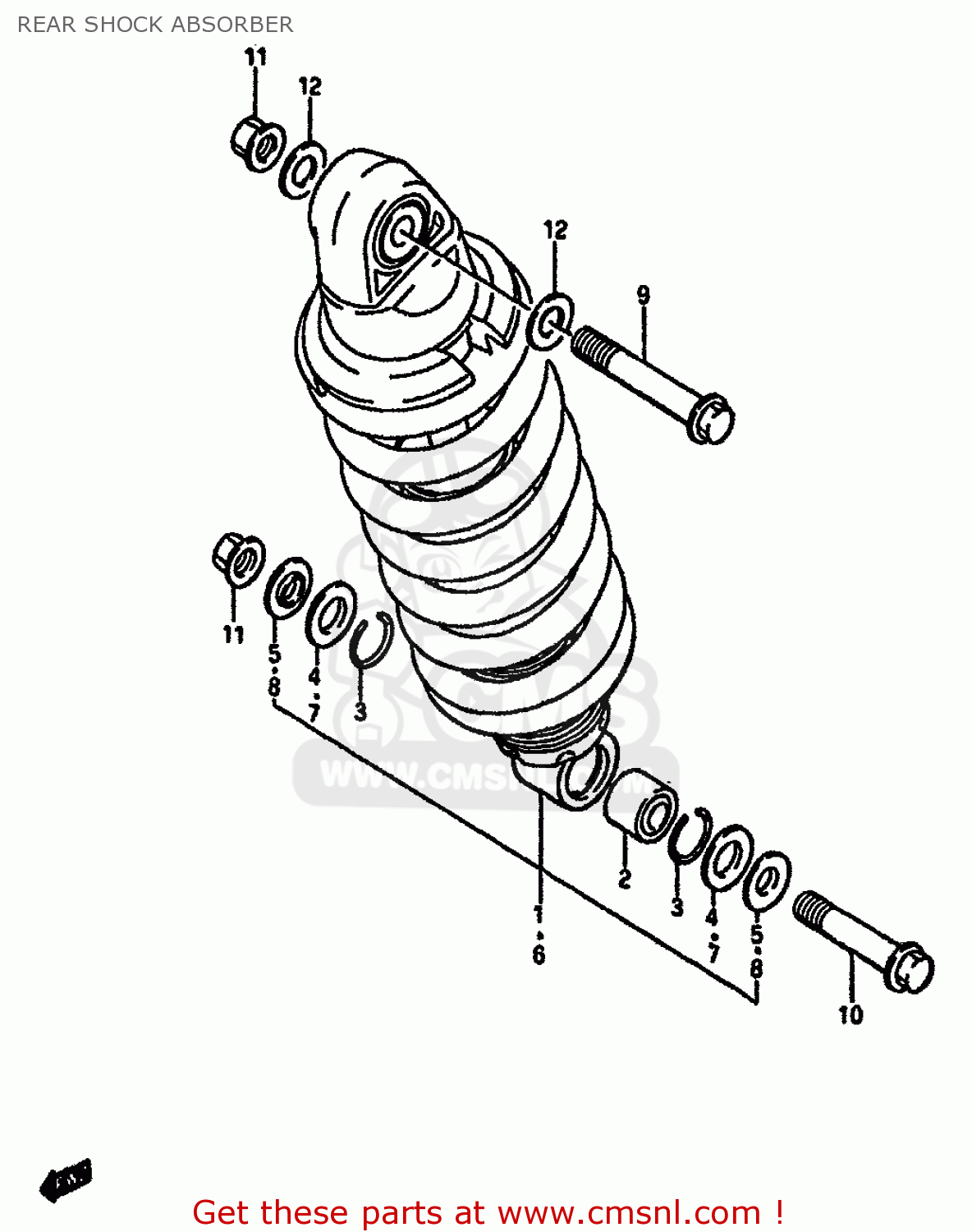

Rear shock absorber diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

6210027A00
ref: 1
MODEL F/G

ABSORBER ASSEMBLY,REAR SHOCK

€ 740.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

6222600A00
ref: 4

SEAL,DUST UPR

€ 8.00

6268400A00
ref: 5

COLLAR,UPR

€ 13.00

6210027A50
ref: 6
MODEL H

ABSORBER ASSY,RR SHOCK

€ 740.00

6222627A20
ref: 7

SEAL DUST

€ 7.50

6268427A50
ref: 8

COLLAR

€ 12.50

6231108300
ref: 9

BOLT

€ 11.50

6264814500
ref: 10

BOLT,RR CUSHION ROD UPR

€ 3.00

0831931107
ref: 11

NUT

€ 3.00

6232127A00
ref: 12

WASHER,REAR SHOCK ABSORBER

€ 4.00
