REAR SWINGING ARM

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

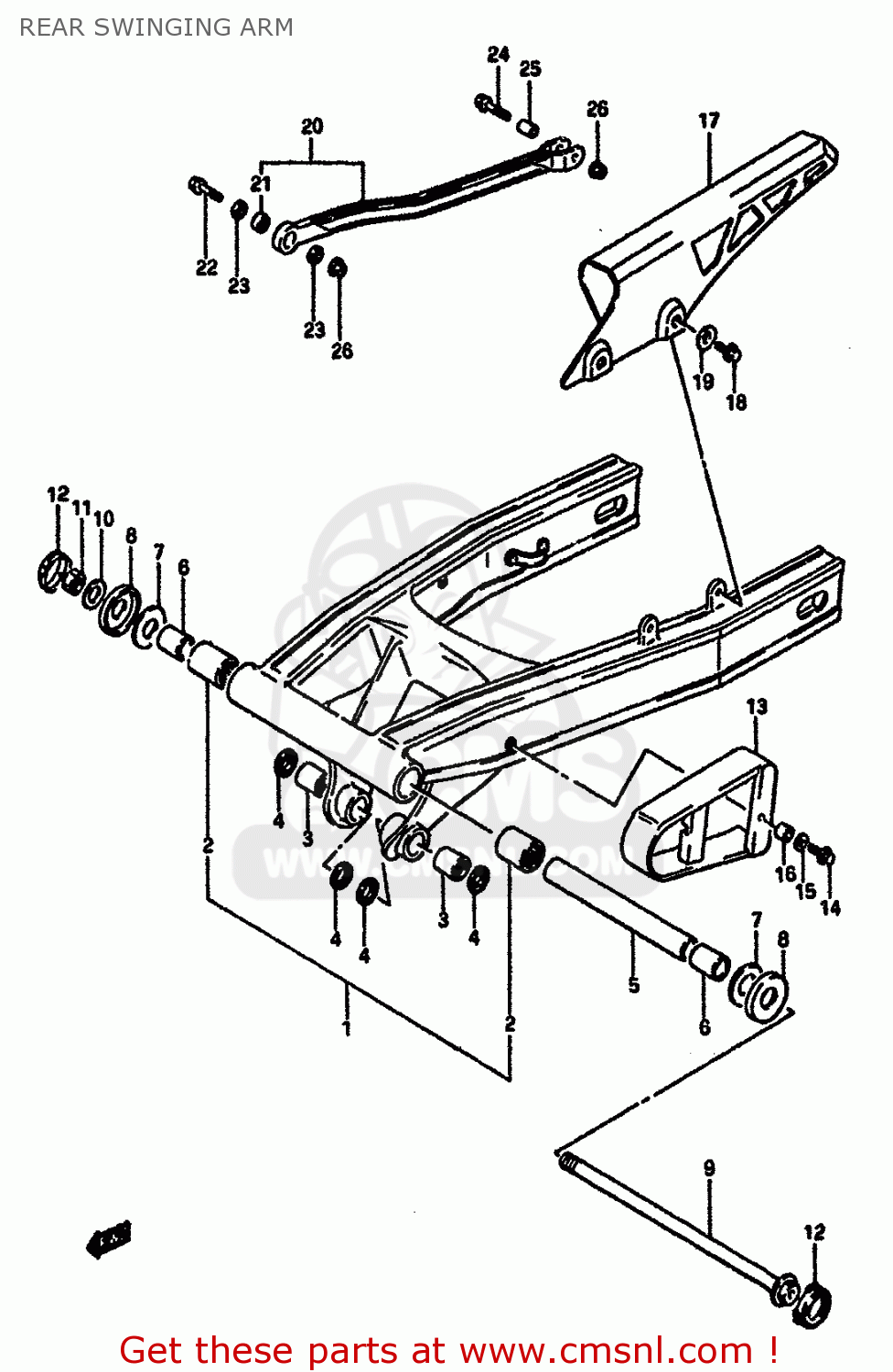

Rear swinging arm diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

REAR SWINGING ARM GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
REAR SWINGING ARM GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
REAR SWINGING ARM GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
6100027A00
ref: 1-1
MODEL F
SWING ARM ASSEMBLY,REAR
€ 856.50
1-2
6100027A20
ref: 1-2
MODEL G/H
SWING ARM ASSEMBLY,REAR
€ 958.50
2
0926322025
ref: 2
BEARING(22X29X25)
0926322025
€ 31.50
3
0926317029
ref: 3
ROLLER BEARING (17X24X25))
0926317029
€ 19.00
4
6264702B00
ref: 4
SPACER,REAR CUSHION ROD
6264702B00
€ 3.50
5
6128227A00
ref: 5
SPACER,RR SWGARM PIVOT CTR
6128227A00
€ 20.50
6
6125127A00
ref: 6
SPACER,RR SWGARM PIVOT BEARING
6125127A00
€ 23.00
7
0821116381
ref: 7
WASHER
0821116381
€ 2.50
8
6126249000
ref: 8
COVER,RR SWGARM DUST SEAL
6126249000
€ 17.50
9
6121127A01
ref: 9
SHAFT,REAR SWING ARM
€ 43.50
10
0916014015
ref: 10
WASHER(14X27X3)
0916014015
€ 4.00
11
0915914013
ref: 11
NUT
0915914013
€ 8.50
12
6122243400
ref: 12
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
13
6127327A00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
6127327A00
€ 26.00
14
0110706206
ref: 14
BOLT,M6X1X20
0110706206
€ 2.00
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
0916006019
€ 1.50
16
0918006135
ref: 16
SPACER(6.5X8.5X5.8)
0918006135
€ 2.00
17
6131027A01
ref: 17
CASE,CHAIN
6131027A01
€ 48.00
18
0151706105
ref: 18
BOLT
€ 2.50
19
0916906026
ref: 19
WASHER
0916906026
€ 2.00
20-1
6430027830
ref: 20-1
MODEL F
TORQUE LINK SET,REAR
6430027830
€ 139.00
20-2
6430027840
ref: 20-2
MODEL G/H
TORQUE LINK SET,REAR
6430027840
€ 120.50
21
6435240411
ref: 21
SPHERICAL BEARING,TORQUE
€ 69.50
22
0910308178
ref: 22
BOLT(8X38)
0910308178
€ 5.00
23
6433940410
ref: 23
6433940410
24
0910308142
ref: 24
BOLT(8X35)
0910308142
€ 3.00
25
6433620A00
ref: 25
SPACER,RR TORQUE LINK RR
6433620A00
€ 8.00
26
0831931087
ref: 26
NUT
0831931087
€ 2.50
