REAR CUSHION LEVER

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

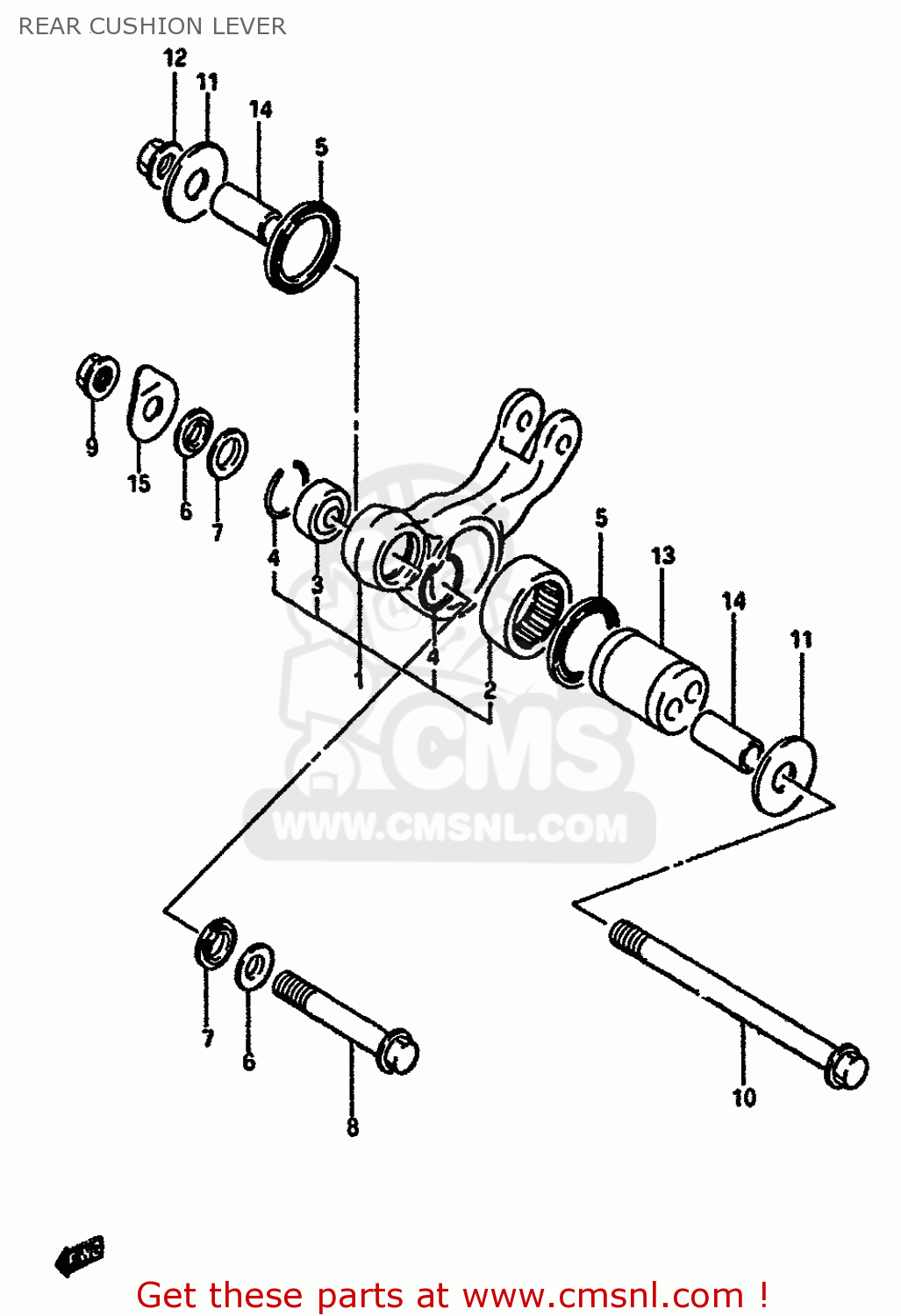

Rear cushion lever diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

REAR CUSHION LEVER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

REAR CUSHION LEVER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

1

6260027821
ref: 1

LEVER SET,REAR CUSHION

€ 230.00

2

0926335020
ref: 2

BEARING(35X45X20)

€ 30.00

3

0926912004
ref: 3

BEARING(12X26X16)

€ 65.00

4

6265705A00
ref: 4

RING,STOPPER

€ 2.50

5

6262402B00
ref: 5

SEAL,INNER DUST

€ 11.50

6

6231605A01
ref: 6

SPACER,RR CUSHION ROD

€ 8.00

7

6264705A00
ref: 7

SEAL,RR CUSHION ROD DUST

€ 2.50

8

6266827A00
ref: 8

BOLT,RR CUSHION LEVER FR

€ 13.50

9

0831931128
ref: 9

NUT 12MM

€ 4.00

10

6262127A20
ref: 10

SHAFT

€ 19.50

11

0916012076
ref: 11

WASHER(12X40X2.5)

€ 5.50

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13

6262327A21
ref: 13

SPACER,REAR CUSHION ECCENTRIC

€ 66.50

14

6264627A20
ref: 14

SPACER

€ 14.50

15

6266727A00
ref: 15

SHIM,REAR CUSHION LEVER

€ 4.00
