CAM CHAIN

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

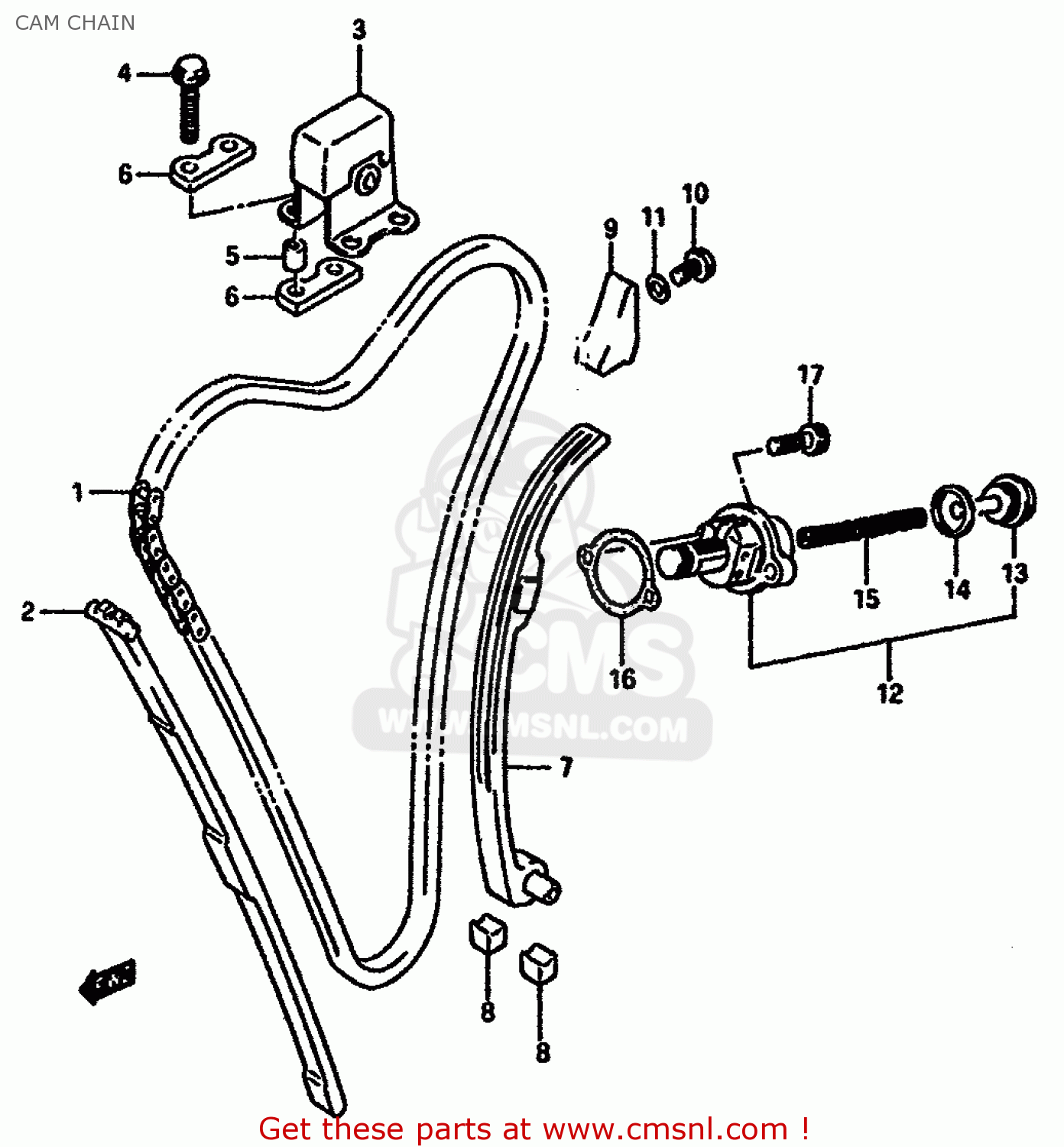

Cam chain diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

CAM CHAIN GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
CAM CHAIN GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
CAM CHAIN GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
1276027A01
ref: 1
FROM 12760-27A00
CHAIN,CAMSHAFT DRIVE
1276027A01
€ 125.50
2
1277127A00
ref: 2
GUIDE,CAM CHAIN NO.1
1277127A00
€ 38.50
3
1278027A02
ref: 3
IDLER,CAM CHAIN
1278027A02
€ 84.00
4
0151706258
ref: 4
BOLT
0151706258
€ 2.50
5
0918006143
ref: 5
SPACER
0918006143
€ 2.50
6
1278827A00
ref: 6
GUIDE,CAM CHAIN
€ 15.00
7
1281027A00
ref: 7
TENSIONER,CAM CHAIN
1281027A00
€ 62.00
8
1281434200
ref: 8
CUSHION,CAM CHAIN TENSIONER
1281434200
€ 6.50
9
1279127A00
ref: 9
GUIDE,CAM CHAIN NO.2
1279127A00
€ 6.00
10
0151706105
ref: 10
BOLT
€ 2.50
11
0916806023
ref: 11
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
12
1283027A05
ref: 12
FROM 12830-27A03
ADJUSTER ASSEMBLY,TENSIONER
€ 617.00
13
1283427A00
ref: 13
PLUG
1283427A00
€ 20.50
14
1283227A00
ref: 14
GASKET (NAS)
1283227A00
€ 5.50
15
1283327A00
ref: 15
SPRING
1283327A00
€ 17.00
16
1283727A00
ref: 16
GASKET,TENSIONER ADJUSTER (NAS)
1283727A00
€ 8.50
17
0711006255
ref: 17
BOLT
0711006255
€ 3.00
