REAR MASTER CYLINDER

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

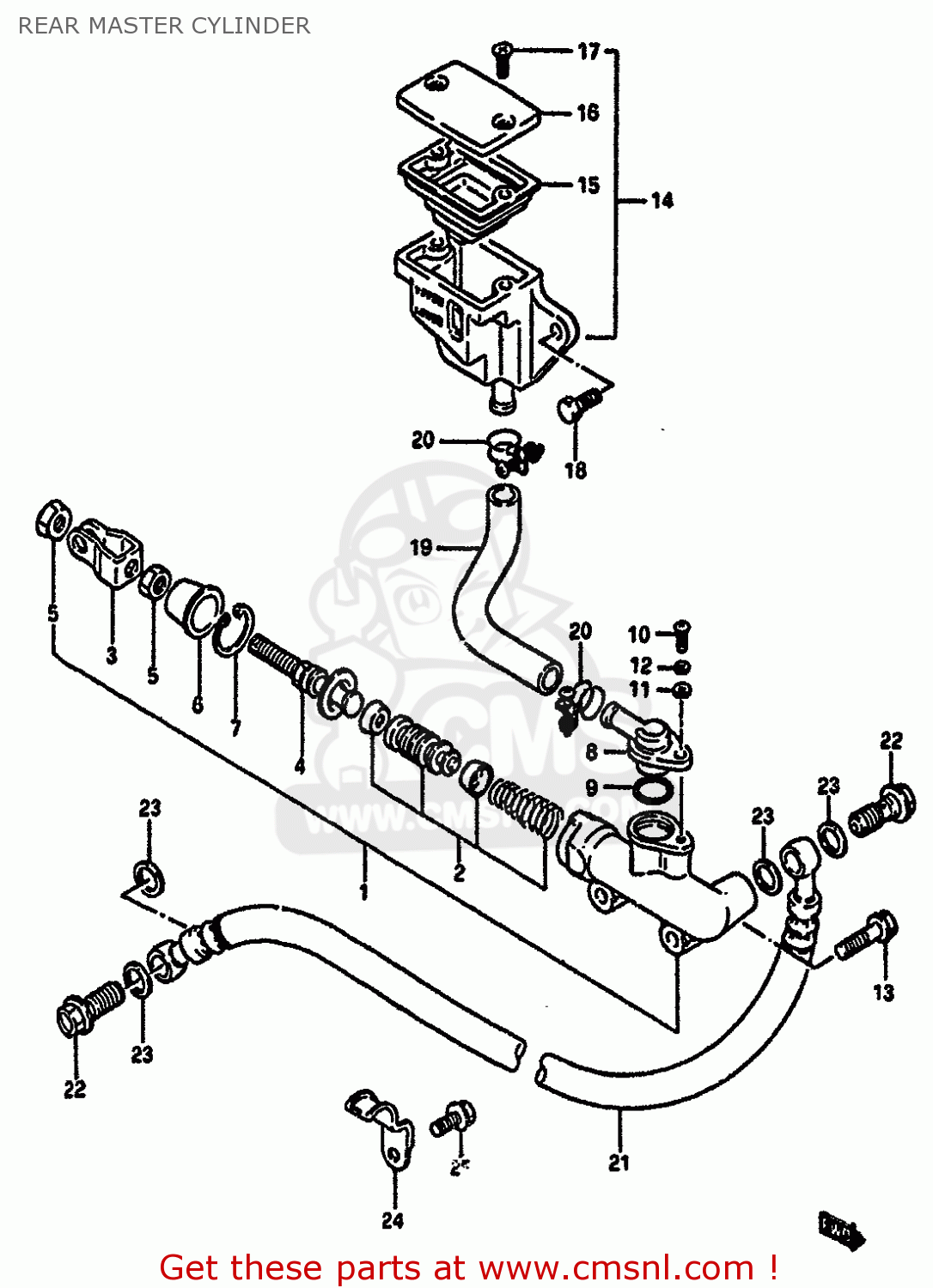

Rear master cylinder diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

REAR MASTER CYLINDER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
REAR MASTER CYLINDER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
REAR MASTER CYLINDER GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
6960027A00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
6960027A00
€ 178.00
2
6960016820
ref: 2
PISTON/CUP SET
6960016820
€ 42.50
3
6969219A00
ref: 3
YOKE
6969219A00
€ 10.50
4
6967027A00
ref: 4
ROD,PUSH
€ 13.50
5
6969305A00
ref: 5
NUT
6969305A00
€ 1.50
6
6969100A00
ref: 6
BOOT
6969100A00
€ 3.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
6967205A00
ref: 8
CONNECTOR
6967205A00
€ 4.50
9
6968634200
ref: 9
O RING
6968634200
€ 3.50
10
0211204124
ref: 10
SCREW
€ 1.50
11
0832221045
ref: 11
WASHER
€ 5.00
12
0832121045
ref: 12
LOCK WASHER
€ 2.00
13
0910606056
ref: 13
BOLT 6X23
€ 0.00
14
6974027A31
ref: 14
TANK ASSEMBLY,RESERVOIR
6974027A31
€ 58.00
15
5966704700
ref: 15
DIAPHRAGM
5966704700
€ 8.00
16
5966904710
ref: 16
CAP
5966904710
€ 12.00
17
6968904A00
ref: 17
SCREW
6968904A00
€ 2.00
18
0110706127
ref: 18
BOLT
0110706127
€ 2.00
19
6973127A00
ref: 19
HOSE,RESERVOIR TANK
6973127A00
€ 12.00
20
0940016302
ref: 20
CLAMP
0940016302
€ 4.50
21-1
6948027A02
ref: 21-1
MODEL F
HOSE,REAR BRAKE
€ 97.00
21-2
6948027A10
ref: 21-2
MODEL G/H
HOSE,REAR BRAKE
€ 104.50
22
0936010017
ref: 22
BOLT UNION
0936010017
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
0916110009
€ 2.00
24-1
6119604A00
ref: 24-1
MODEL F
GUIDE,REAR BRAKE HOSE
€ 7.00
24-2
6119606B01
ref: 24-2
MODEL G/H
CLAMP,REAR BRAKE HOSE NO
€ 3.00
25
0151705128
ref: 25
BOLT
€ 2.50
