OIL PUMP

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

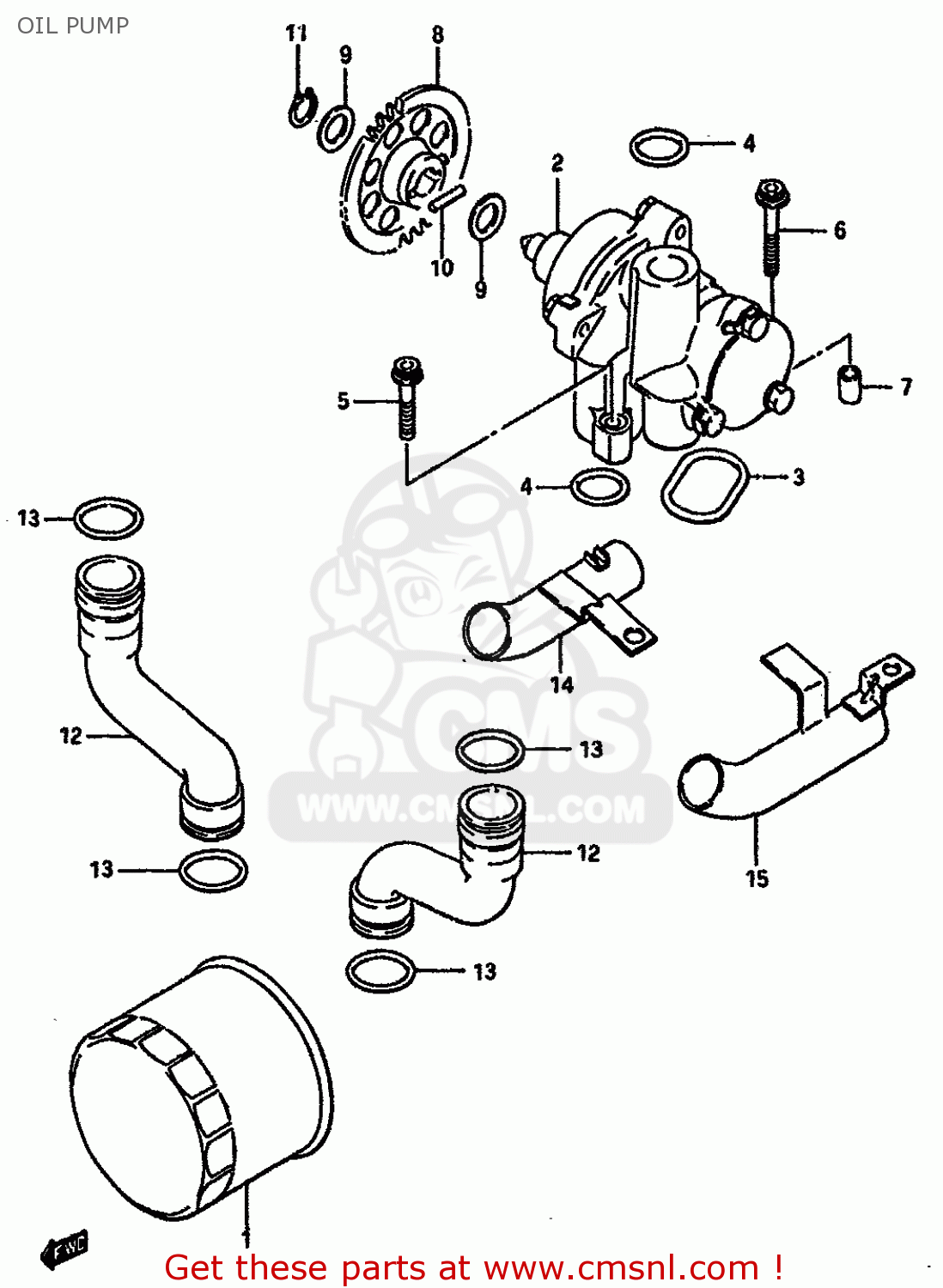

Oil pump diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

OIL PUMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
OIL PUMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
OIL PUMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
1651005A00
ref: 1
FILTER ASSY,ENGINE OIL
1651005A00
€ 8.50
2
1640027A00
ref: 2
PUMP ASSEMBLY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
1649127A01
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
5
0712006308
ref: 5
BOLT
€ 2.50
6
0712006358
ref: 6
BOLT
€ 3.50
7
0421109129
ref: 7
PIN
0421109129
€ 2.00
8-1
1633127A01
ref: 8-1
GEAR,OIL PUMP DRIVEN
€ 54.00
8-2
1633227A01
ref: 8-2
GEAR,OIL PUMP DRIVEN
€ 37.50
9
0822112205
ref: 9
SHIM
0822112205
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
0926105006
€ 1.50
11
0833131128
ref: 11
CIRCLIP
0833131128
€ 2.00
12
1648027A03
ref: 12
HOSE,OIL
€ 47.00
13-1
0928022015
ref: 13-1
~E.NO.131290 TO 0928
O-RING
€ 5.50
13-2
0928022016
ref: 13-2
E.NO.131291~
O RING(D:3.7,ID:21.7)
0928022016
€ 5.50
14
1653027A00
ref: 14
PIPE,OIL,OUTLET,UNDER
€ 22.00
15
1654027A00
ref: 15
PIPE,OIL,OUTLET,UNDER
€ 23.00
