FUEL COCK

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

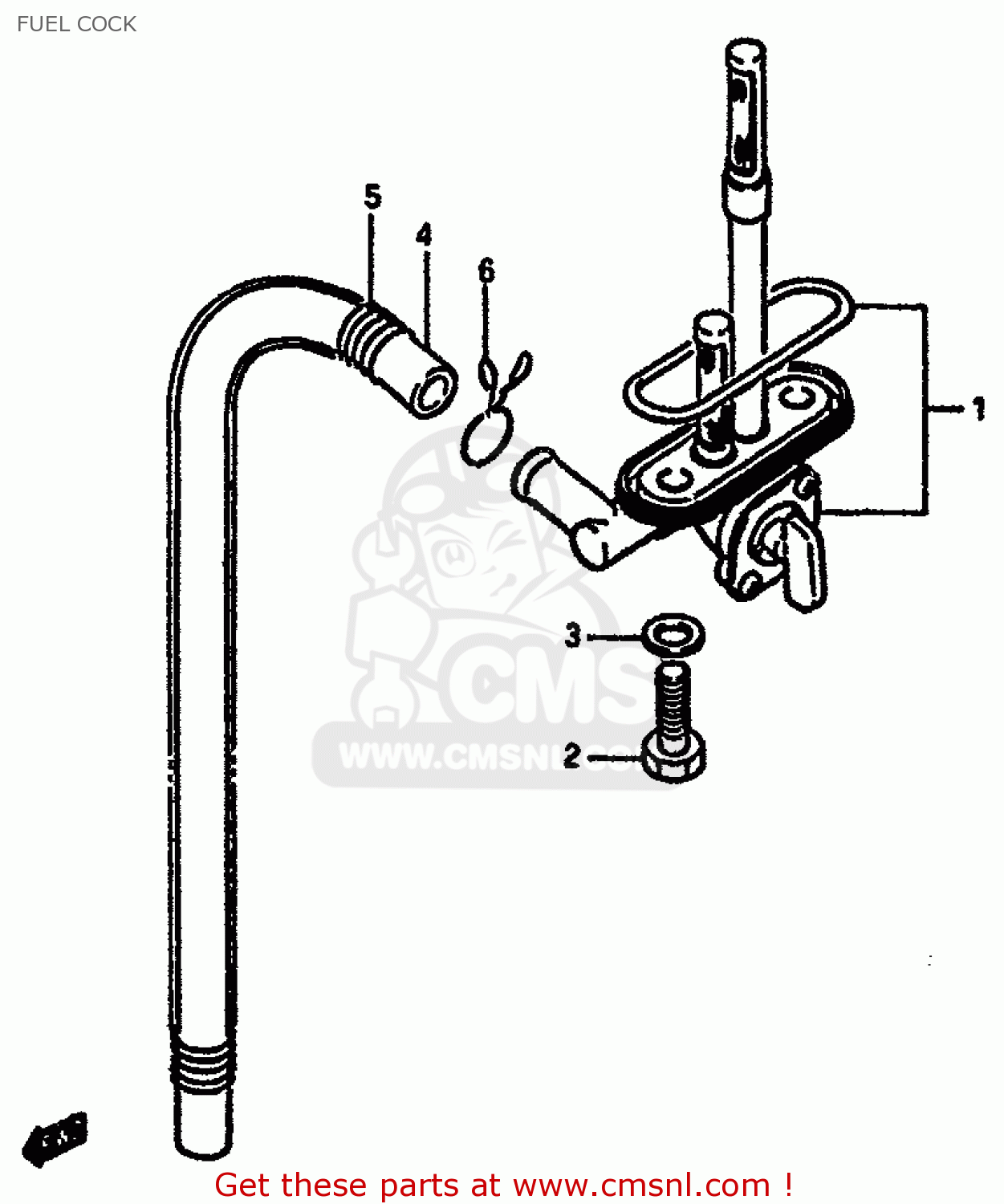

Fuel cock diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

FUEL COCK GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

FUEL COCK GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

1-1

4430027A00
ref: 1-1
MODEL F/G

COCK ASSY,FUEL

€ 125.00

1-2

4430028A02
ref: 1-2
MODEL H

COCK ASSY,FUEL

€ 131.50

2

0912806006
ref: 2

BOLT(6X20)

€ 2.00

3

0916806010
ref: 3

GASKET

€ 2.00

4

0934307152
ref: 4

HOSE

€ 17.50

5

0944013020
ref: 5

SPRING

€ 14.50

6

0940110402
ref: 6

CLIP

€ 7.00
