GEAR SHIFTING

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

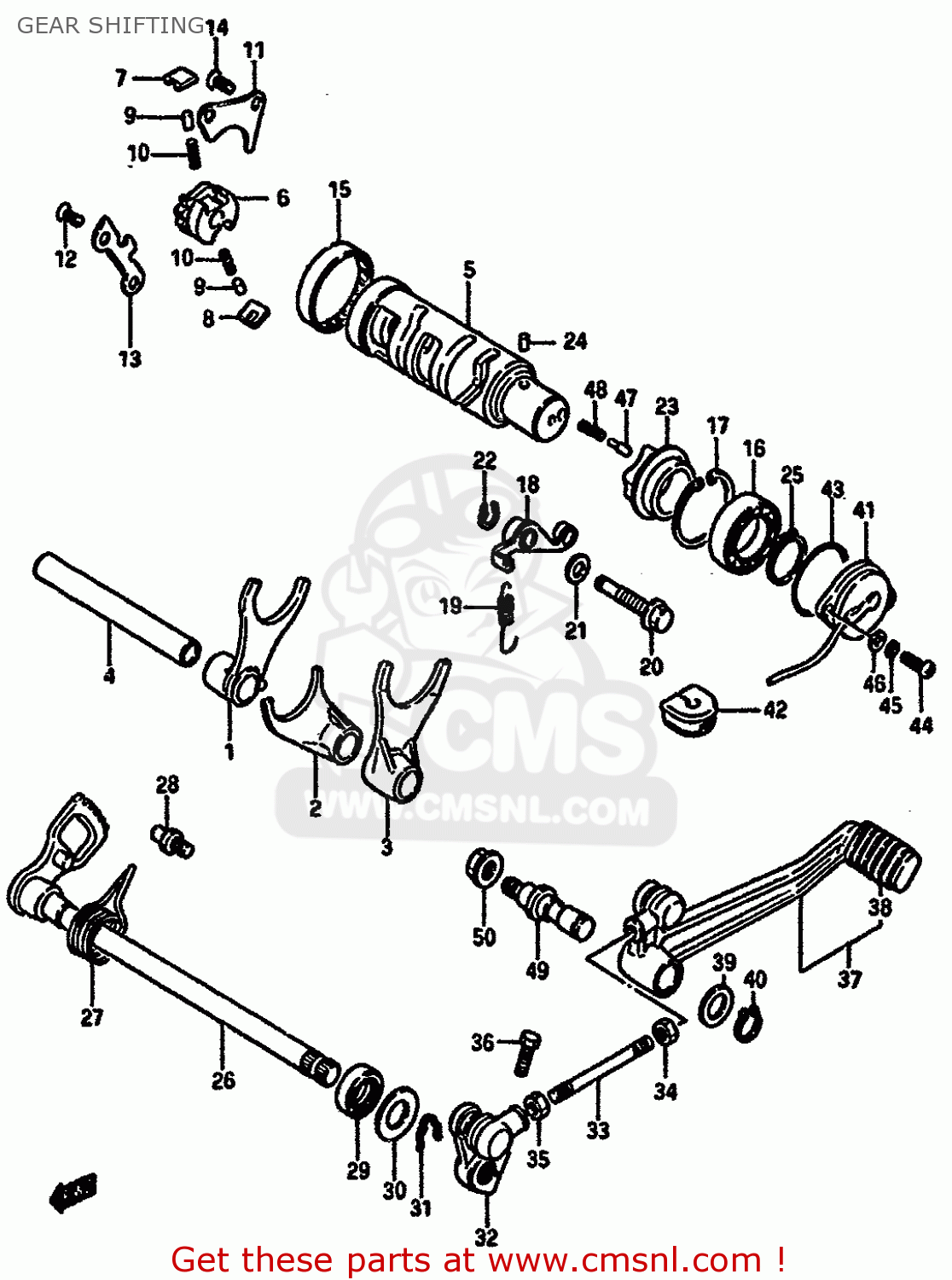

Gear shifting diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

GEAR SHIFTING GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
GEAR SHIFTING GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
GEAR SHIFTING GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
2522127A01
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
2523127A00
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531027A01
ref: 5
-25310-27A00
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
2533131301
€ 7.00
12
0212206128
ref: 12
SCREW
0212206128
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
2534127A00
€ 8.50
14
0212206128
ref: 14
SCREW
0212206128
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
0926343001
€ 30.00
16
0811069050
ref: 16
BALL BEARING
0811069050
€ 36.00
17
0833141428
ref: 17
CIRCLIP,42MM
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
2535027A00
€ 13.00
19
0944309031
ref: 19
SPRING
0944309031
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
2535327A00
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
22
0833131086
ref: 22
CIRCLIP
0833131086
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
2538138400
€ 22.00
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0833131258
ref: 25
CIRCLIP,25MM
€ 2.00
26
2551027A00
ref: 26
SHAFT,GEAR SHIFT
2551027A00
€ 91.50
27
0944426017
ref: 27
SPRING
0944426017
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
0916012020
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
0938412001
€ 2.00
32
2552033301
ref: 32
ARM,GEAR SHIFT
2552033301
€ 53.50
33
2552527A10
ref: 33
ROD,GEAR SHIFT LINK
€ 6.00
34
0914006011
ref: 34
NUT
0914006011
€ 1.50
35
0831011067
ref: 35
NUT 6MM
€ 2.50
36
0110706257
ref: 36
BOLT
€ 2.00
37
2560027A00
ref: 37
LEVER ASSY,GEAR SHIFT
2560027A00
€ 97.50
38
4315104701
ref: 38
RUBBER,BRAKE PEDAL
4315104701
€ 6.00
39
0916012011
ref: 39
WASHER(12.5X20X1)
0916012011
€ 1.50
40
0833131128
ref: 40
CIRCLIP
0833131128
€ 2.00
41
3772009300
ref: 41
TERMINAL BASE,NEUTRAL SWITCH
3772009300
€ 54.00
42
3388527A00
ref: 42
GROMMET,LEAD WIRE
€ 20.50
43
0928036001
ref: 43
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
44
0912505102
ref: 44
SCREW(5X14)
0912505102
€ 2.50
45
0832121057
ref: 45
LOCK WASHER
0832121057
€ 2.00
46
0832221057
ref: 46
WASHER
0832221057
€ 2.50
47
0920905011
ref: 47
PIN(5X15.5)
0920905011
€ 2.00
48
0944004010
ref: 48
SPRING
0944004010
€ 1.50
49
2561720A00
ref: 49
SHAFT,GEAR SHIFT LEVER
2561720A00
€ 37.00
50
0831616108
ref: 50
NUT
0831616108
€ 2.00
