CARBURETOR

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

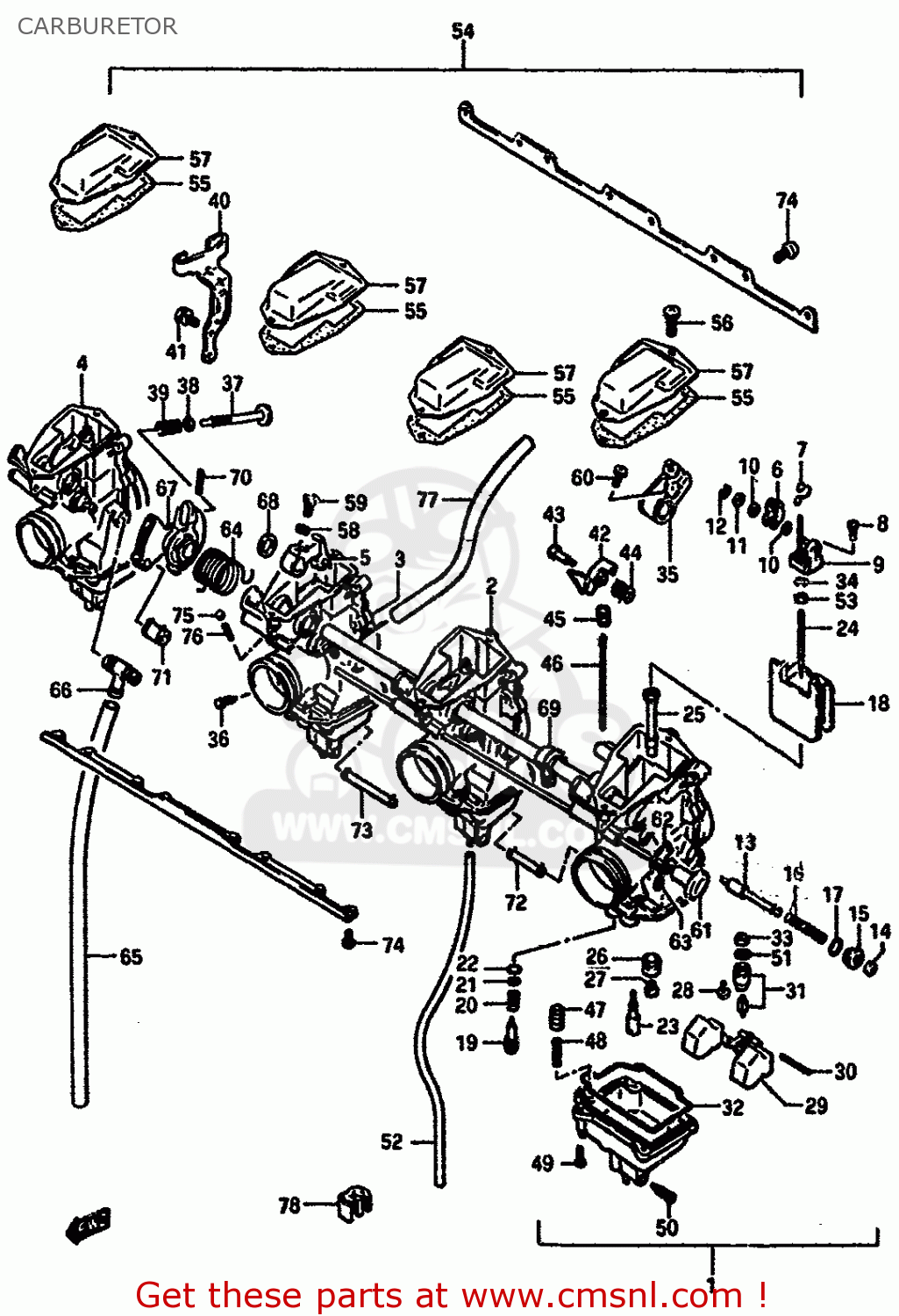

Carburetor diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

CARBURETOR GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
CARBURETOR GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
CARBURETOR GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
1320127A01
ref: 1-1
MODEL F TO 13201-27A
CARBURETOR ASSY,LH
€ 519.50
1-2
1320127A02
ref: 1-2
MODEL G
CARBURETOR ASSY, LH
1320127A02
€ 519.50
1-3
1320127B20
ref: 1-3
MODEL H
CARBURETOR ASSY,LH
€ 535.50
2-1
1320227A01
ref: 2-1
MODEL F TO 13202-27A
CARBURETOR ASSY,ML
€ 535.50
2-2
1320227A02
ref: 2-2
MODEL G
CARBURETOR ASSY, ML
1320227A02
€ 535.50
2-3
1320227B20
ref: 2-3
MODEL H
CARBURETOR ASSY,ML
€ 535.50
3-1
1320327A01
ref: 3-1
MODEL F TO 13203-27A
CARBURETOR ASSY,MR
€ 628.00
3-2
1320327A02
ref: 3-2
MODEL G
CARBURETOR ASSY, MR
1320327A02
€ 628.00
3-3
1320327B20
ref: 3-3
MODEL H
CARBURETOR ASSY,MR
€ 628.00
4-1
1320427A01
ref: 4-1
MODEL F TO 13204-27A
CARBURETOR ASSY,RH
1320427A01
€ 628.00
4-2
1320427A02
ref: 4-2
MODEL G
CARBURETOR ASSY, RH
€ 628.00
4-3
1320427B20
ref: 4-3
MODEL H
CARBURETOR ASSY,RH
€ 628.00
5
1354114A00
ref: 5
MR
ARM,THROTTLE
1354114A00
€ 34.50
6-1
1344714A00
ref: 6-1
MODEL F/G
PLATE
1344714A00
€ 16.50
6-2
1344727B10
ref: 6-2
MODEL H
PLATE
€ 0.00
7-1
1326827A00
ref: 7-1
MODEL F
SPRING
€ 4.00
7-2
1326827A02
ref: 7-2
MODEL G
SPRING
€ 9.50
7-3
1326827B10
ref: 7-3
MODEL H
SPRING
€ 0.00
8
1356614A00
ref: 8
SCREW
€ 2.50
9-1
1339827A00
ref: 9-1
MODEL F
CONNECTOR
€ 18.00
9-2
1339827A02
ref: 9-2
MODEL G/H
CONNECTOR
1339827A02
€ 18.00
10
1344514A00
ref: 10
GASKET (NAS)
1344514A00
€ 3.00
11
1344914A00
ref: 11
WASHER
€ 2.00
12
1329849000
ref: 12
E-RING
€ 2.00
13
1341105300
ref: 13
PLUNGER
1341105300
€ 23.50
14
1368231210
ref: 14
CAP,STARTER VALVE
1368231210
€ 5.00
15
1341844080
ref: 15
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
16
1341743010
ref: 16
SPRING
1341743010
€ 3.50
17
1327847090
ref: 17
O RING
1327847090
€ 2.00
18-1
1355127A00
ref: 18-1
MODEL F
VALVE,PISTON (CA:1.5)
€ 126.00
18-2
1355127A12
ref: 18-2
MODEL G/H
VALVE, PISTON
€ 126.00
19
1327947070
ref: 19
1/2
SCREW,PILOT
1327947070
€ 11.50
20
1326847070
ref: 20
SPRING
1326847070
€ 5.00
21
1327744080
ref: 21
GASKET
€ 2.00
22
1329529900
ref: 22
FROM 13278-44080
O RING,PILOT AIR SCREW
1329529900
€ 4.00
23
0949232003
ref: 23
JET,PILOT (32.5)
€ 13.50
24
1338327A00
ref: 24
6DP2-3
NEEDLE,JET
1338327A00
€ 16.50
25
0949400496
ref: 25
JET,NEEDLE(P-5)
0949400496
€ 24.00
26
1333113A00
ref: 26
RING,MAIN JET FIXING
1333113A00
€ 5.50
27
0949197003
ref: 27
JET,MAIN(97.5)
0949197003
€ 8.50
28
1360243410
ref: 28
SCREW
1360243410
€ 2.50
29-1
1325227A00
ref: 29-1
MODEL F/G
FLOAT
€ 27.00
29-2
1325028A00
ref: 29-2
MODEL H
FLOAT
1325028A00
€ 33.00
30
1325492311
ref: 30
PIN,FLOAT
1325492311
€ 2.00
31
1337044500
ref: 31
FROM 13370-27A00
VALVE ASSY,NEEDLE
1337044500
€ 40.50
32
1325127A00
ref: 32
O RING,FLOAT CHAMBER
1325127A00
€ 9.00
33
1337665010
ref: 33
FILTER
€ 6.50
34
1339410010
ref: 34
CLIP
1339410010
€ 4.50
35
1354127A00
ref: 35
LH,ML,RH
LEVER ASSY
1354127A00
€ 44.00
36
1360527A02
ref: 36
SCREW
1360527A02
€ 7.50
37
1326701400
ref: 37
MR
SCREW,THROTTLE STOP
1326701400
€ 10.00
38
1342738300
ref: 38
MR
WASHER
1342738300
€ 1.50
39
1326849310
ref: 39
MR
SPRING
€ 4.50
40
1362127A00
ref: 40
MR
BRACKET
1362127A00
€ 18.50
41
1360327A00
ref: 41
MR
SCREW
€ 1.50
42
1349027A00
ref: 42
LH,MR
LEVER
€ 9.50
43
1361314A00
ref: 43
LH,MR
BOLT
1361314A00
€ 8.00
44
1349427A00
ref: 44
LH,MR
SPRING,PLUNGER
1349427A00
€ 6.00
45
1349944500
ref: 45
LH,MR
BOOT, ACCELE PUMP ROD
1349944500
€ 11.00
46
1348727A00
ref: 46
LH,MR
ROD
1348727A00
€ 9.50
47
1349327A00
ref: 47
LH,MR
PLUNGER
1349327A00
€ 9.00
48
1327109400
ref: 48
LH,MR
SPRING
1327109400
€ 4.50
49
1360227A10
ref: 49
SCREW
€ 1.50
50
1324713A00
ref: 50
SCREW,DRAIN
1324713A00
€ 5.50
51-1
6626399050
ref: 51-1
MODEL F/G
O RING
6626399050
€ 6.00
51-2
1337444080
ref: 51-2
MODEL H
O-RING,NEEDLE VALVE
1337444080
€ 6.00
52
1368027A30
ref: 52
MODEL F/G
HOSE SET (3X5X525)
€ 15.50
53
1338247010
ref: 53
WASHER,JET NEEDLE
1338247010
€ 3.00
54-1
1321027A00
ref: 54-1
MODEL F
FLANG SET
€ 246.50
54-2
1321027A02
ref: 54-2
MODEL G
FLANG SET
€ 0.00
54-3
1321027B10
ref: 54-3
MODEL H
FLANG SET
€ 0.00
55
1326627A00
ref: 55
GASKET,CARBURETOR TOP (NAS)
1326627A00
€ 6.00
56
1360127A00
ref: 56
SCREW
€ 2.00
57
1326127A00
ref: 57
COVER,CARBURETOR,TOP
€ 14.50
58
1361445010
ref: 58
WASHER
€ 2.50
59
1361343010
ref: 59
BOLT
€ 1.50
60
1337184100
ref: 60
SCREW
€ 2.50
61
1341027A00
ref: 61
SHAFT ASSY
€ 36.00
62
1342227A00
ref: 62
LEVER
1342227A00
€ 6.50
63
1360509300
ref: 63
SCREW,THROTTLE ADJUST
1360509300
€ 3.50
64-1
1357327A00
ref: 64-1
MODEL F
SPRING
€ 8.00
64-2
1357327A02
ref: 64-2
MODEL G
SPRING
€ 8.00
64-3
1357327B10
ref: 64-3
MODEL H
SPRING
€ 0.00
65
1368427A00
ref: 65
HOSE
1368427A00
€ 18.00
66
1368547070
ref: 66
NIPPLE
1368547070
€ 25.00
67
1355527A00
ref: 67
LEVER ASSY
1355527A00
€ 74.50
68
1357438200
ref: 68
RING,THROTTLE SHAFT
1357438200
€ 4.00
69-1
1355527A00
ref: 69-1
MODEL F/G
LEVER ASSY
1355527A00
€ 74.50
69-2
1355327B10
ref: 69-2
MODEL H
SHAFT ASSY
€ 0.00
70
1356347070
ref: 70
PIN,THROTTLE SHAFT
€ 0.00
71
1368027A00
ref: 71
HOSE SET (3X5X18)
€ 6.00
72
1368027A10
ref: 72
HOSE SET (3X5X60)
€ 9.50
73
1368027A20
ref: 73
HOSE SET (3X5X72)
€ 9.50
74
0211205128
ref: 74
SCREW
€ 2.50
75
1359693010
ref: 75
BALL,CARBURETOR
1359693010
€ 3.50
76
1343443010
ref: 76
SPRING
1343443010
€ 6.50
77
1368306A20
ref: 77
MODEL H
HOSE
€ 6.50
78
0940800066
ref: 78
MODEL F/G
CLIP
0940800066
€ 1.50
