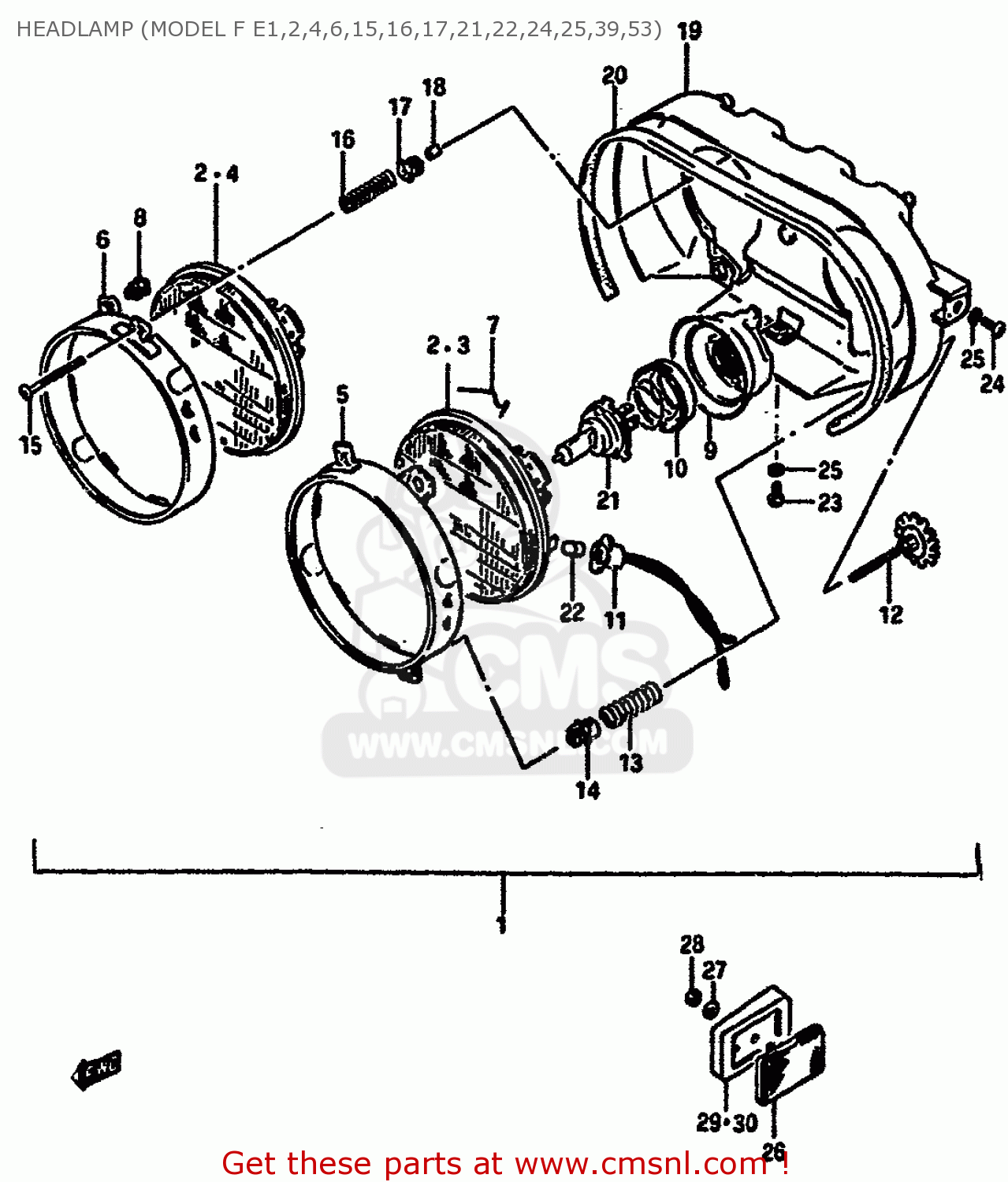

HEADLAMP (MODEL F E1,2,4,6,15,16,17,21,22,24,25,39,53)

ref

part #

description

quantity

1-1

3510027A33999
ref: 1-1
E1,E6,E24

HEADLAMP ASSY

€ 0.00

1-2

3510027A03999
ref: 1-2
E2

HEADLAMP ASSY

€ 325.00

1-3

3510027A42999
ref: 1-3
E4

HEADLAMP ASSY

€ 150.00

1-4

3510027A53999
ref: 1-4
E15,E17,E22,E39,E53

HEADLAMP ASSY

€ 150.00

1-5

3510027A62999
ref: 1-5
E16,E21

HEADLAMP ASSY

€ 0.00

1-6

3510027A72999
ref: 1-6
E25

HEADLAMP ASSY

€ 0.00

2-1

3512127A30
ref: 2-1
E1,E6,E24

LAMP UNIT

€ 0.00

2-2

3512127A00
ref: 2-2
E2

UNIT

€ 0.00

2-3

3512127A40
ref: 2-3
E16,E21

UNIT,LH

€ 67.50

3

3512127A40
ref: 3
E4,E15,E17,E22,E25,E

UNIT,LH

€ 67.50

4-1

3512127A50
ref: 4-1
E4,E15,E17,E22,E39,E

UNIT,RH

€ 62.50

4-2

3512127A70
ref: 4-2
E25

UNIT,RH

€ 0.00

5

3512627A00
ref: 5

RING,RETAINING,LEFT

€ 30.50

6

3512727A00
ref: 6

RING,RETAINING,RIGHT

€ 24.00

7

3512846720
ref: 7

SPRING

€ 4.50

8

3516204A00
ref: 8

SCREW,SPHERICAL

€ 2.00

9-1

3517320A01
ref: 9-1
E1,E2,E6,E24

COVER,SOCKET

€ 14.50

9-2

3517327A50
ref: 9-2
E4,E15,E16,E17,E21,E

COVER,HEADLAMP BULB

€ 4.00

10

3513627A50
ref: 10
E4,E15,E16,E17,E21,E

SETTING,BULB

€ 4.00

11-1

3611804A00
ref: 11-1
E2

SOCKET

€ 11.50

11-2

3611830500
ref: 11-2
E16,E21

SOCKET

€ 10.00

11-3

3611830500
ref: 11-3
E4,E15,E17,E22,E25,E

SOCKET

€ 10.00

12

3515327A00
ref: 12

SCREW,ADJUSTER

€ 3.50

13

3515404A00
ref: 13

SPRING

€ 4.00

14

3515227A00
ref: 14

NUT

€ 3.00

15

3515104A00
ref: 15

SCREW,ADJUSTER

€ 4.00

16

3515404A00
ref: 16

SPRING

€ 4.00

17

3515504A00
ref: 17

NUT

€ 5.50

18

3515843400
ref: 18

CAP,SCREW

€ 2.00

19

3524027A03
ref: 19
TO 35240-06B00

HOUSING

€ 76.50

20

3524227A00
ref: 20

GASKET (NAS)

€ 12.50

21-1

0947112102
ref: 21-1
E1,E2,E6,E24

BULB 12V 45/45W BF130-0

€ 52.50

21-2

0947112049
ref: 21-2
E4,EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

21-3

0947112048
ref: 21-3
E15,E16,E17,E21,E22,

BULB(12V45/40W)

€ 7.50

22-1

0947112001
ref: 22-1
E2

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

22-2

0947112063
ref: 22-2
E16,E21

BULB(12V4W)

€ 6.00

22-3

0947112063
ref: 22-3
E4,E15,E17,E22,E25,E

BULB(12V4W)

€ 6.00

23

0211206166
ref: 23

SCREW

€ 2.00

24

0211206106
ref: 24

SCREW

€ 1.50

25

0832121066
ref: 25

WASHER,LOCK

€ 2.00

26

3595001A30
ref: 26
E39

REFLEX REFLECTOR, FRONT SIDE

€ 9.00

27

0832221055
ref: 27
E39

WASHER,5MM

€ 2.50

28

0831012055
ref: 28
E39

NUT ,5MM

€ 2.50

29

3595427A00
ref: 29
E39

SPACER,FRONT SIDE,REAR,RIGHT

€ 3.50

30

3595527A00
ref: 30
E39

SPACER,FRONT SIDE,REAR,LEFT

€ 0.00
