TAIL LAMP-LICENSE LAMP

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

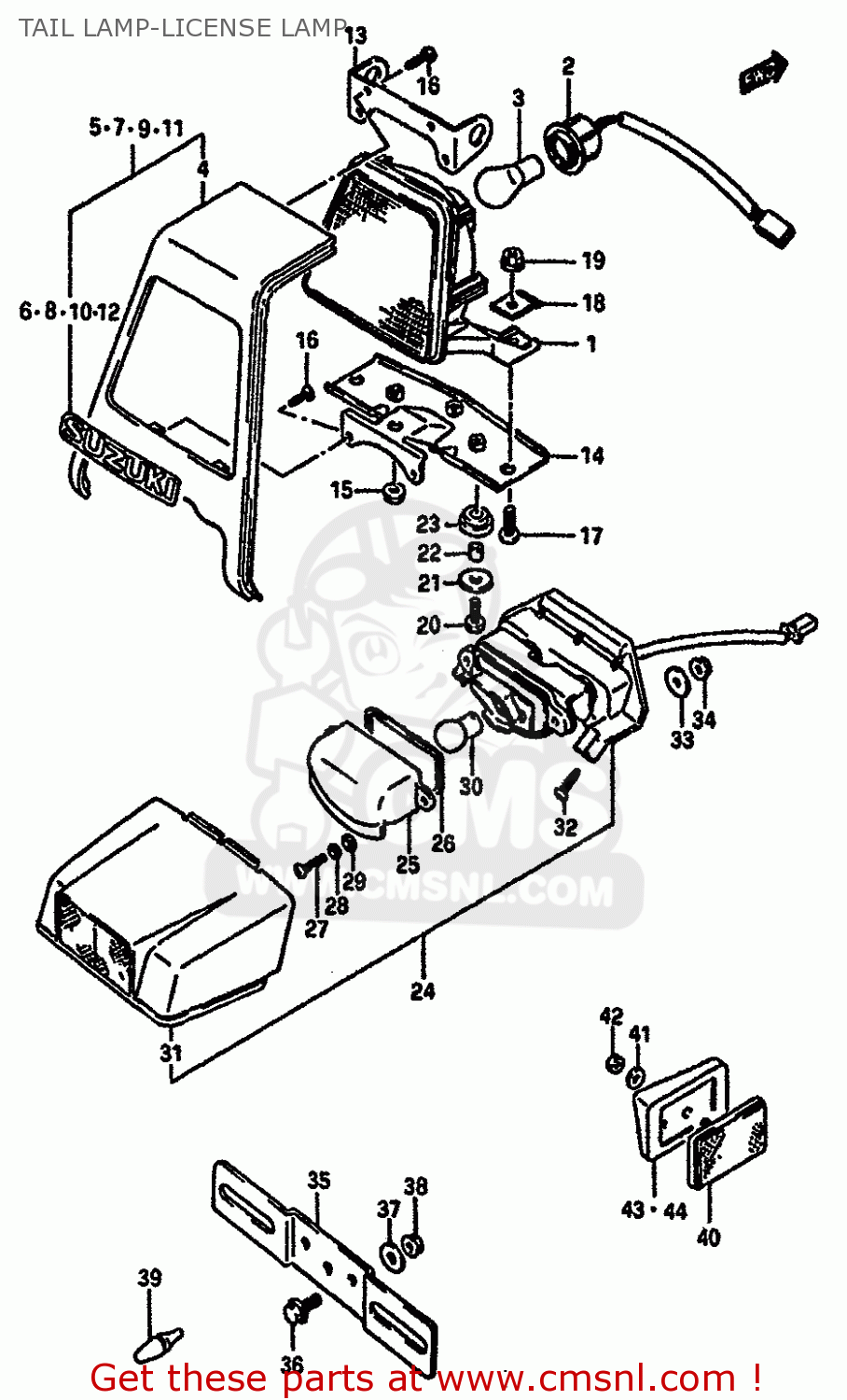

Tail lamp-license lamp diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

TAIL LAMP-LICENSE LAMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
TAIL LAMP-LICENSE LAMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
TAIL LAMP-LICENSE LAMP GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1-1
3574027A01
ref: 1-1
E1,E6,E24
UNIT,REAR COMBINATION LAMP
3574027A01
€ 62.00
1-2
3574027A21
ref: 1-2
E2,E4,E15,E16,E17,E1
UNIT,REAR COMBINATION LAMP
€ 77.00
1-3
3574027A60
ref: 1-3
E22
UNIT,REAR COMBINATION LAMP
€ 77.00
2
3571827A00
ref: 2
SOCKET & CORD ASSEMBLY
3571827A00
€ 29.00
3-1
0947112084
ref: 3-1
E1,E6,E24
BULB(12V23/8W,TOKAI DENSO)
0947112084
€ 6.00
3-2
0947112083
ref: 3-2
E2,E4,E15,E16,E17,E1
BULB(12V21/5W)
0947112083
€ 6.00
4-1
3579627A00019
ref: 4-1
MODEL F TO 35796-27A
COVER,TAIL LAMP
€ 130.50
4-2
3579627A0014L
ref: 4-2
MODEL F
COVER,TAIL LAMP
€ 130.50
5
3579627A10019
ref: 5
MODEL G
COVER,TAIL LAMP
3579627A10019
€ 130.50
6
681663130007G
ref: 6
MODEL G
EMBLEM
681663130007G
€ 4.50
7
3579627A1014L
ref: 7
MODEL G
COVER,TAIL LAMP
3579627A1014L
€ 130.50
8
6816631300742
ref: 8
MODEL G
EMBLEM
€ 5.00
9
3579627A1002X
ref: 9
MODEL H
COVER,TAIL LAMP
3579627A1002X
€ 130.50
10
6816631300742
ref: 10
MODEL H
EMBLEM
€ 5.00
11
3579627A1030H
ref: 11
MODEL H
COVER,TAIL LAMP
€ 130.50
12
6816631300019
ref: 12
MODEL H
EMBLEM
6816631300019
€ 4.00
13
3571627A00
ref: 13
PLATE
3571627A00
€ 14.50
14
3572627A00
ref: 14
BRACKET
3572627A00
€ 18.00
15
0831626066
ref: 15
NUT
€ 2.00
16
0321204169
ref: 16
SCREW
0321204169
€ 1.50
17
0211206166
ref: 17
SCREW
€ 2.00
18
3571640A00
ref: 18
PLATE,TAIL LAMP
€ 5.50
19
0831626066
ref: 19
NUT
€ 2.00
20
0110706206
ref: 20
BOLT,M6X1X20
0110706206
€ 2.00
21
0916006020
ref: 21
WASHER
0916006020
€ 2.00
22
0918006084
ref: 22
SPACER (6.1X9X7.5)
€ 2.00
23
0932009028
ref: 23
CUSHION
0932009028
€ 3.00
24-1
3591027A00
ref: 24-1
MODEL F E1,E6,E24
LAMP ASSY,LICENSE
€ 0.00
24-2
3591006B30
ref: 24-2
MODEL G/H E1,E6,E24
LAMP ASSEMBLY,LICENSE
3591006B30
€ 139.00
24-3
3591027A20
ref: 24-3
MODEL F E2,E4,E15,E1
LAMP ASSY,LICENSE
3591027A20
€ 73.00
24-4
3591006B20
ref: 24-4
MODEL G/H E2,E4,E15,
LAMP ASSY,LICENSE
3591006B20
€ 93.00
25-1
3591200A10
ref: 25-1
E1,E6,E24
LENS,LICENSE LAMP
3591200A10
€ 16.00
25-2
3591200A20
ref: 25-2
E2,E4,E15,E16,E17,E1
LENS,LICENSE LAMP
3591200A20
€ 24.00
26
3591304A00
ref: 26
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
27
0211204167
ref: 27
SCREW
0211204167
€ 1.00
28
0832121047
ref: 28
WASHER,LOCK 4M
0832121047
€ 2.00
29
0832221047
ref: 29
WASHER 4MM
0832221047
€ 2.00
30-1
0947112037
ref: 30-1
E1,E6,E24
BULB
€ 7.00
30-2
0947112059
ref: 30-2
E2,E4,E15,E16,E17,E1
BULB
€ 4.00
31-1
3591720A00
ref: 31-1
MODEL F
COVER,LICENSE LAMP
3591720A00
€ 30.50
31-2
3591706B30
ref: 31-2
MODEL G/H
COVER,LICENSE LAMP
3591706B30
€ 35.50
32
0324104165
ref: 32
SCREW
€ 4.50
33
0916005011
ref: 33
WASHER (5.5X20X1.2)
€ 2.00
34
0831626056
ref: 34
NUT
€ 2.00
35
3592744110
ref: 35
PLATE,RR LICENSE
3592744110
€ 22.50
36
0151706164
ref: 36
BOLT
€ 2.50
37
0916006020
ref: 37
WASHER
0916006020
€ 2.00
38
0831626066
ref: 38
NUT
€ 2.00
39
0932106023
ref: 39
CUSHION
0932106023
€ 2.00
40
3595001A50
ref: 40
E39
REFLEX REFLECTOR,REAR SIDE
€ 0.00
41
0916005013
ref: 41
E39
WASHER(5.2X16X1)
0916005013
€ 1.50
42
0831012055
ref: 42
E39
NUT ,5MM
0831012055
€ 2.50
43
3597727A00
ref: 43
E39
SPACER,REAR SIDE,REAR,RIGHT
3597727A00
€ 7.00
44
3597827A00
ref: 44
E39
SPACER,REAR SIDE,REAR,LEFT
3597827A00
€ 4.00
up

all assemblies
