ALTERNATOR (E.NO.~116197)

GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

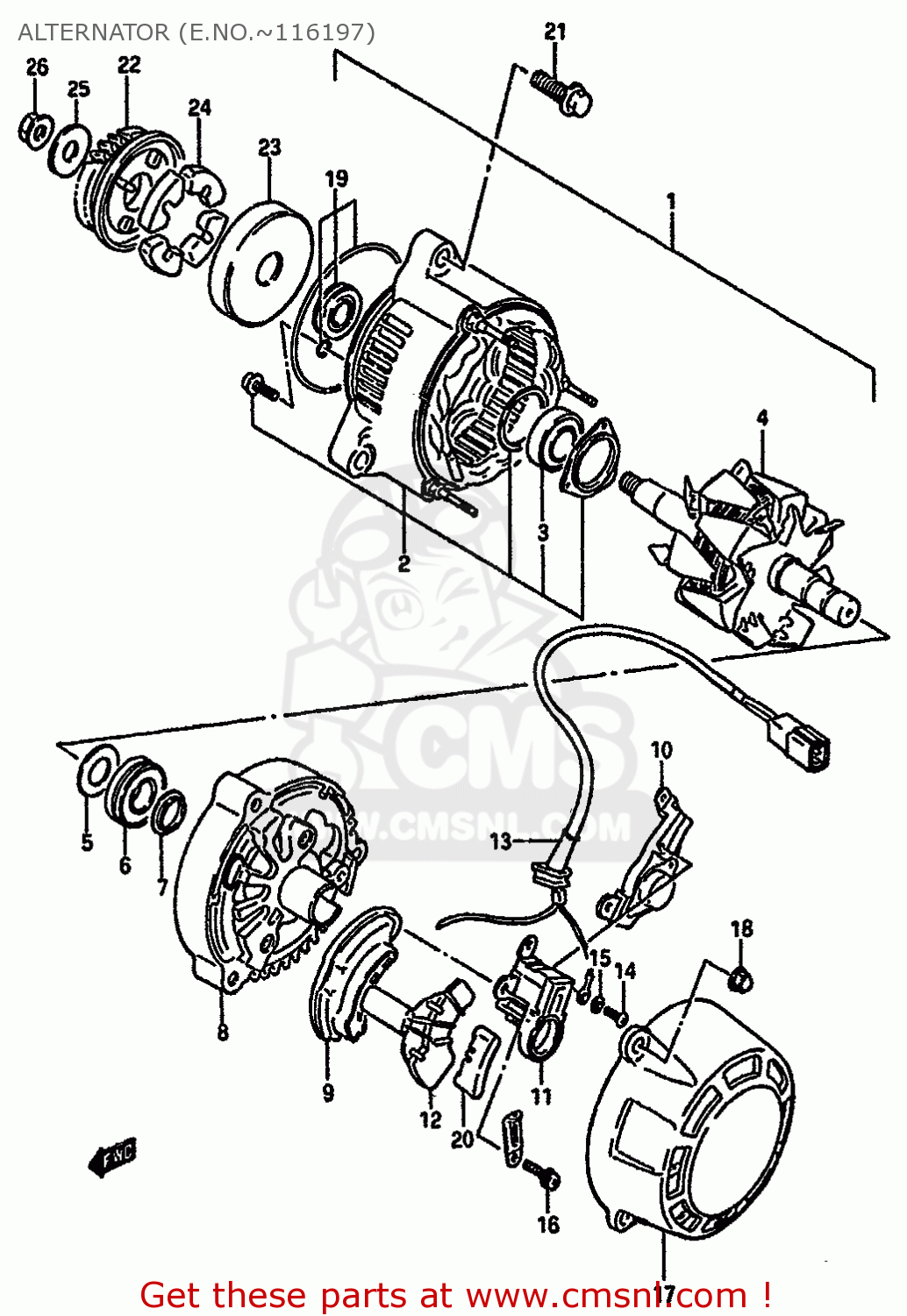

Alternator (e.no.~116197) diagram GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53

ALTERNATOR (E.NO.~116197) GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
ALTERNATOR (E.NO.~116197) GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
ALTERNATOR (E.NO.~116197) GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
prices are in EUR
ref
part #
description
quantity
1
3140027A01
ref: 1
TO 31400-06B00 WITH
ALTERNATOR ASSY
€ 1,063.50
2
3158027A01
ref: 2
FRAME,DRIVE END
€ 283.00
3
3161227A10
ref: 3
BEARING
3161227A10
€ 27.50
4
3171027A00
ref: 4
ROTOR ASSY
3171027A00
€ 235.50
5
3161327A00
ref: 5
COVER (2)
€ 3.50
6
3161227A00
ref: 6
BALL BEARING,ALTERNATOR
3161227A00
€ 42.50
7
3161327A10
ref: 7
COVER(2)
3161327A10
€ 5.50
8
3161127A00
ref: 8
FRAME,END
€ 114.00
9
3162127A00
ref: 9
HOLDER,RECTIFIER
3162127A00
€ 225.50
10
3250027A00
ref: 10
REGULATOR
3250027A00
€ 321.00
11
3165627A00
ref: 11
HOLDER,BRUSH
€ 55.50
12
3168727A00
ref: 12
COVER,RECTIFIER
€ 4.50
13
3148027A00
ref: 13
WIRE,LEAD
3148027A00
€ 22.00
14
0211204086
ref: 14
SCREW
€ 2.00
15
0832121046
ref: 15
LOCK WASHER
0832121046
€ 2.00
16
3168827A00
ref: 16
SCREW
3168827A00
€ 2.50
17
3161427A00
ref: 17
COVER
€ 75.50
18
3169227A00
ref: 18
NUT
€ 1.50
19
3178027A00
ref: 19
OIL SEAL SET
€ 47.50
20
3151427A00
ref: 20
BUSH
3151427A00
€ 4.50
21
0151708304
ref: 21
BOLT
0151708304
€ 3.00
22
2273027A01
ref: 22
FROM 22730-27A01
GEAR,GENERATOR DRIVEN
€ 183.50
23
2273327A03
ref: 23
HOUSING,GENERATOR GEAR
2273327A03
€ 95.00
24
2123106B00
ref: 24
DAMPER,GENERATOR DRIVEN
2123106B00
€ 5.50
25
0821110283
ref: 25
WASHER
0821110283
€ 3.00
26
0831626106
ref: 26
NUT
€ 3.50
