2ND AIR (MODEL V E18, E39)

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

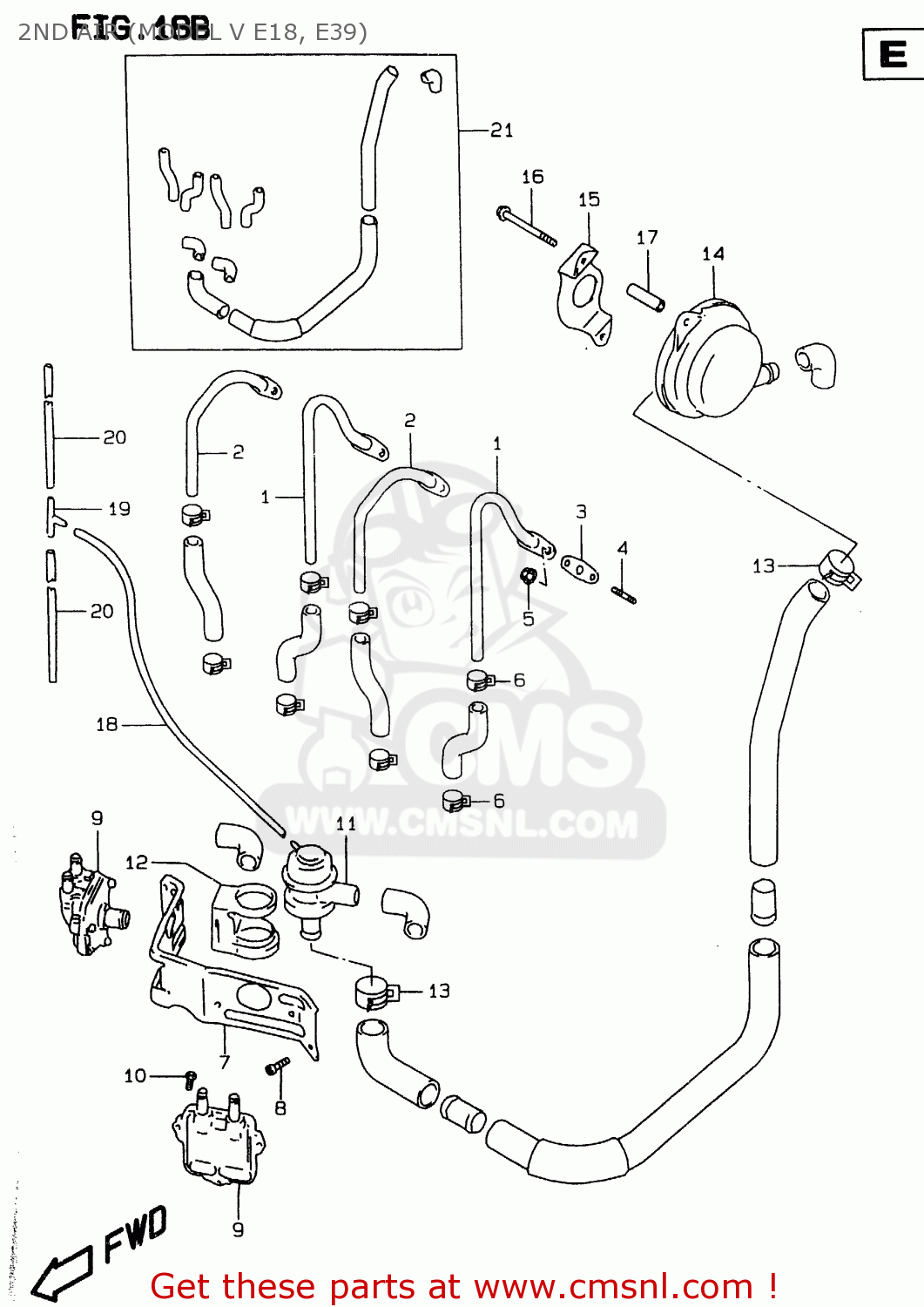

2nd air (model v e18, e39) diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

2ND AIR (MODEL V E18, E39) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

2ND AIR (MODEL V E18, E39) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

1841033E00
ref: 1

PIPE COMP,SECOND AIR NO.1

€ 0.00

2

1842033E00
ref: 2

PIPE COMP,SECOND AIR NO.2

€ 0.00

3

1844145C00
ref: 3

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

4

0142106163
ref: 4

STUD BOLT

€ 2.00

5

0831610063
ref: 5

NUT

€ 2.50

6-1

0940113413
ref: 6-1
MODEL T/V

CLIP

€ 2.50

6-2

0940113417
ref: 6-2
MODEL W

CLIP

€ 2.50

7

1875033E00
ref: 7

BRACKET COMP,SECOND AIR

€ 0.00

8

0910306083
ref: 8

BOLT 6X12

€ 2.50

9

1845048B00
ref: 9

VALVE ASSY,2ND AIR REED

€ 125.50

10

0713005167
ref: 10

BOLT

€ 2.50

11

1851046E00
ref: 11

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

12

1848701D00
ref: 12

CUSHION,2ND AIR VALVE

€ 10.00

13-1

0940126402
ref: 13-1
MODEL T/V

CLAMP

€ 3.00

13-2

0940126405
ref: 13-2
MODEL W

CLIP

€ 3.00

14

1870017C03
ref: 14

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

15

1876141C00
ref: 15

HOLDER,SECOND AIR CLEANER

€ 0.00

16

0155006603
ref: 16

BOLT

€ 2.50

17

0918006130
ref: 17

SPACER(6.5X10.5X40)

€ 10.00

18

0935940701600
ref: 18
L:600->540

HOSE(4X7X600)

€ 9.00

19

0936706002
ref: 19
MODEL T/V

JOINT,3 WAY

€ 3.00

20

0935550105600
ref: 20
MODEL T/V L:600->330

HOSE(5X10X600)

€ 7.50

21

1841033810
ref: 21

HOSE SET,2ND AIR

€ 0.00
