GENERATOR

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

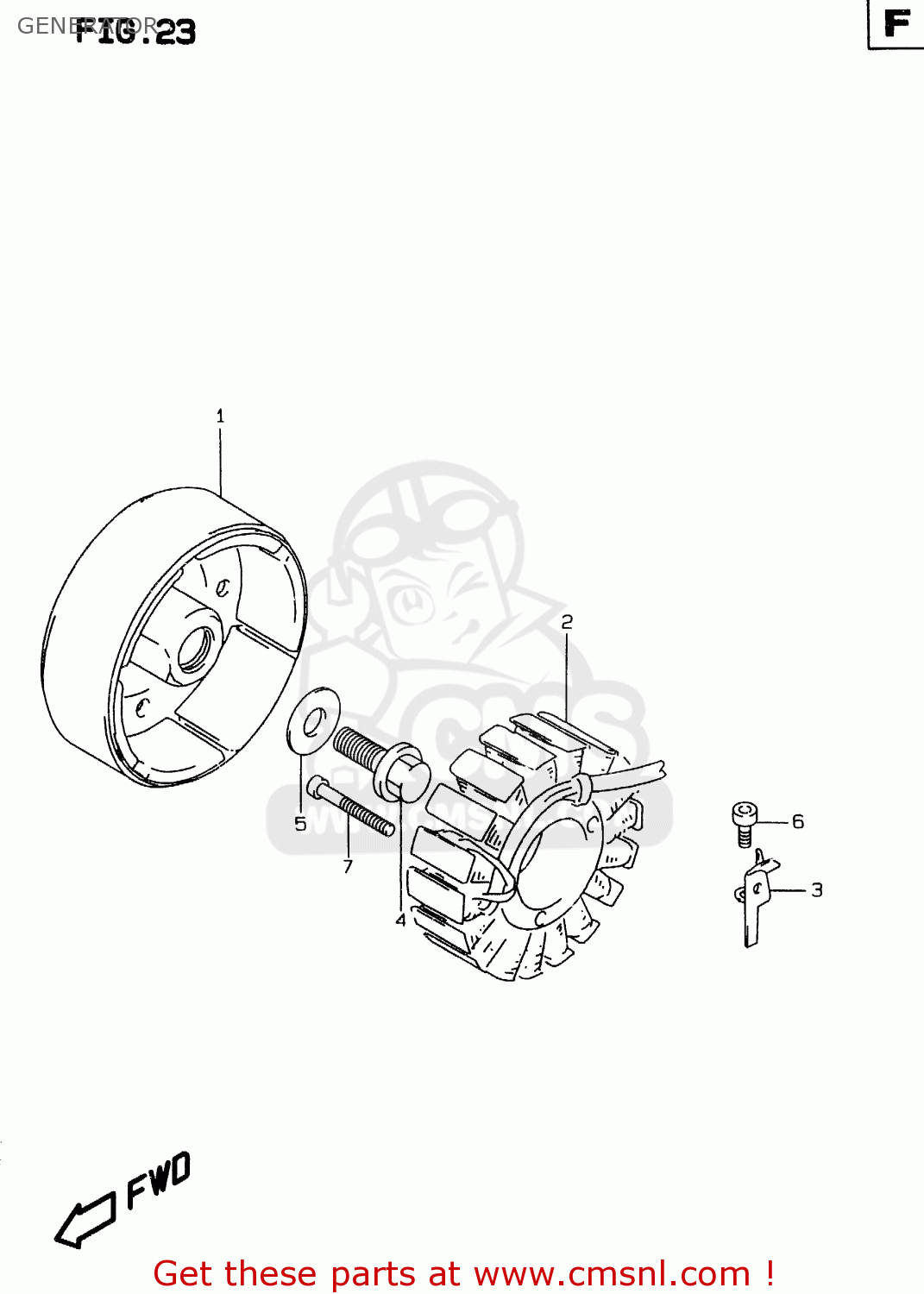

Generator diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

3140233E00
ref: 1-1
MODEL T/V

ROTOR ASSY

€ 330.00

1-2

3140233E10
ref: 1-2
MODEL W

ROTOR ASSY

€ 511.50

2-1

3140133E00
ref: 2-1
MODEL T/V

STARTER ASSY

€ 419.50

2-2

3140133E10
ref: 2-2
MODEL W

STARTER ASSY

€ 361.00

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

0910312028
ref: 4

BOLT(12X30)

€ 5.00

0916012036
ref: 5

WASHER(12X30X3)

€ 3.00

0713006103
ref: 6

BOLT,VAC.PIPE

€ 2.50

0713006353
ref: 7

BOLT

€ 3.50
