ELECTRICAL (MODEL W)

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

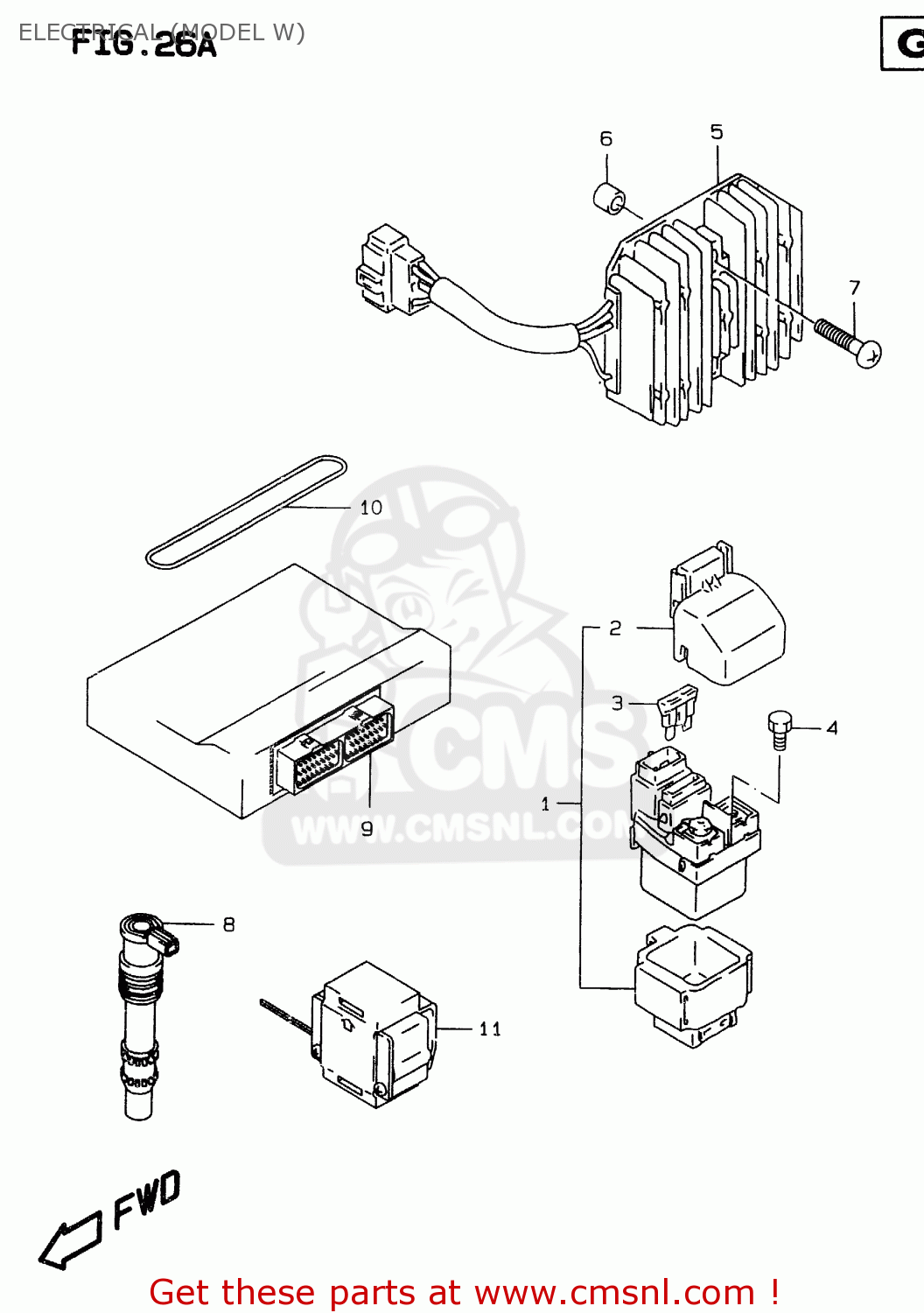

Electrical (model w) diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

3186126E00
ref: 2

COVER,STARTER RELAY

€ 3.50

0948130101
ref: 3

FUSE(30A)

€ 6.00

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3280033E10
ref: 5

RECTIFIER ASSEMBLY

€ 371.00

0918006283
ref: 6

SPACER(6.5X10X7)

€ 2.00

0214206353
ref: 7

SCREW

€ 2.00

3341034E00
ref: 8

COIL ASSY,IGNITION

€ 146.00

9-1

3292033E00
ref: 9-1

CONTROL UNIT,EPI

€ 948.50

9-2

3292033E10
ref: 9-2
E4

CONTROL UNIT,EPI

€ 872.50

9-3

3292033E50
ref: 9-3
E18

CONTROL UNIT, EPI

€ 1,286.00

9-4

3292033E20
ref: 9-4
E22

CONTROL UNIT,EPI

€ 948.50

9-5

3292033E60
ref: 9-5
E39

CONTROL UNIT, EPI

€ 0.00

3365112910
ref: 10

BAND,BATTERY

€ 6.00

3396002F00
ref: 11

SENSOR ASSY,FUEL CUT

€ 85.00
