TURNSIGNAL LAMP

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

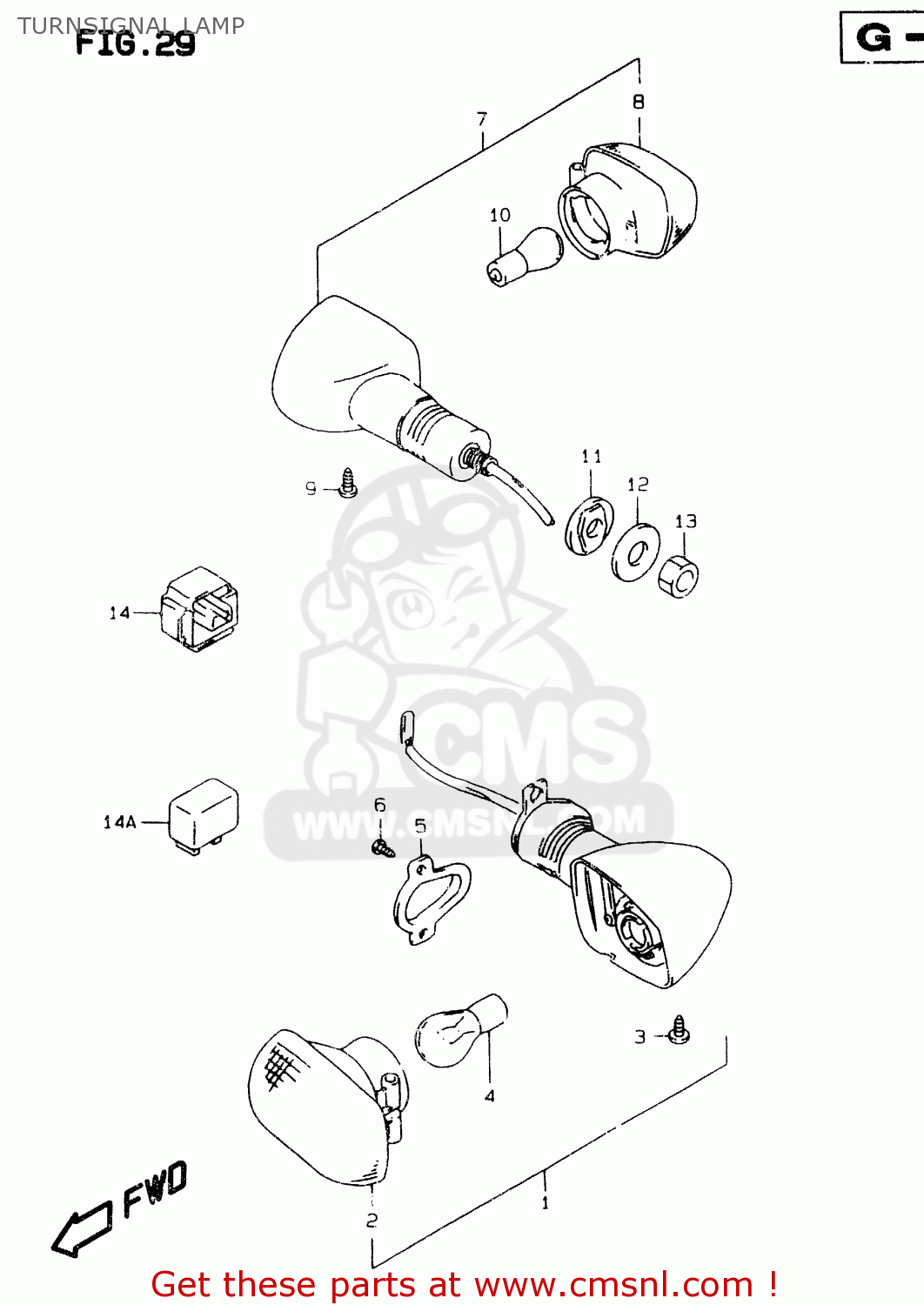

Turnsignal lamp diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

TURNSIGNAL LAMP GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

TURNSIGNAL LAMP GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

3560133E00
ref: 1-1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

1-2

3560233E00
ref: 1-2

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

2

3561033E00
ref: 2

LAMP UNIT

€ 31.00

3

0324104123
ref: 3

SCREW

€ 2.50

4

0947112045
ref: 4

BULB(12V21W)

€ 5.00

5

3562933E00
ref: 5

PLATE,FR TURNSIGNAL LAMP

€ 25.50

6

0351105103
ref: 6

SCREW

€ 2.00

7-1

3560333E30
ref: 7-1

LAMP ASSY,RR TURNSIGNAL,R

€ 70.50

7-2

3560433E30
ref: 7-2

LAMP ASSY,RR TURNSIGNAL,L

€ 70.50

8

3561033E00
ref: 8

LAMP UNIT

€ 31.00

9

0324104123
ref: 9

SCREW

€ 2.50

10

0947112045
ref: 10

BULB(12V21W)

€ 5.00

11

3569517C00
ref: 11

SPACER,RR TURNSIGNAL

€ 3.00

12

0916010501
ref: 12

WASHER(10.5X30X2.3)

€ 2.50

13

0831000103
ref: 13

NUT

€ 2.00

14

3861026E00
ref: 14
MODEL T/V

RELAY ASSY

€ 47.00

14A

3861003F00
ref: 14A
MODEL W

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

all assemblies

* COLOR CHART *

* CATALOG PREFACE *

* CONVERSION CHART *
