FOOTREST

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

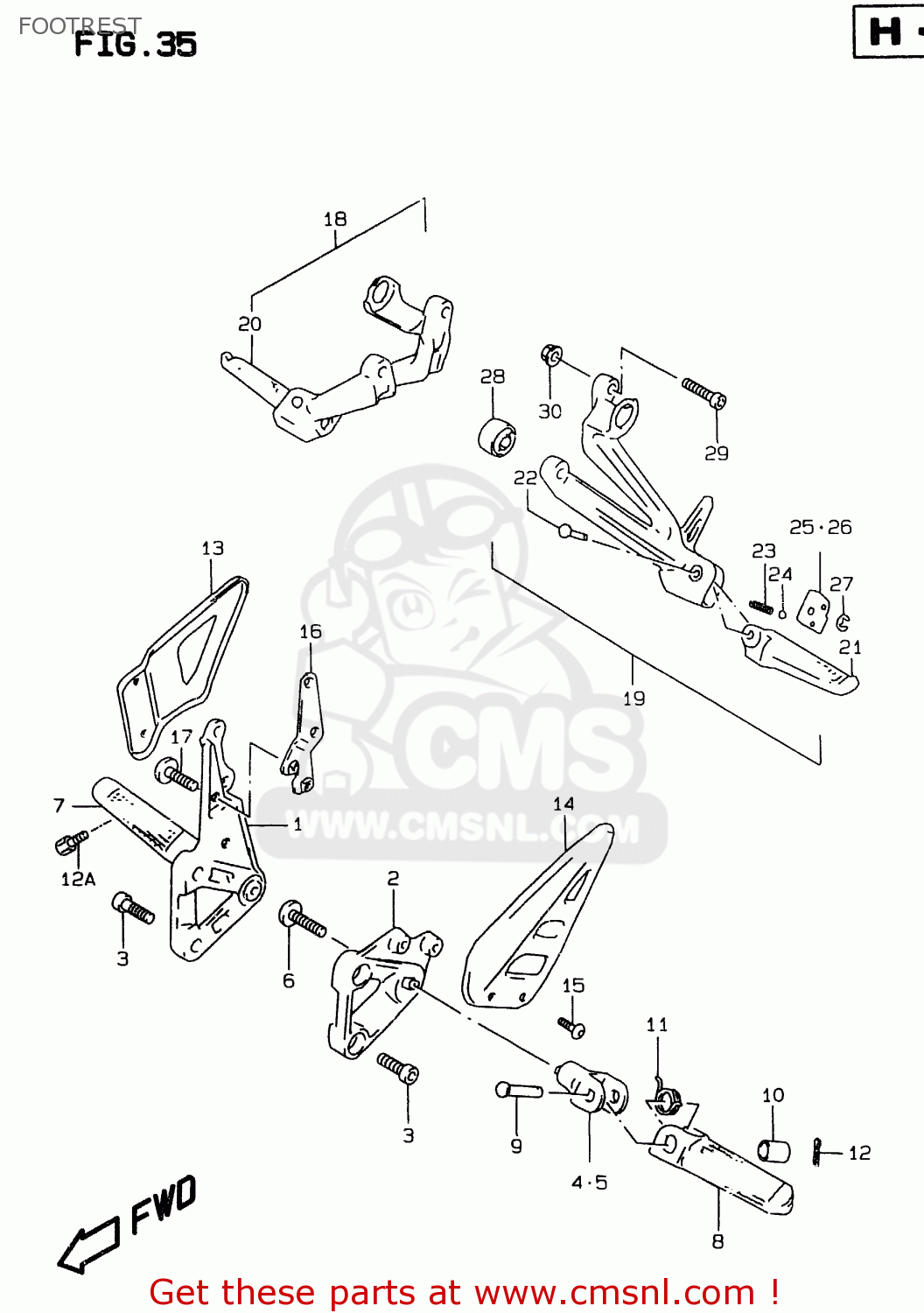

Footrest diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FOOTREST GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FOOTREST GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FOOTREST GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
4351133E00
ref: 1-1
MODEL T/V
BRACKET,FR FOOTREST,R
4351133E00
€ 96.50
1-2
4351133E10
ref: 1-2
MODEL W
BRACKET,FR FOOTREST,R
4351133E10
€ 85.00
2
4352133E00
ref: 2
BRACKET,FR FOOTREST,L
4352133E00
€ 66.00
3
0713008203
ref: 3
BOLT
0713008203
€ 3.00
4-1
4353017E00
ref: 4-1
MODEL T/V
HOLDER,FOOTREST,RIGHT
4353017E00
€ 33.00
4-2
4353017E01
ref: 4-2
MODEL W
HOLDER,FOOTREST,R
4353017E01
€ 33.00
5
4354017E00
ref: 5
HOLDER,FOOTREST,L
4354017E00
€ 33.00
6
0910610064
ref: 6
BOLT(10X28)
0910610064
€ 4.50
7-1
4358133E00
ref: 7-1
MODEL T/V
BAR,FOOTREST,RIGHT
4358133E00
€ 37.00
7-2
4353133D00
ref: 7-2
MODEL W
BAR,FRONT FOOTREST,RIGHT
€ 37.00
8-1
4359133E00
ref: 8-1
MODEL T/V
BAR,FOOTREST,LEFT
4359133E00
€ 44.50
8-2
4359102F00
ref: 8-2
MODEL W
BAR,FRONT FOOTREST,LEFT
4359102F00
€ 44.50
9
0920008057
ref: 9
PIN
0920008057
€ 3.00
10
0918008149
ref: 10
SPACER(8.1X12X22)
0918008149
€ 7.00
11
0944818022
ref: 11
SPRING
0944818022
€ 3.50
12
0411125158
ref: 12
PIN 20X15
0411125158
€ 1.50
12A
4357607D01
ref: 12A
MODEL W
BOLT,BANK SENSOR
4357607D01
€ 8.00
13-1
4357133E00
ref: 13-1
MODEL T/V
GUARD,FRONT FOOTREST,RIGHT
4357133E00
€ 34.50
13-2
4357133E01
ref: 13-2
MODEL W
GUARD,FR FOOTREST,R
4357133E01
€ 34.50
14-1
4357633E00
ref: 14-1
MODEL T/V
GUARD,FRONT FOOTREST,LEFT
4357633E00
€ 50.00
14-2
4357633E01
ref: 14-2
MODEL W
GUARD,FR FOOTREST,L
4357633E01
€ 50.00
15
0913905033
ref: 15
SCREW(5X10)
0913905033
€ 2.00
16
4357033E00
ref: 16
MODEL T/V
REINF,FOOTREST BRACKET,R
4357033E00
€ 9.50
17
0913906030
ref: 17
MODEL T/V
SCREW(6X16)
0913906030
€ 3.50
18
4360033E00
ref: 18
FOOTREST ASSY,PILLION,R
4360033E00
€ 111.50
19
4370033E00
ref: 19
FOOTREST ASSY,PILLION,L
4370033E00
€ 162.00
20
4361133E00
ref: 20
BAR,PILLION FOOTREST,RIGHT
4361133E00
€ 23.50
21
4362133E00
ref: 21
BAR,PILLION FOOTREST,LEFT
4362133E00
€ 23.50
22
8725985510
ref: 22
PIN
8725985510
€ 4.50
23
0944005005
ref: 23
SPRING
0944005005
€ 1.50
24
0611107004
ref: 24
BALL
0611107004
€ 1.50
25-1
4381623E10
ref: 25-1
MODEL T/V
PLATE,PILLION FOOT,R
4381623E10
€ 4.50
25-2
4381633E20
ref: 25-2
MODEL W
PLATE,PILLION,RIGHT
4381633E20
€ 15.00
26-1
4382623E10
ref: 26-1
MODEL T/V
PLATE,PILLION FOOT,L
4382623E10
€ 4.50
26-2
4382633E20
ref: 26-2
MODEL W
PLATE,PILLION,LEFT
€ 15.00
27
0833211043
ref: 27
E-RING
0833211043
€ 2.00
28
0931908028
ref: 28
BUSH
0931908028
€ 17.00
29
0713008303
ref: 29
BOLT
0713008303
€ 3.00
30
0831931083
ref: 30
NUT
0831931083
€ 2.50
