WATER PUMP

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

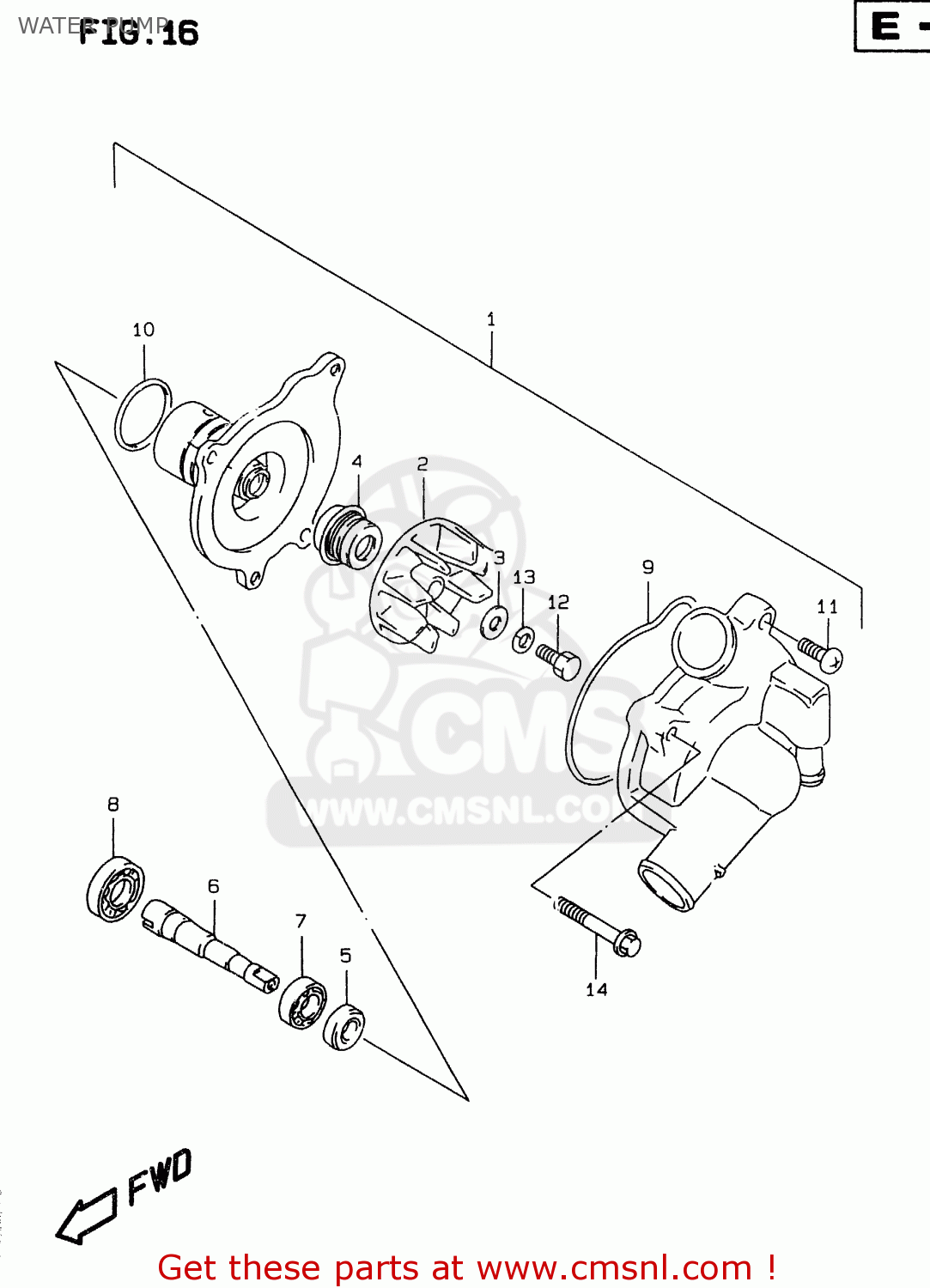

Water pump diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1740033E00
ref: 1

PUMP ASSY,WATER

€ 383.50

1749117E00
ref: 2

IMPELLER

€ 15.00

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

1747046A00
ref: 4

SEAL,MECHANICAL

€ 21.50

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

1751133E00
ref: 6

SHAFT,WATER PUMP

€ 112.50

0926210014
ref: 7

BEARING(10X26X8)

€ 13.00

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

1741833400
ref: 9

O RING

€ 4.00

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

0211206163
ref: 11

SCREW 6X16

€ 2.00

0910006099
ref: 12

BOLT(6X13)

€ 2.00

0916406006
ref: 13

WASHER

€ 2.50

0154706353
ref: 14

BOLT

€ 3.00
