COWLING BODY (MODEL T)

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

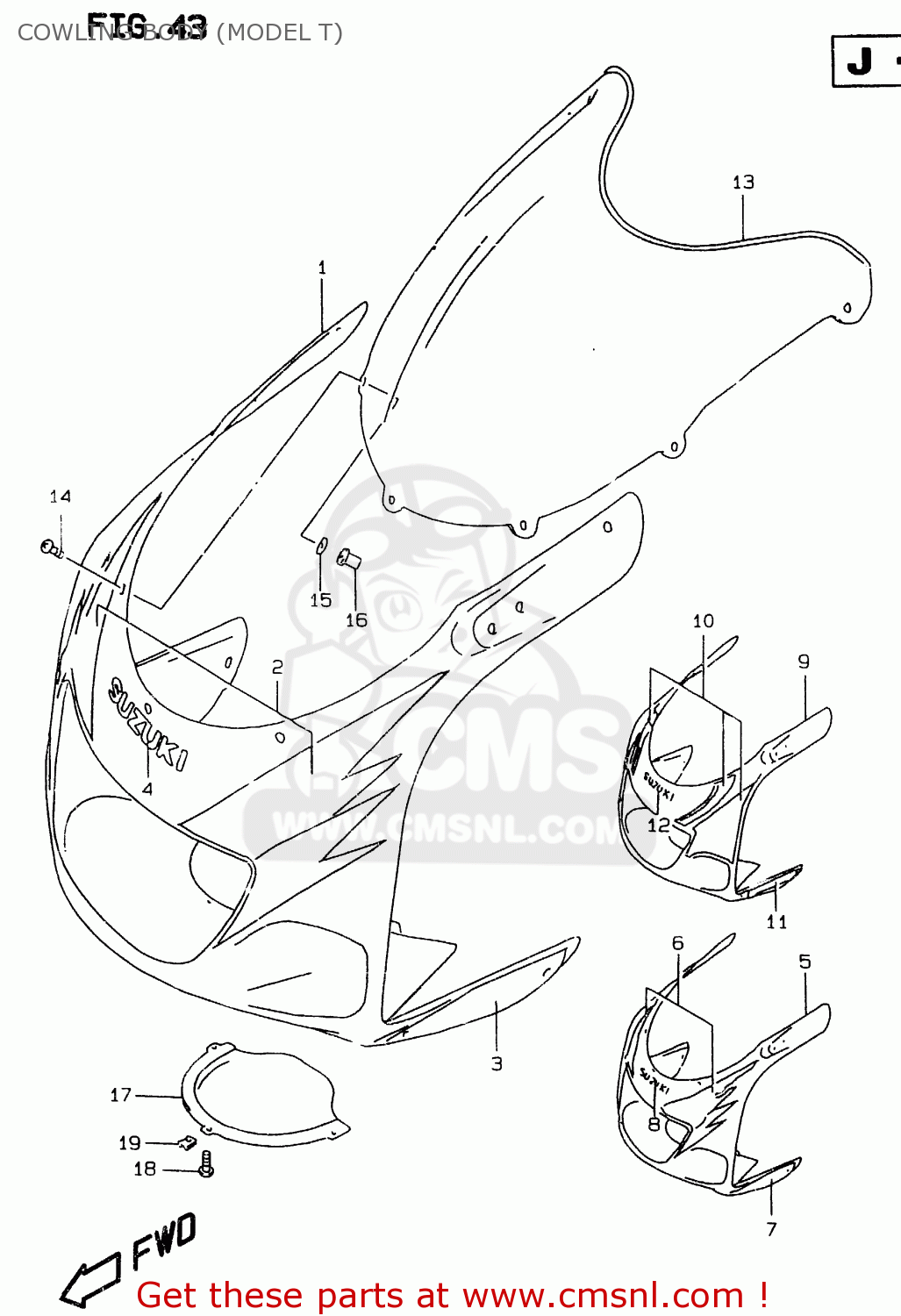

Cowling body (model t) diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (MODEL T) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (MODEL T) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

9440033E1017U
ref: 1
FOR C3B

COWLING ASSY,BODY

€ 424.00

2

6827033E10Z89
ref: 2

TAPE,COWL BODY FR

€ 58.50

3

6828033E101TU
ref: 3

TAPE,COWL BODY SIDE

€ 26.00

4

6818505C1013L
ref: 4

EMBLEM,COWLING UPR

€ 10.50

5

9440033E2029F
ref: 5
FOR F1S

COWLING ASSEMBLY,BODY

€ 531.00

6

6827033E20Z88
ref: 6

TAPE SET,COWL BODY FR

€ 61.00

7

6828033E10Z66
ref: 7

TAPE,COWL BODY SIDE

€ 26.00

8

6818505C100FP
ref: 8

EMBLEM,COWLING UPR

€ 10.50

9

9440033E000JW
ref: 9
FOR L99

COWLING ASSY,BODY

€ 546.00

10

6827033E00F3U
ref: 10

TAPE SET,COWLING BODY

€ 59.00

11

6828033E001LF
ref: 11

TAPE,COWL BODY SIDE

€ 19.00

12

6818505C101LF
ref: 12

EMBLEM,SUZUKI

€ 13.50

13

9461133E00
ref: 13

WINDSCREEN

€ 148.00

14

0913905025
ref: 14

SCREW(5X14)

€ 2.00

15

0832201053
ref: 15

WASHER

€ 2.50

16

0915905019
ref: 16

NUT

€ 5.50

17

9441933E00
ref: 17

LID,BODY COWLING,LOWER

€ 17.00

18

0324115123
ref: 18

SCREW

€ 2.50

19

0914805038
ref: 19

NUT

€ 2.50
