HEADLAMP (MODEL W E4, E18, E22, E25, E34, E39)

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

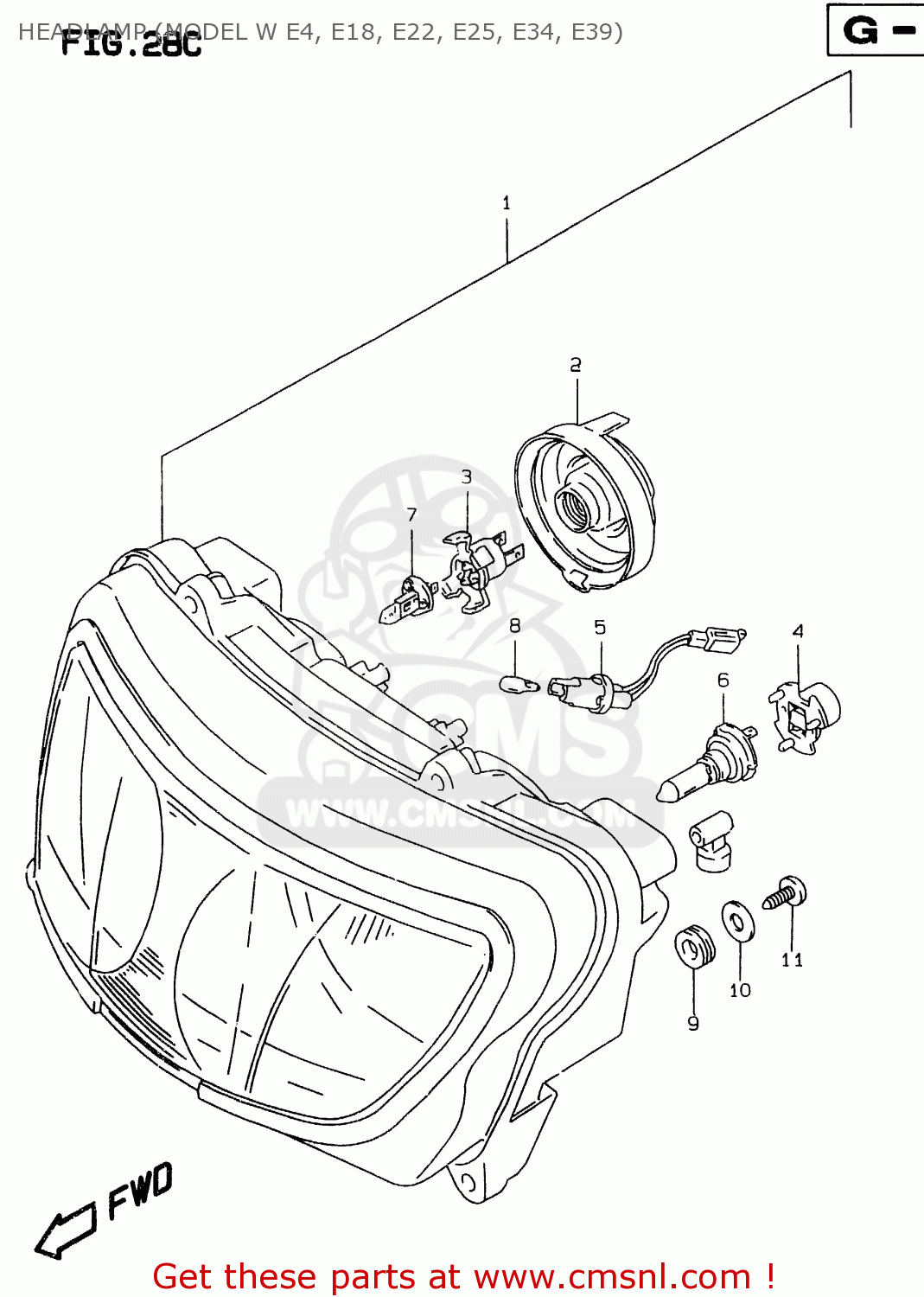

Headlamp (model w e4, e18, e22, e25, e34, e39) diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3510033E40999
ref: 1

HEADLAMP ASSY

€ 393.50

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3517518E50
ref: 3
FOR 09471-12122

ADAPTER ASSY

€ 21.00

3417533E50
ref: 4
FOR 09471-12188

ADAPTER ASSY

€ 20.50

3611833E10
ref: 5

SOCKET ASSY

€ 18.00

0947112188
ref: 6
PURCHASE LOCALLY, LH

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

0947112122
ref: 7
PURCHASE LOCALLY, RH

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

0947112081
ref: 8

BULB(12V5W)

€ 1.50

3513733E00
ref: 9

CUSHION,HEADLAMP

€ 3.00

0916005045
ref: 10

WASHER(5.5X18X1)

€ 2.00

0351105163
ref: 11

SCREW,SIDE HOL

€ 2.50
