SEAT

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

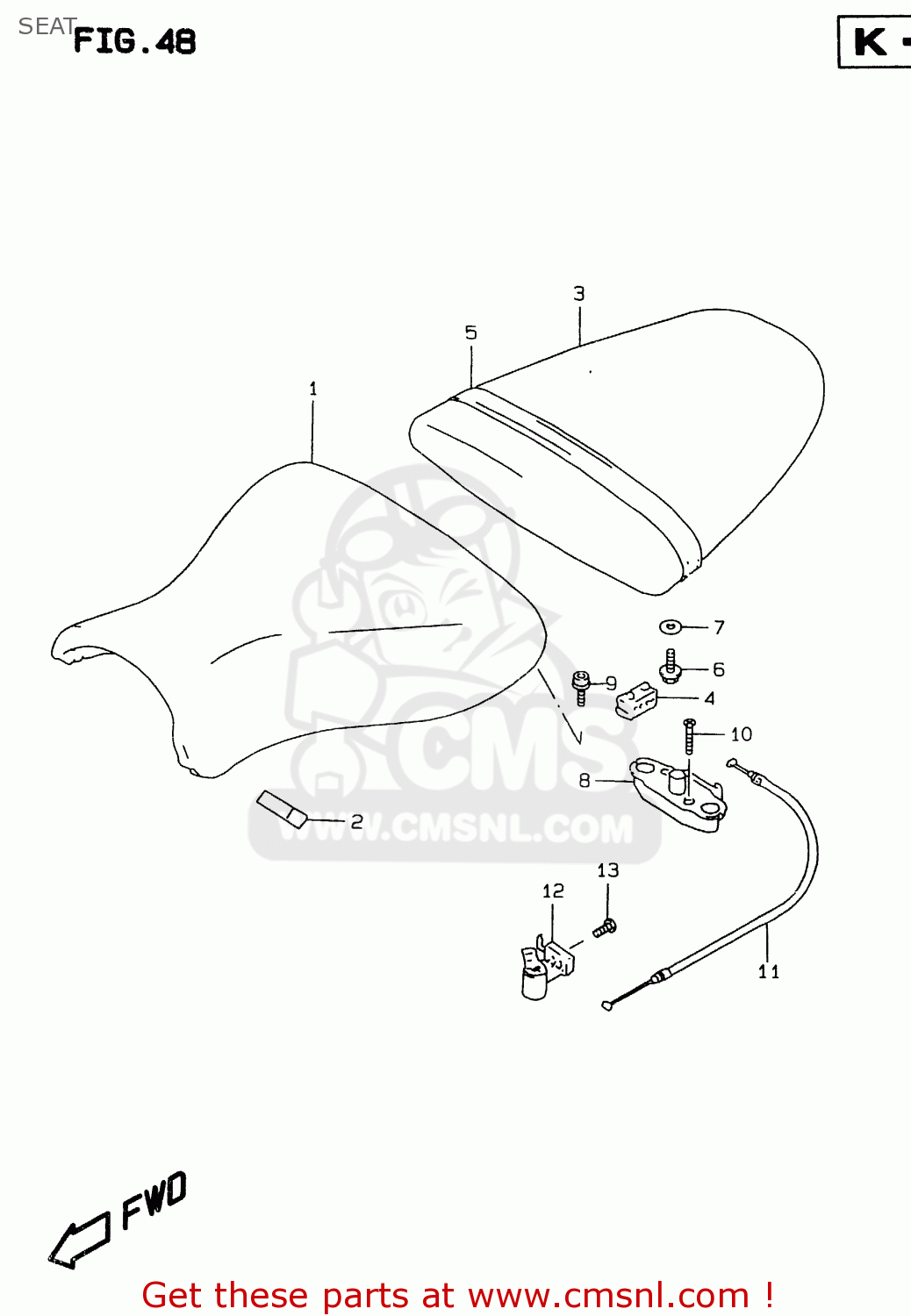

Seat diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4510033E00R42
ref: 1-1
MODEL T

SEAT ASSEMBLY (BLACK)

€ 245.00

1-2

4510033E20R42
ref: 1-2
MODEL V/W

SEAT ASSY(BLACK)

€ 179.50

4514931E00
ref: 2

CUSHION,FR(20X40X15)

€ 4.00

3-1

4530033E00R42
ref: 3-1
MODEL T/V

SEAT ASSY,PILLION

€ 175.00

3-2

4530033E20R42
ref: 3-2
MODEL W

SEAT ASSY,PILLION

€ 175.00

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

4518033E00R42
ref: 5

BAND,SEAT

€ 14.50

0155006203
ref: 6

BOLT

€ 2.50

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

4522020A01
ref: 8

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

0910606064
ref: 9

BOLT(6X18)

€ 6.00

0212206303
ref: 10

SCREW

€ 2.00

4528017E00
ref: 11

CABLE,SEAT LOCK

€ 16.50

9570031840
ref: 12

LOCK SET,SEAT

€ 57.00

0214205103
ref: 13

SCREW

€ 2.50
