THROTTLE BODY (MODEL W)

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

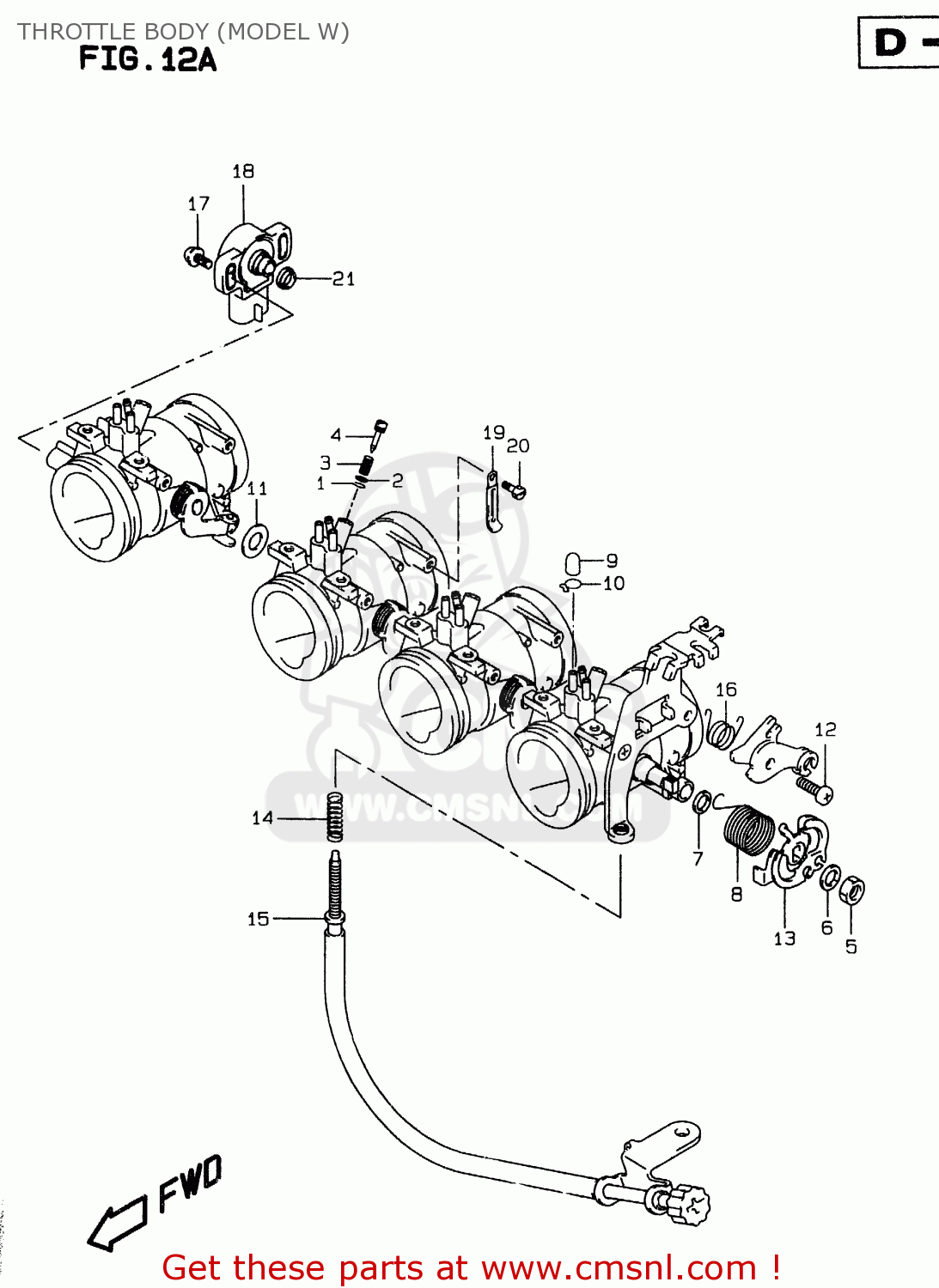

Throttle body (model w) diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

THROTTLE BODY (MODEL W) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

THROTTLE BODY (MODEL W) GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0

1340133E00
ref: 0

THROTTLE BODY ASSEMBLY,LEFT

€ 397.50

0

1340233E00
ref: 0

THROTTLE BODY ASSEMBLY,MIDDLE,LEFT

€ 392.00

0

1340333E00
ref: 0

THROTTLE BODY ASSEMBLY,MIDDLE,RIGHT

€ 392.00

0

1340433E00
ref: 0

THROTTLE BODY ASSY,R

€ 426.00

1

1329529900
ref: 1

O RING,PILOT AIR SCREW

€ 4.00

2

1360647A00
ref: 2

WASHER

€ 2.00

3

1326837B40
ref: 3

SPRING

€ 3.00

4

1326933E00
ref: 4

SCREW

€ 8.50

5

1360737010
ref: 5

NUT

€ 2.00

6

0832101087
ref: 6

WASHER,LOCK

€ 2.00

7

1365151010
ref: 7

SEAL

€ 4.00

8

1354333E00
ref: 8

SPRING

€ 8.00

9-1

1327484000
ref: 9-1

CAP

€ 5.50

9-2

1327484000
ref: 9-2
E18, E39

CAP

€ 5.50

10-1

0940106101
ref: 10-1

CLIP

€ 2.50

10-2

0940106101
ref: 10-2
E18, E39

CLIP

€ 2.50

11

1355795210
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 2.50

12

1343333110
ref: 12

SCREW,STARTER LEVER

€ 5.50

13

1338609410
ref: 13

WASHER

€ 2.50

14

1327133C00
ref: 14

SPRING

€ 4.50

15

1326733E00
ref: 15

ADJUSTER

€ 73.00

16

1342633E00
ref: 16

SPRING

€ 6.50

17

1360502F00
ref: 17

SCREW

€ 3.00

18

1358002F00
ref: 18

SENSOR ASSY,THROTTLE

€ 118.50

19

0940406429
ref: 19

CLAMP(L:45)

€ 2.50

20

1361333E10
ref: 20

BOLT

€ 2.00

21

1366331010
ref: 21

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50
