HANDLEBAR

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

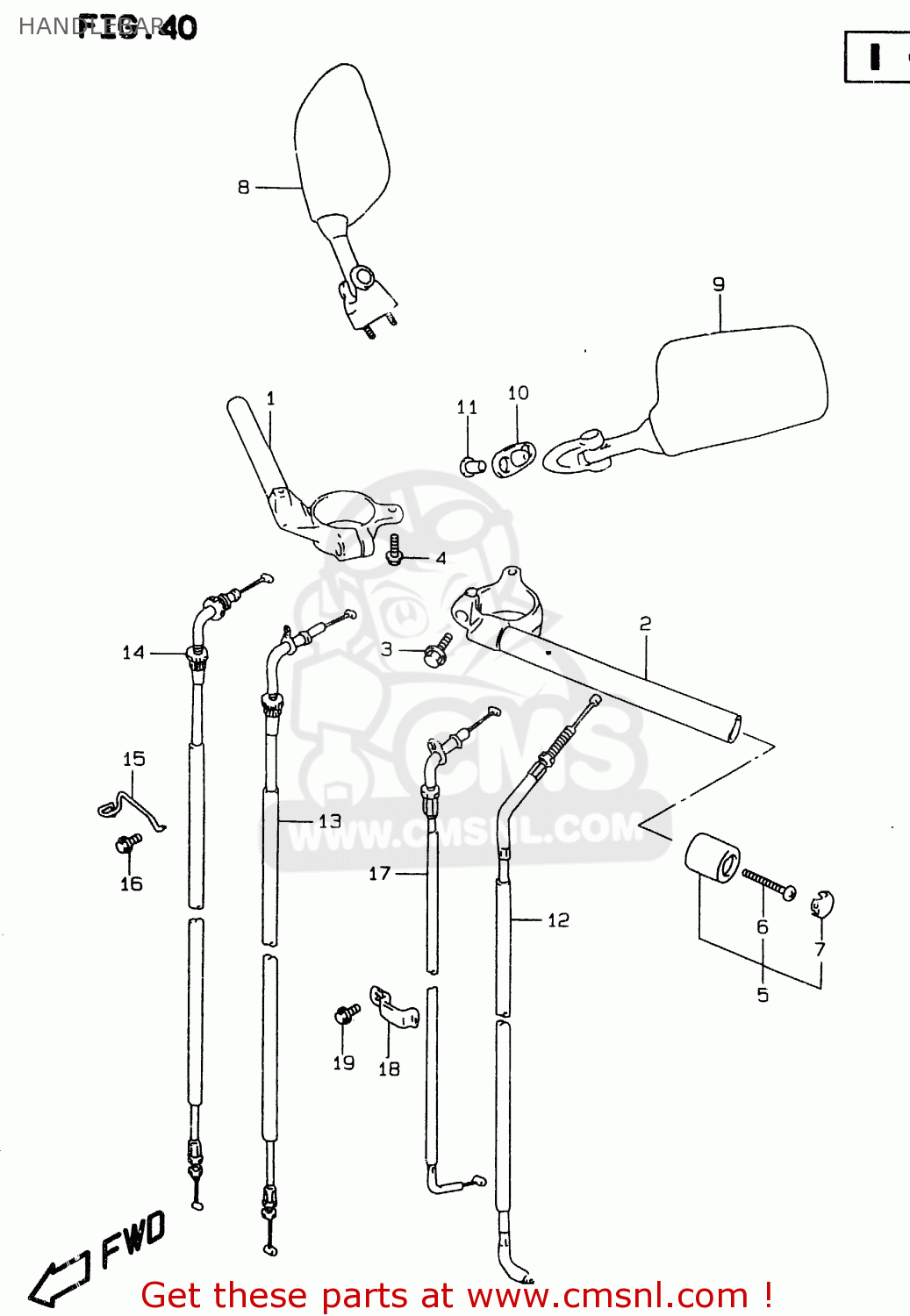

Handlebar diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLEBAR GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLEBAR GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

5611133E00
ref: 1

HANDLEBAR,R

€ 152.50

2-1

5615133E00
ref: 2-1
MODEL T/V

HANDLEBAR,LEFT

€ 152.50

2-2

5615133E01
ref: 2-2
MODEL W

HANDLEBAR,L

€ 152.50

3

0155006203
ref: 3

BOLT

€ 2.50

4

0910308269
ref: 4

BOLT(8X30)

€ 2.50

5

5620033841
ref: 5

BALANCER SET,HANDLEBAR

€ 27.50

6

0214206403
ref: 6

SCREW

€ 2.00

7

5627933E00
ref: 7

CAP,BALANCER

€ 4.00

8-1

5650033E00
ref: 8-1

MIRROR ASSY,RR VIEW,R

€ 182.00

8-2

5650033E10
ref: 8-2
MODEL T E25 ~F. NO.

MIRROR ASSY, REAR VIEW RH

€ 51.50

9-1

5660033E00
ref: 9-1

MIRROR ASSY,RR VIEW,L

€ 188.50

9-2

5660033E10
ref: 9-2
MODEL T E25 ~F. NO.

MIRROR ASSY,RR VIEW,L

€ 87.50

10

9457622D00
ref: 10

CUSHION,RR VIEW MIRRORR

€ 6.00

11

5661917C00
ref: 11

NUT,RR VIEW MIRROR

€ 8.00

12-1

5820033E00
ref: 12-1
MODEL T

CABLE ASSEMBLY,CLUTCH

€ 38.50

12-2

5820033E01
ref: 12-2
MODEL V/W

CABLE ASSY,CLUTCH

€ 38.50

13-1

5830033E00
ref: 13-1
MODEL T/V

CABLE ASSY,THROTTLE NO.1

€ 43.00

13-2

5830033E20
ref: 13-2
MODEL W

CABLE ASSY,THROTTLE NO.1

€ 33.00

14-1

5830033E10
ref: 14-1
MODEL T/V

CABLE ASSY,THROTTLE NO.2

€ 40.50

14-2

5830033E30
ref: 14-2
MODEL W

CABLE ASSY,THROTTLE NO.2

€ 33.00

15

5862133E00
ref: 15

GUIDE,THROTTLE CABLE

€ 4.50

16

0155006163
ref: 16

BOLT

€ 2.50

17-1

5841033E01
ref: 17-1
MODEL T/V

CABLE,STARTER

€ 41.00

17-2

5841033E10
ref: 17-2
MODEL W

CABLE,STARTER

€ 27.50

18

0940310307
ref: 18

CLAMP

€ 3.00

19

0155006103
ref: 19

BOLT

€ 2.50
