CLUTCH

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

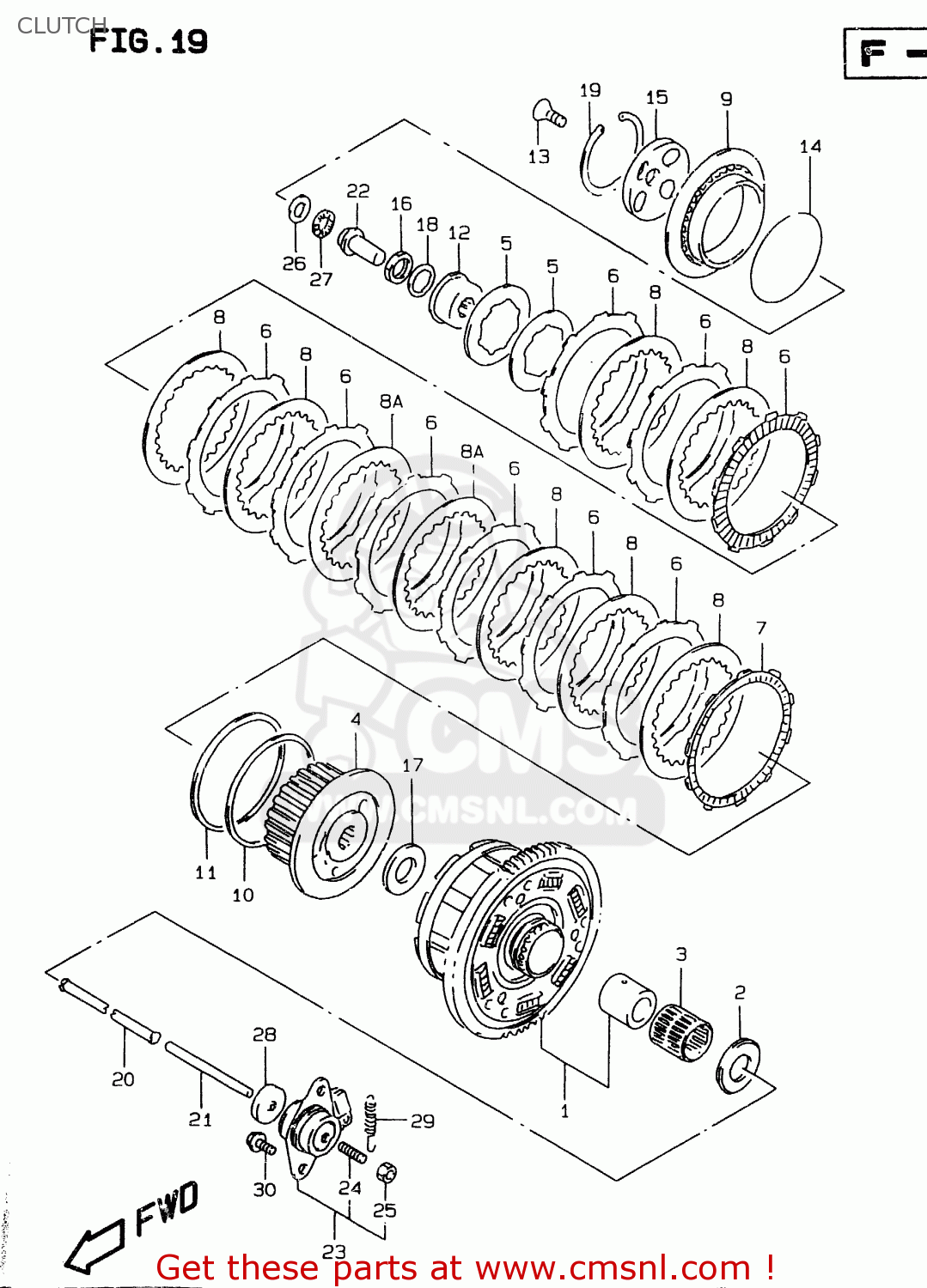

Clutch diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CLUTCH GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CLUTCH GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CLUTCH GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
2120031870
ref: 1-1
MODEL T/V
GEAR ASSEMBLY,PRIMARY DRIVE
€ 377.00
1-2
2120031890
ref: 1-2
MODEL W
GEAR ASSY,PRI DRIVEN
€ 377.00
2-1
0916025067
ref: 2-1
MODEL T
WASHER(25X54X2.5)
0916025067
€ 9.00
2-2
0916025037
ref: 2-2
MODEL V/W
WASHER(25X54X2.5)
0916025037
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141031E20
ref: 4
HUB,CLUTCH SLEEVE
2141031E20
€ 140.50
5
2141331E20
ref: 5
SPRING,CLUTCH
2141331E20
€ 12.50
6-1
2144131E00
ref: 6-1
MODEL T/V ~F. NO. JS
PLATE,CLUTCH DRIVE
2144131E00
€ 21.50
6-2
2144131E30
ref: 6-2
MODEL V F. NO. JS1GR
PLATE,CLUTCH DRIVE NO (NAS)
2144131E30
€ 21.00
6-3
2144131E50
ref: 6-3
MODEL W
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144131E50
€ 21.00
7
2144231E00
ref: 7
PLATE,CLUTCH DRIVE
2144231E00
€ 25.50
8
2145131E00
ref: 8
T:1.6
PLATE,CLUTCH DRIVEN NO.1
2145131E00
€ 7.00
8A
2145131E10
ref: 8A
T:2.0
PLATE,CLUTCH DRIVEN NO.2
2145131E10
€ 7.50
9-1
2146231E20
ref: 9-1
MODEL T/V
DISC,CLUTCH PRESSURE
2146231E20
€ 58.00
9-2
2146231E50
ref: 9-2
MODEL W
DISC,CLUTCH PRESSURE
€ 58.00
10
2147131E20
ref: 10
SEAT,CLUTCH PLATE WAVE WASHER
2147131E20
€ 12.00
11
2147231E20
ref: 11
WASHER,CLUTCH PLATE WAVE
2147231E20
€ 15.00
12
2161131E20
ref: 12
HOLDER,CLUTCH SPRING
2161131E20
€ 39.00
13
2161431E20
ref: 13
SCREW,CLUTCH SPRING HOLDER
2161431E20
€ 3.50
14
2162331E20
ref: 14
SEAT,CLUTCH SPRING
2162331E20
€ 5.50
15
2146340C01
ref: 15
LIFTER,CLUTCH PRESSURE DISC
2146340C01
€ 33.00
16
0915924010
ref: 16
NUT
0915924010
€ 11.00
17-1
0916025056
ref: 17-1
MODEL T 25X50X2.5
WASHER(25X50X2.5)
0916025056
€ 9.50
17-2
0821125505
ref: 17-2
MODEL V/W
WASHER
0821125505
€ 6.00
18
0916424006
ref: 18
24.2X35X2
WASHER
0916424006
€ 4.00
19
0938184002
ref: 19
CIRCLIP
0938184002
€ 10.50
20
2311027A00
ref: 20
ROD,CLUTCH
2311027A00
€ 17.00
21
2311134C00
ref: 21
ROD,CLUTCH PUSH,L
2311134C00
€ 15.50
22-1
2312131E00
ref: 22-1
MODEL T/V
PIECE,CLUTCH PUSH
2312131E00
€ 18.50
22-2
2312131E10
ref: 22-2
MODEL W
PIECE,CLUTCH PUSH
€ 18.50
23-1
2320031300
ref: 23-1
MODEL T/V ~F. NO. JS
SCREW ASSY,CLUTCH RELEASE
2320031300
€ 104.50
23-2
2320020C00
ref: 23-2
MODEL V F. NO. JS1GR
SCREW ASSY,CLUTCH RELEASE
2320020C00
€ 74.50
23-3
2320020C00
ref: 23-3
MODEL W
SCREW ASSY,CLUTCH RELEASE
2320020C00
€ 74.50
24
0913406010
ref: 24
SCREW(6X25)
0913406010
€ 3.00
25
0831000067
ref: 25
NUT
0831000067
€ 2.50
26
0916015045
ref: 26
15.5X28X1
WASHER(15.5X28X1)
0916015045
€ 4.00
27
0926315003
ref: 27
15X28X2
BEARING(15X28X2)
0926315003
€ 7.00
28
0928506015
ref: 28
6X34X5.5
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
29
0944309044
ref: 29
SPRING
0944309044
€ 3.50
30
0155006163
ref: 30
BOLT
0155006163
€ 2.50
