STARTING MOTOR

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

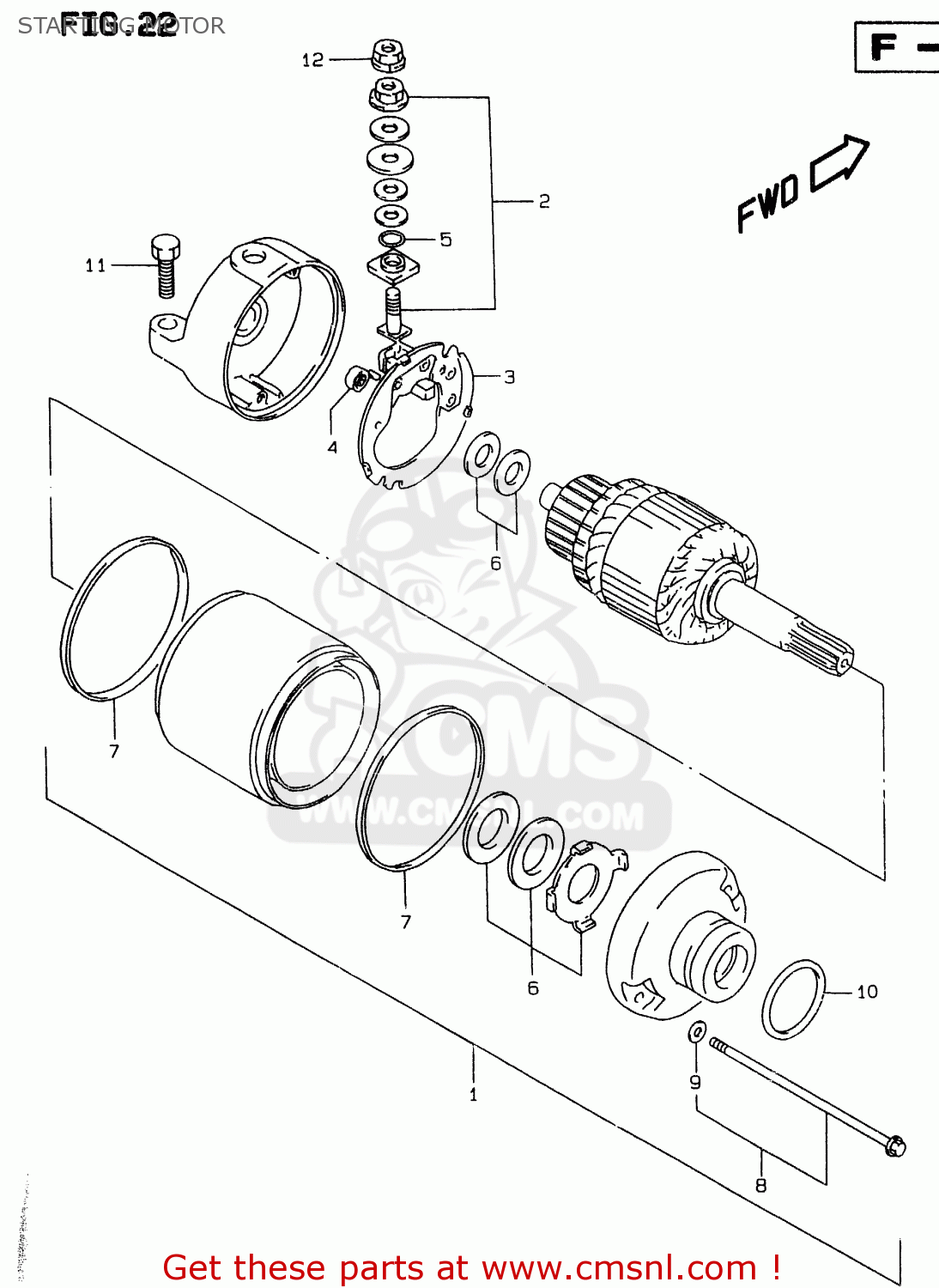

Starting motor diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3110033E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 451.50

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3113233E00
ref: 3

BRUSH HOLDER SET

€ 57.00

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

3114349040
ref: 5

O RING

€ 3.00

3117019B10
ref: 6

SHIM SET,STARTING MOTOR

€ 8.00

3126413E00
ref: 7

O RING

€ 6.00

3128013E00
ref: 8

BOLT

€ 16.50

3115613E00
ref: 9

O RING

€ 3.00

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

0912806024
ref: 11

SCREW (6X25)

€ 2.50

0836135068
ref: 12

NUT

€ 2.00
