HANDLE SWITCH

GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

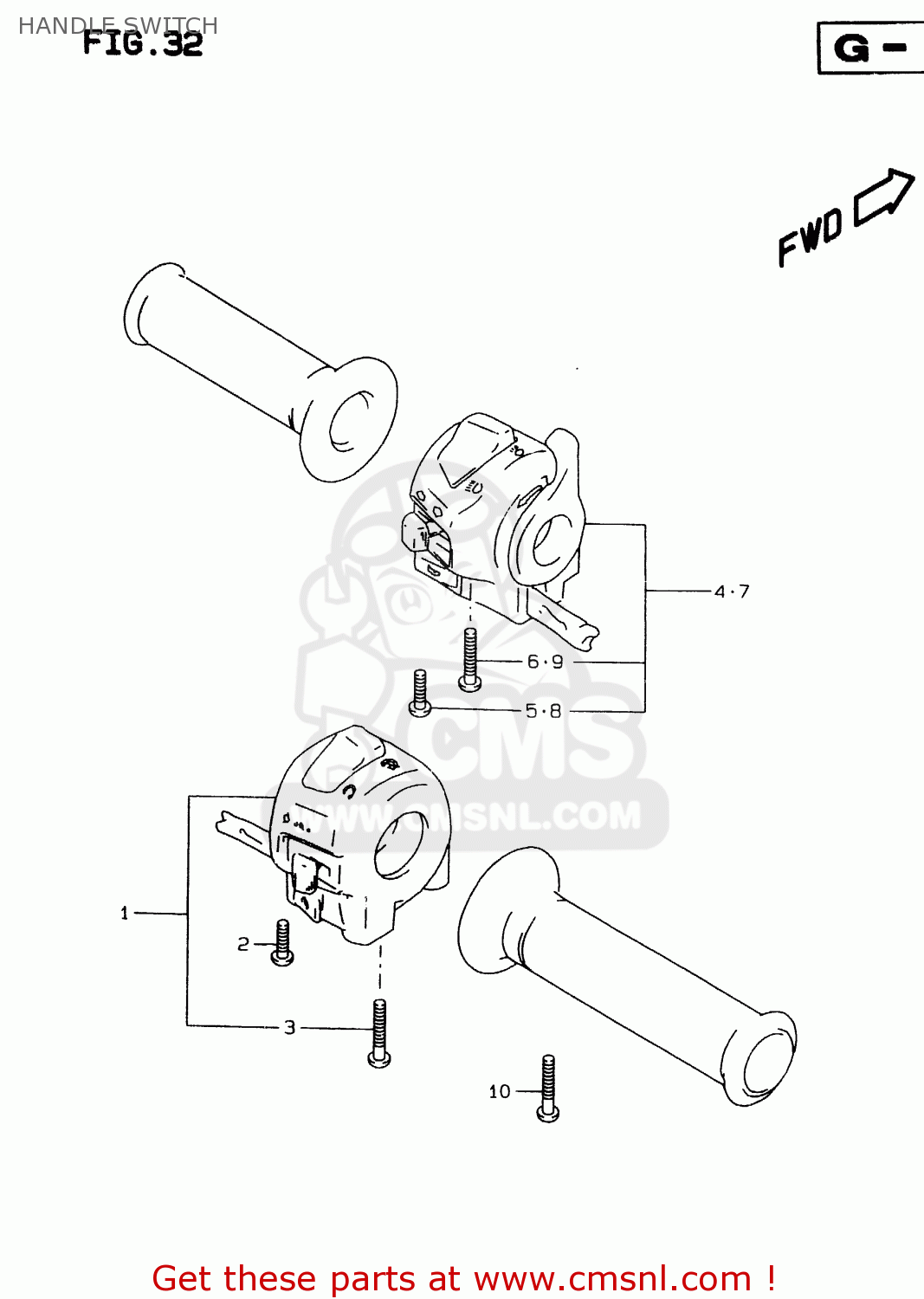

Handle switch diagram GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH GSXR750 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

3720027E10
ref: 1-1
MODEL T

SWITCH,HANDLE,

€ 176.00

1-2

3720027E11
ref: 1-2
MODEL V

SWITCH ASSY,HANDLE,R

€ 176.00

1-3

3720033E11
ref: 1-3
MODEL W

SWITCH,HANDLE,

€ 174.50

1-4

3720027E30
ref: 1-4
MODEL T E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 165.00

1-5

3720027E31
ref: 1-5
MODEL V E24

SWITCH ASSY,HANDLE,R

€ 165.00

1-6

3720033E31
ref: 1-6
MODEL W E24

SWITCH ASSY,HANDLE,R

€ 135.00

2

0211205305
ref: 2

SCREW

€ 1.50

3

0211205505
ref: 3

SCREW

€ 2.00

4

3740033E10
ref: 4
~F.NO. JS1GR7DA00050

SWITCH,HANDLE,

€ 209.50

5

0211205253
ref: 5
~F.NO. JS1GR7DA00050

SCREW

€ 1.50

6

0211205505
ref: 6
~F.NO. JS1GR7DA00050

SCREW

€ 2.00

7

3740033E11
ref: 7
F.NO. JS1GR7DA000500

SWITCH ASSY,HANDLE,L

€ 209.50

8

0211205253
ref: 8
F.NO. JS1GR7DA000500

SCREW

€ 1.50

9

0211205455
ref: 9
F.NO. JS1GR7DA000500

SCREW, 5X45

€ 4.00

10

0211205103
ref: 10

SCREW

€ 2.00
