BATTERY

RGV250 1989 (K) (E02 E04 E21 E24 E34)

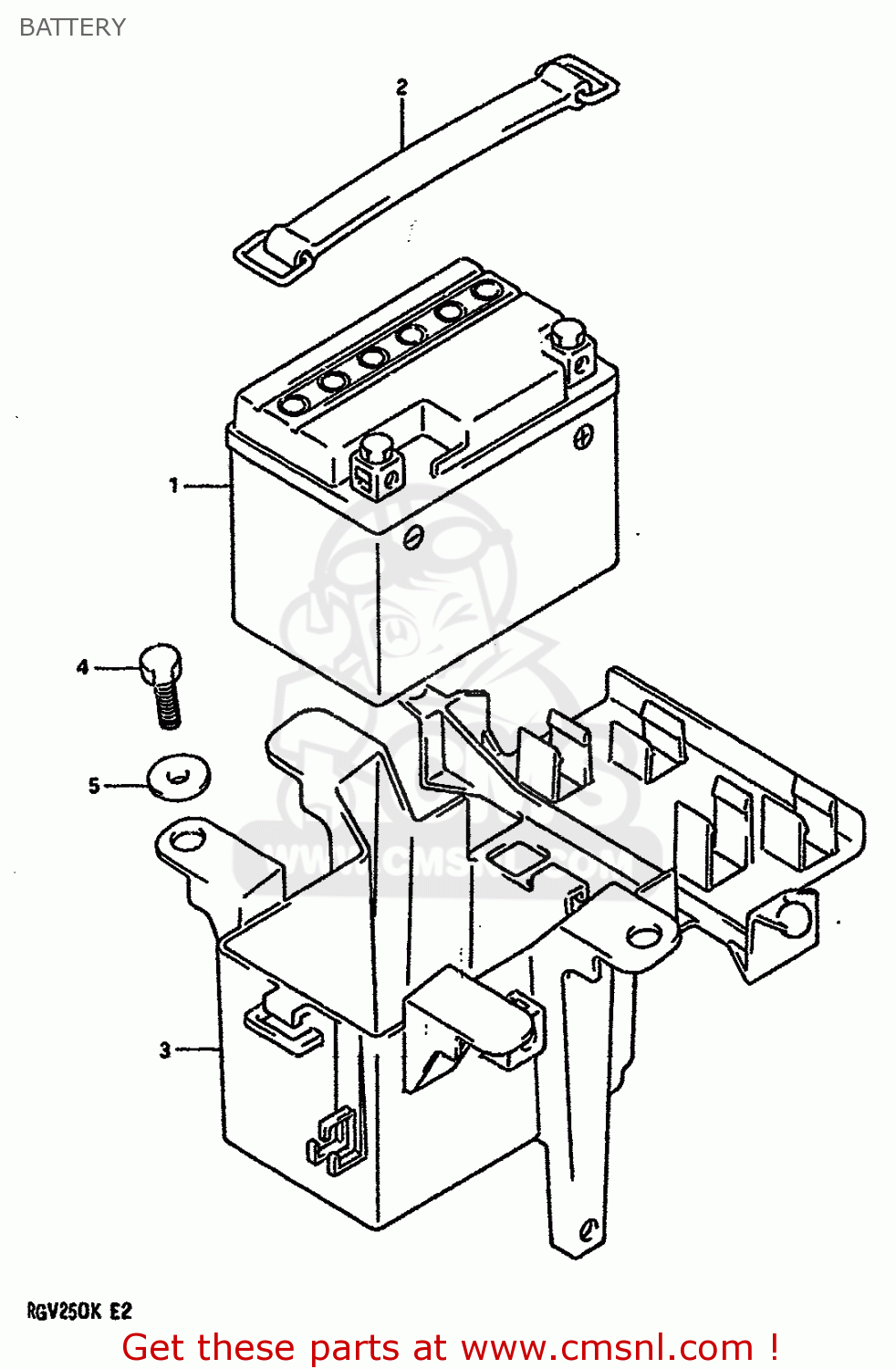

Battery diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)

BATTERY RGV250 1989 (K) (E02 E04 E21 E24 E34)

BATTERY RGV250 1989 (K) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3361012C10
ref: 1

BATTERY ASSY (12V3AH)

€ 40.00

2

3365110B00
ref: 2

BAND,BATTERY

€ 14.50

3

4154012C00
ref: 3

HOLDER,BATTERY

€ 36.00

4

0110706207
ref: 4

BOLT

€ 2.00

5

0916906031
ref: 5

WASHER

€ 2.00
