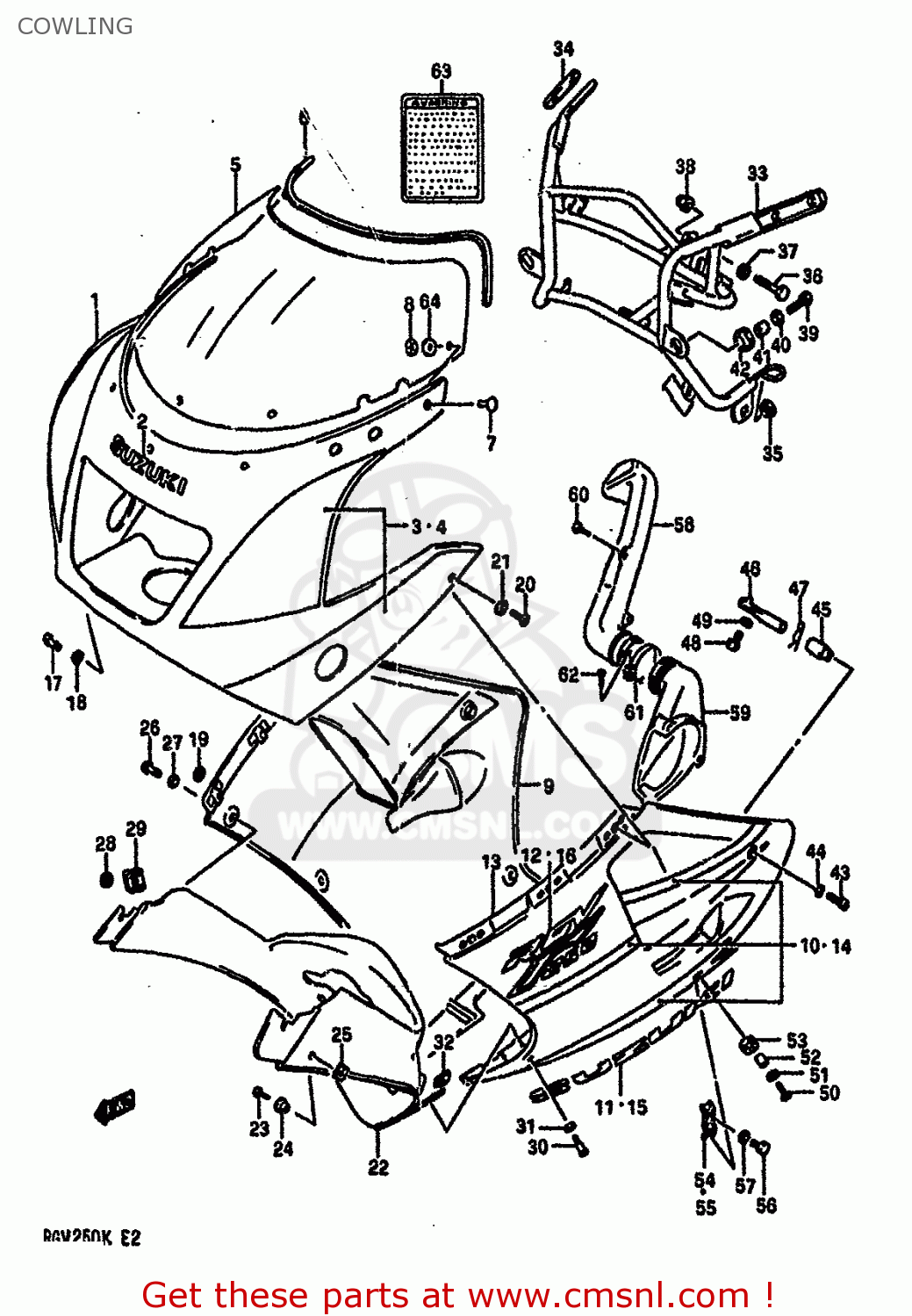

COWLING

ref

part #

description

quantity

1

9440012C4030H
ref: 1

COWLING ASSY (WHITE)

€ 370.00

2

6818505C1033N
ref: 2

EMBLEM

€ 10.00

3

6818612C0033N
ref: 3

TAPE SET,RH

€ 43.50

4

6818712C0033N
ref: 4

TAPE SET,LH

€ 39.00

5

9461112C00
ref: 5

WINDSCREEN

€ 227.50

6

9463112C00
ref: 6

MOULDING

€ 15.00

7

9461617C00
ref: 7

PIN,WINDSCREEN

€ 2.50

8

0914804010
ref: 8

NUT

€ 2.00

9

9440712C022FF
ref: 9
BLUE/BLUE

COWLING ASSY,UNDER RH

€ 654.50

10

6819012C0030H
ref: 10

TAPE SET,RH

€ 57.50

11

6819112C00064
ref: 11

EMBLEM

€ 19.50

12

6819212C002FW
ref: 12

EMBLEM,UNDER

€ 16.00

13

9440812C002FF
ref: 13
BLUE/BLUE

COWLING ASSY,UNDER LH

€ 654.50

14

6827012C0130H
ref: 14

TAPE SET,LH

€ 61.50

15

6819112C00064
ref: 15

EMBLEM

€ 19.50

16

6819212C002FW
ref: 16

EMBLEM,UNDER

€ 16.00

17

9447212C00
ref: 17

STUD

€ 7.00

18

0916107009
ref: 18

WASHER(7X13X0.6)

€ 3.00

19

9447312C00
ref: 19

RETAINER

€ 2.00

20

0913905044
ref: 20

SCREW(5X16)

€ 5.00

21

0916107009
ref: 21

WASHER(7X13X0.6)

€ 3.00

22

9449012C0030H
ref: 22

COWLING,UNDER CENTER (WHITE)

€ 146.00

23

0324205165
ref: 23

SCREW

€ 1.50

24

0916105017
ref: 24

WASHER(5.2X14X1.5)

€ 3.00

25

0914805013
ref: 25

NUT

€ 1.50

26

9447212C00
ref: 26

STUD

€ 7.00

27

0916107009
ref: 27

WASHER(7X13X0.6)

€ 3.00

28

9447312C00
ref: 28

RETAINER

€ 2.00

29

9449312C00
ref: 29

RECEPTACLE

€ 6.50

30

0913905043
ref: 30

SCREW(5X16)

€ 5.00

31

0916107009
ref: 31

WASHER(7X13X0.6)

€ 3.00

32

9448432B00
ref: 32

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

33

9451012C11
ref: 33

BRACE,COWLING

€ 198.50

34

9457612C00
ref: 34

CUSHION,RR VIEW MIRRORR

€ 4.50

35

0925012004
ref: 35

CAP(OD:17)

€ 2.50

36

0110708355
ref: 36

BOLT

€ 3.50

37

0832121084
ref: 37

WASHER,LOCK,8.

€ 2.50

38

0831321085
ref: 38

NUT ,8MM

€ 2.50

39

0110706205
ref: 39

BOLT

€ 2.00

40

0916006038
ref: 40

WASHER

€ 2.00

41

0918006114
ref: 41

SPACER (6.1X9X10)

€ 3.00

42

0932008047
ref: 42

CUSHION

€ 4.00

43

0913906053
ref: 43

SCREW(6X18)

€ 4.50

44

0916006053
ref: 44

WASHER

€ 2.00

45

9452012C00
ref: 45

PLUG,UNDER COWL FTG,CTR

€ 9.00

46

9452212C00
ref: 46

PIPE,UNDER COWL FTG CTR

€ 8.00

47

9452312C00
ref: 47

PIN,UNDER COWLING FITTING PIPE

€ 2.50

48

0110706165
ref: 48

BOLT 6X16

€ 2.00

49

0832121064
ref: 49

WASHER,LOCK

€ 2.00

50

0913906053
ref: 50

SCREW(6X18)

€ 4.50

51

0916006056
ref: 51

WASHER(6.5X18X1)

€ 2.00

52

0918006114
ref: 52

SPACER (6.1X9X10)

€ 3.00

53

0932009016
ref: 53

CUSHION

€ 2.50

54

9474012C00
ref: 54

BRACKET,UNDER LOWER RH

€ 6.50

55

9475012C00
ref: 55

BRACKET,UNDER LOWER LH

€ 124.50

56

0110706205
ref: 56

BOLT

€ 2.00

57

0832121064
ref: 57

WASHER,LOCK

€ 2.00

58

9445412C00
ref: 58

BODY,AIR DUCT COWLING NO.1

€ 29.50

59

9445512C00
ref: 59

BODY,AIR DUCT COWLING NO.2

€ 24.00

60

0214205124
ref: 60

SCREW, FRONT & REAR

€ 1.50

61

0940236403
ref: 61

CLAMP

€ 4.50

62

0321104255
ref: 62

SCREW 4X25

€ 2.00

63-1

6861248B00
ref: 63-1

LABEL (WARNING SCREEN)

€ 6.50

63-2

6861248B10
ref: 63-2
E4

LABEL (WARNING SCREEN)

€ 6.50

64

0932004007
ref: 64

CUSHION

€ 3.00
