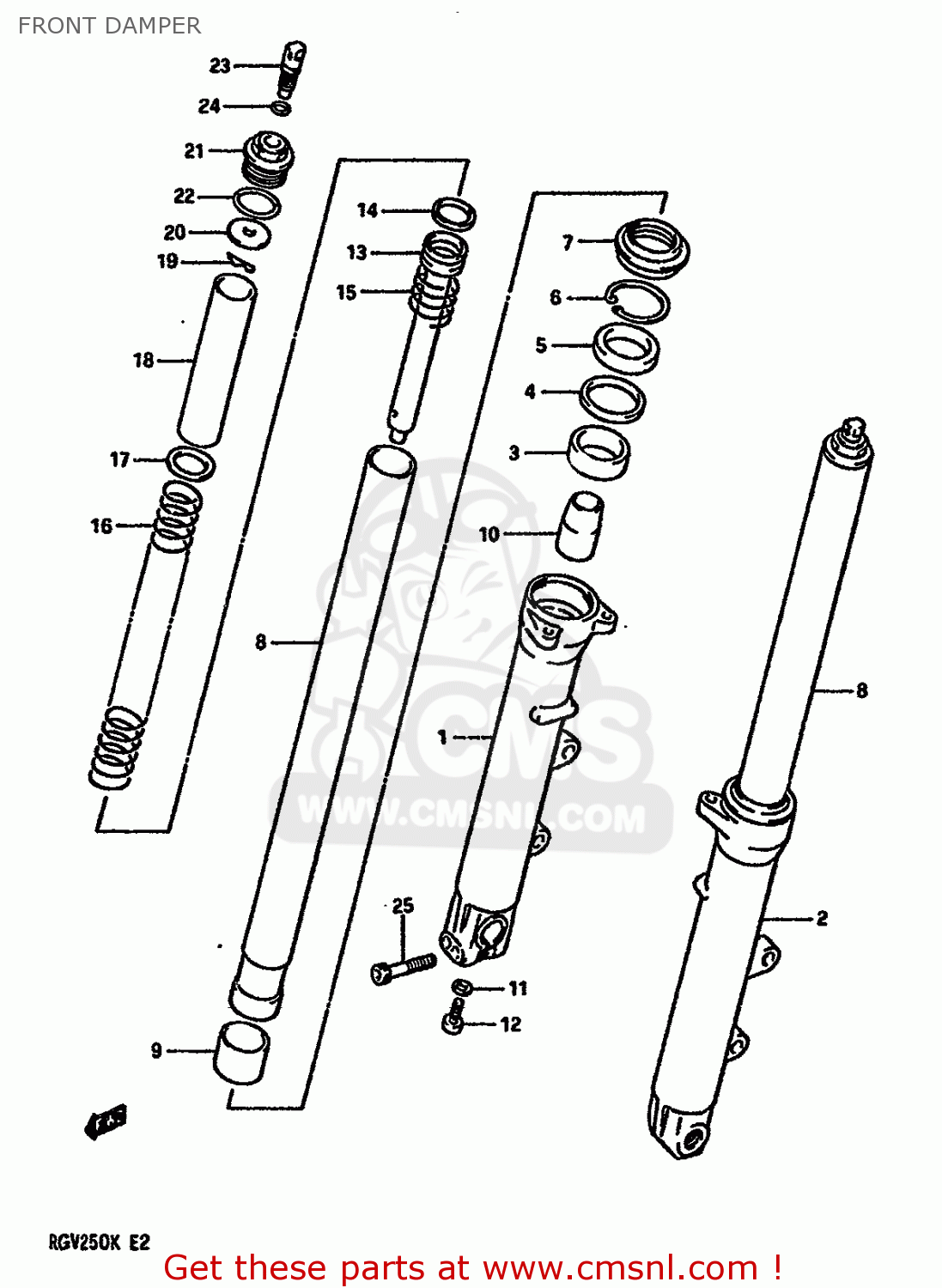

FRONT DAMPER

ref

part #

description

quantity

0

5110312C00
ref: 0

DAMPER ASSY,RH

€ 645.00

0

5110412C00
ref: 0

DAMPER ASSY,LH

€ 645.00

1

5113012C00
ref: 1

TUBE,OUTER RH

€ 311.00

2

5114012C00
ref: 2

TUBE,OUTER LH

€ 311.00

3

5115248B31
ref: 3

BUSH,GUIDE

€ 20.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115312C00
ref: 5

OIL SEAL,FRONT FORK

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157138B00
ref: 7

BOOT

€ 19.50

8

5111012C00
ref: 8

TUBE,INNER

€ 300.00

9

5112148B31
ref: 9

BUSH,SLIDE

€ 15.50

10

5119548B31
ref: 10

PIECE,OIL LOCK

€ 19.00

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

5114748130
ref: 12

BOLT(8X27)

€ 3.50

13

5114612C00
ref: 13

CYLINDER

€ 45.00

14

5119612C00
ref: 14

RING,PISTON

€ 5.50

15

5117712C00
ref: 15

SPRING,REBOUND

€ 8.00

16

5117112C00
ref: 16

SPRING

€ 41.00

17

5119219C00
ref: 17

JOINT,SPRING

€ 3.50

18

5117612C00
ref: 18

SPACER,SPRING

€ 11.00

19

5118832B00
ref: 19

PIN,SEAT SPRING

€ 3.50

20

5118612C00
ref: 20

SEAT,SPRING

€ 3.50

21

5118912C00
ref: 21

BOLT,FORK

€ 38.50

22

5111712C00
ref: 22

O RING

€ 3.00

23

5118532B00
ref: 23

BOLT

€ 35.50

24

5118732B00
ref: 24

RING

€ 4.00

25

5114712C00
ref: 25

BOLT,AXLE HOLDER RH

€ 3.50
