MAGNETO

RGV250 1989 (K) (E02 E04 E21 E24 E34)

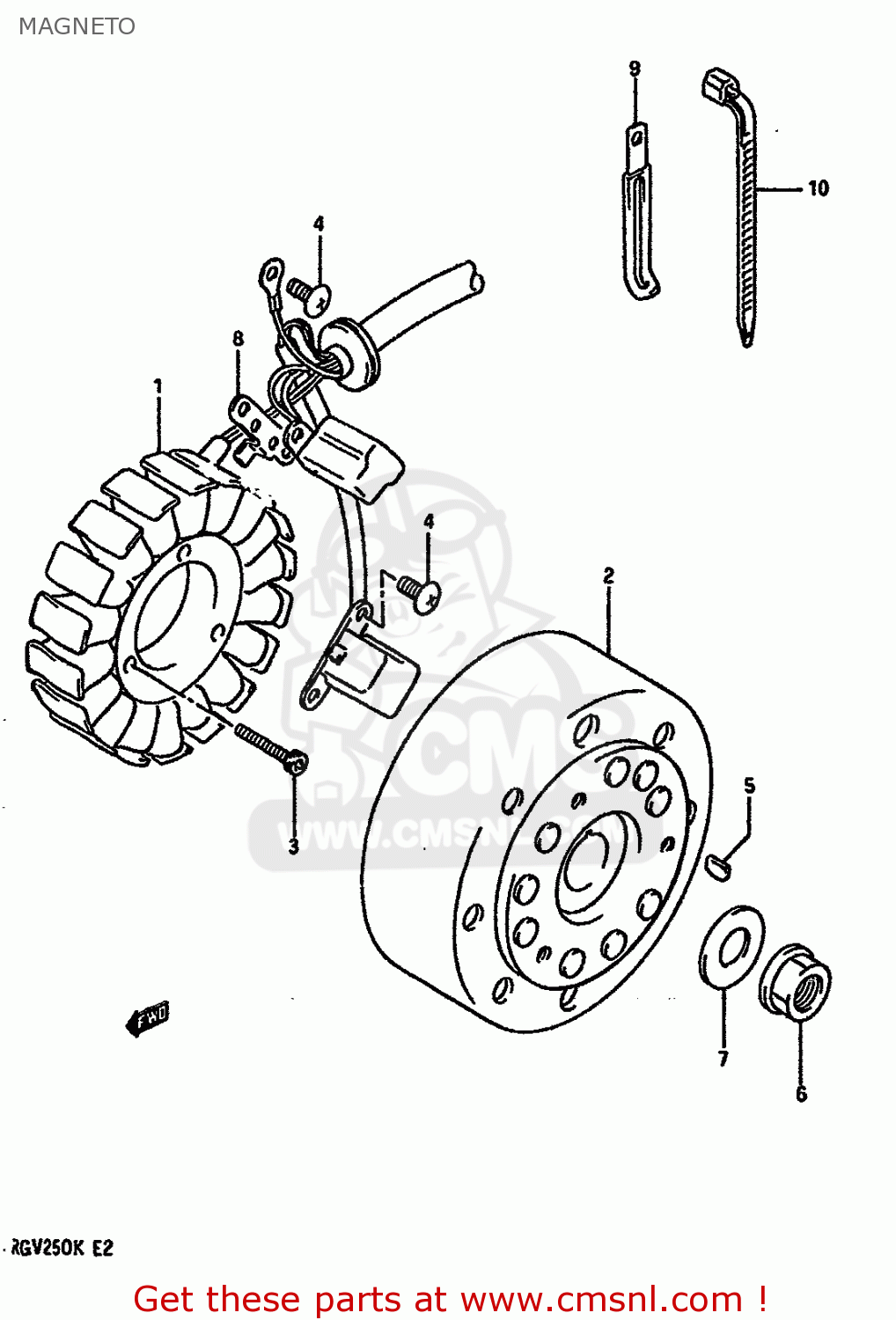

Magneto diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)

MAGNETO RGV250 1989 (K) (E02 E04 E21 E24 E34)

MAGNETO RGV250 1989 (K) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3210112C01
ref: 1

STATOR ASSY

€ 439.50

2

3210212C01
ref: 2

ROTOR

€ 319.50

3

3235112C01
ref: 3
5X22

BOLT,MAGNETO STATOR

€ 1.50

4

3215612C00
ref: 4
5X10

SCREW

€ 2.50

5

0834131039
ref: 5

KEY

€ 2.00

6

0831616128
ref: 6

NUT

€ 2.50

7

0916012051
ref: 7

WASHER(12X27X2)

€ 1.50

8

3215512C00
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 0.00

9

0940406403
ref: 9

CLAMP

€ 2.50

10

0940718402
ref: 10

CLAMP(L:165)

€ 2.50
