FRONT BRAKE HOSE

RGV250 1989 (K) (E02 E04 E21 E24 E34)

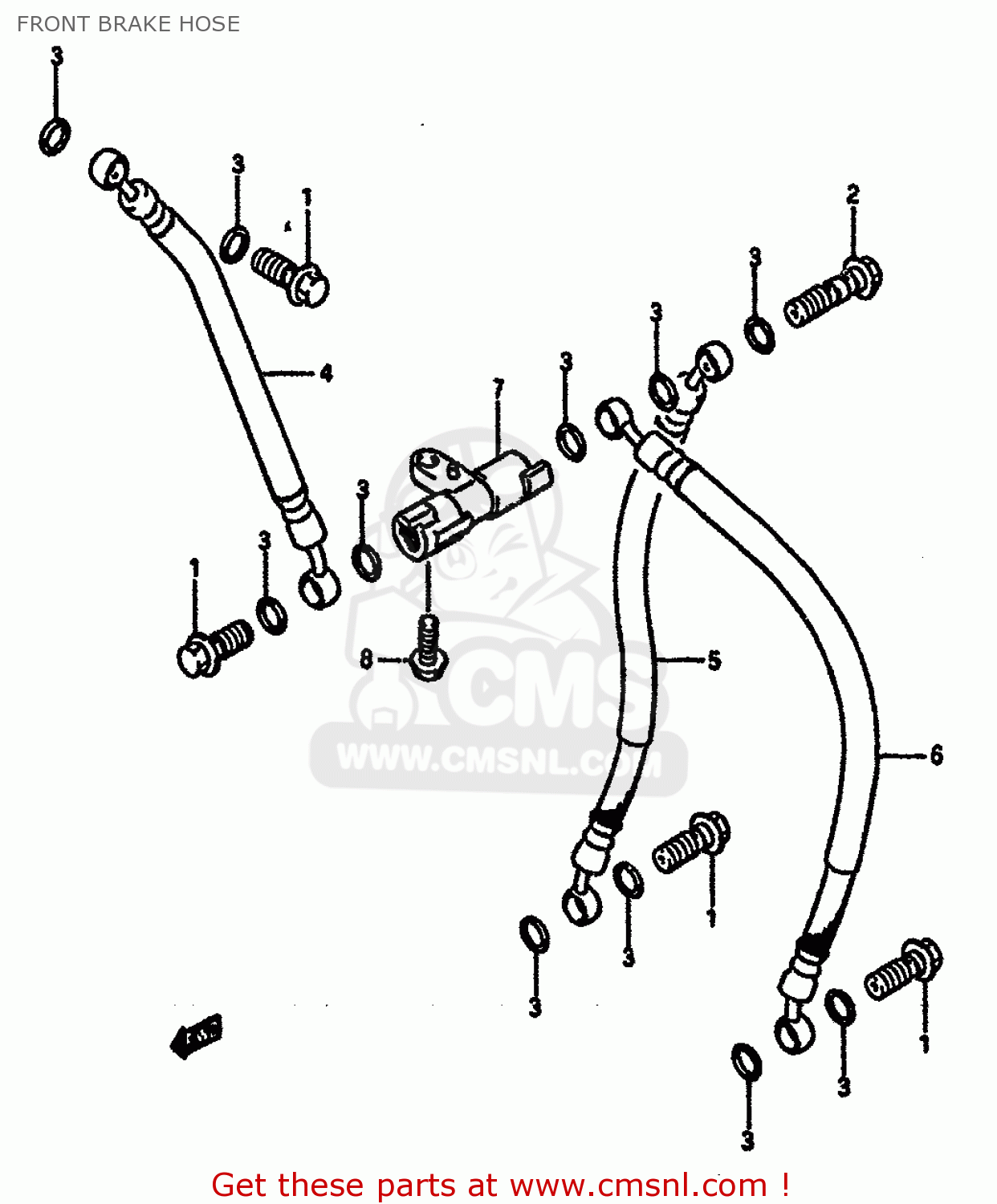

Front brake hose diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)

FRONT BRAKE HOSE RGV250 1989 (K) (E02 E04 E21 E24 E34)

FRONT BRAKE HOSE RGV250 1989 (K) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

0936010017
ref: 1

BOLT UNION

€ 6.50

2

0936010018
ref: 2

BOLT UNION

€ 7.00

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948012C00
ref: 4

HOSE,FRONT BRAKE NO.1

€ 41.50

5

5924012C00
ref: 5

HOSE,FRONT BRAKE NO.2 RH

€ 59.00

6

5944012C00
ref: 6

HOSE,FRONT BRAKE NO.2 LH

€ 62.00

7

5949112C00
ref: 7

JOINT,BRAKE HOSE

€ 25.50

8

0151706167
ref: 8

BOLT 6X16

€ 1.50
